Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor

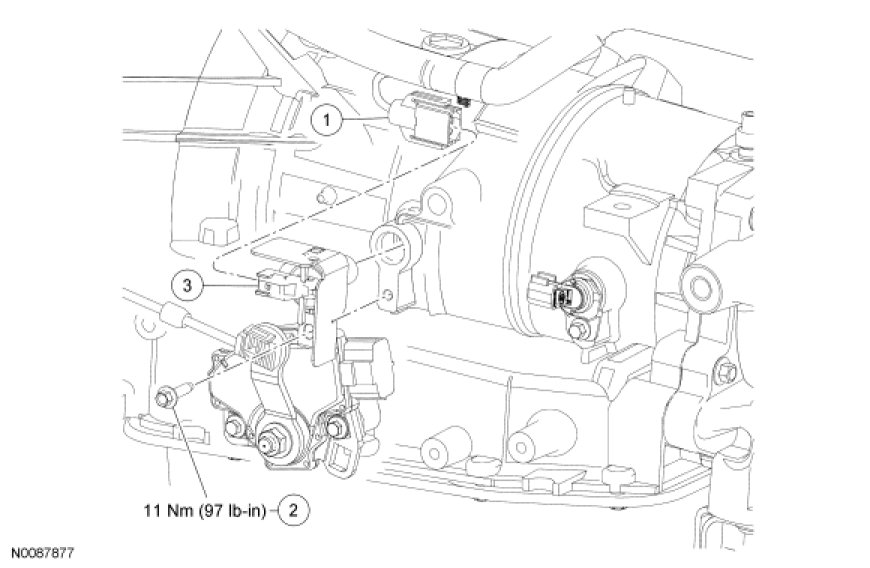

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

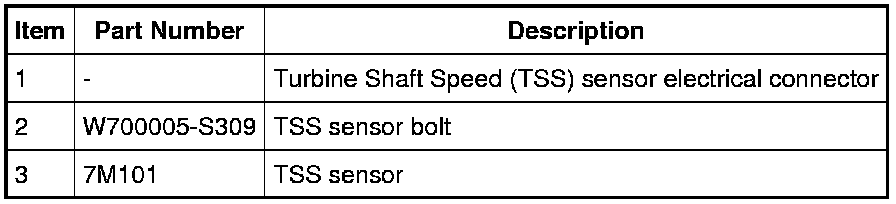

2. Disconnect the Turbine Shaft Speed (TSS) sensor electrical connector.

3. Remove the TSS sensor bolt and sensor.
- Remove the TSS sensor bolt.

- Remove the TSS sensor.

4. To install, reverse the removal procedure.
- Tighten bolt to 11 Nm (97 lb-in).
