Piston, Engine

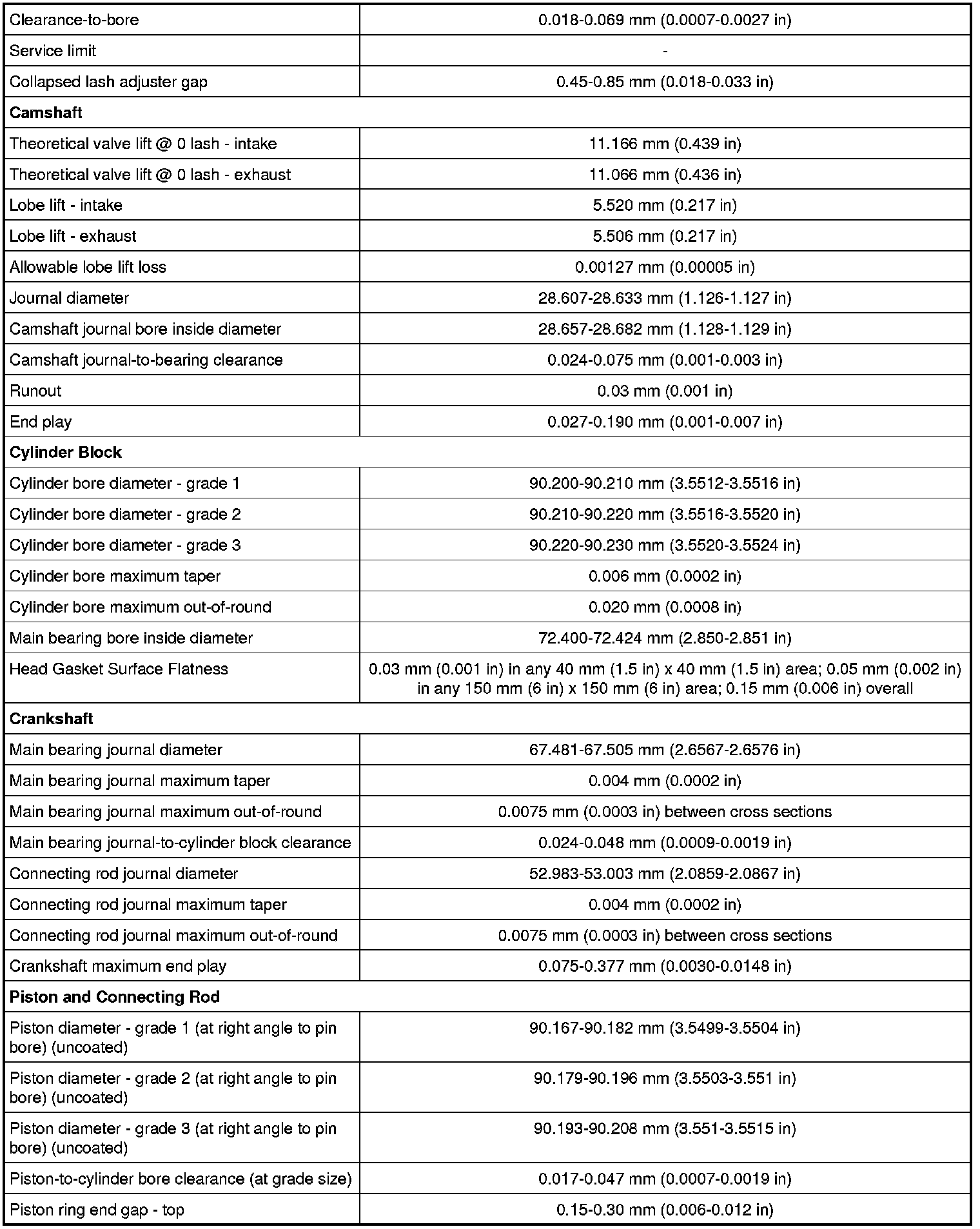

General Specifications (Part 1):

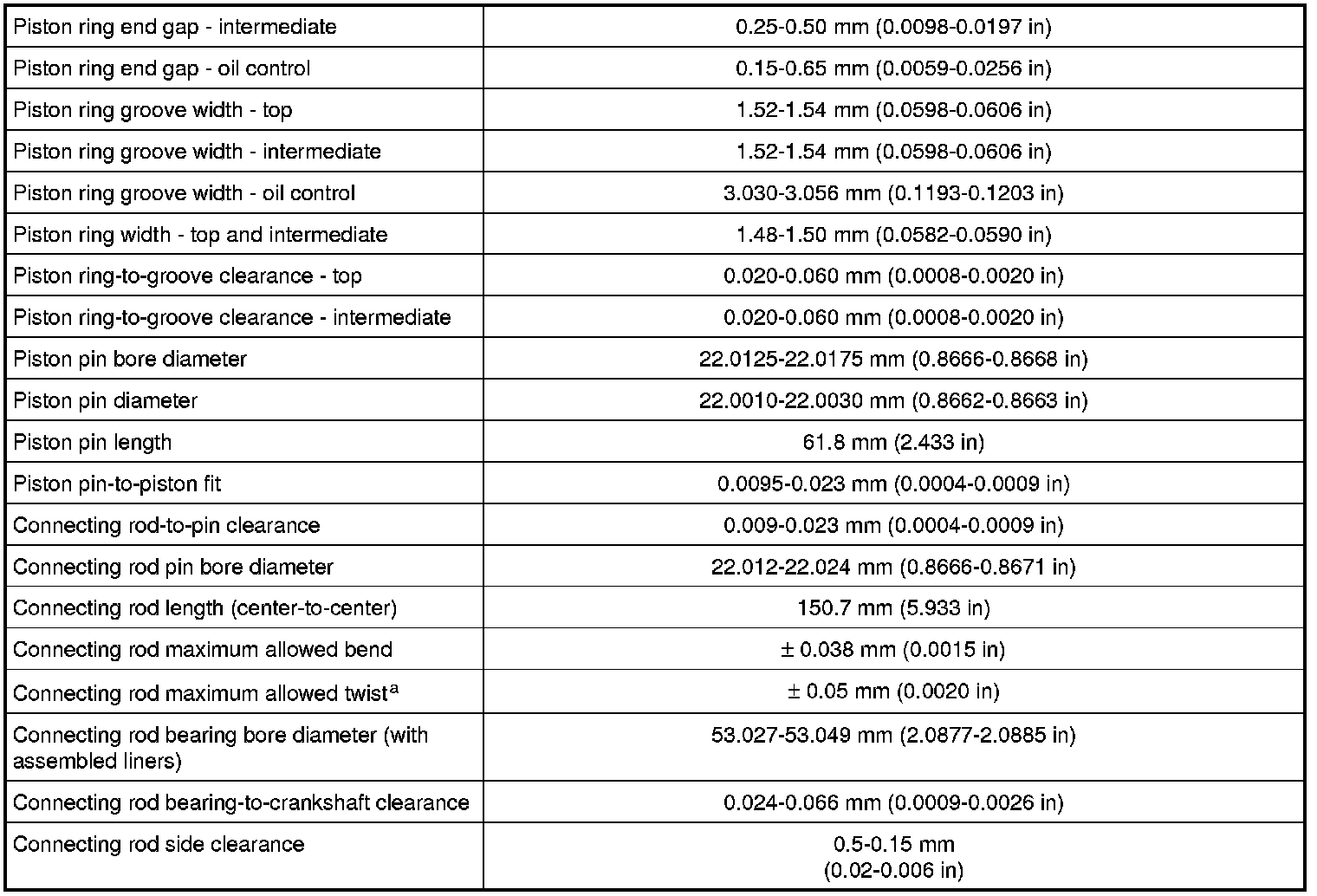

General Specifications (Part 2):

General Specifications (Part 3):

a The pin bore and crank bearing bore must be parallel and in the same vertical plane within the specified total difference when measured at the ends of a 203 mm bar, 105.5 mm on each side of rod centerline.
