Intake Manifold

Intake Manifold

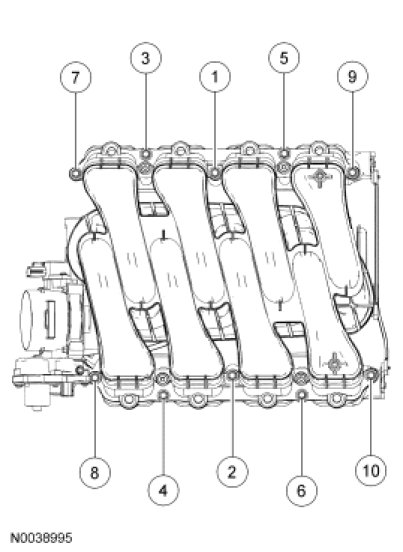

Install the 10 intake manifold bolts and tighten the bolts in the sequence shown in 2 stages.
- Stage 1: Tighten to 2 Nm (18 lb-in).
- Stage 2: Tighten to 10 Nm (89 lb-in)

Throttle Body
Tighten the throttle Body (TB) bolts.
- Tighten to 10 Nm (89 lb-in)
