Alternator: Service and Repair

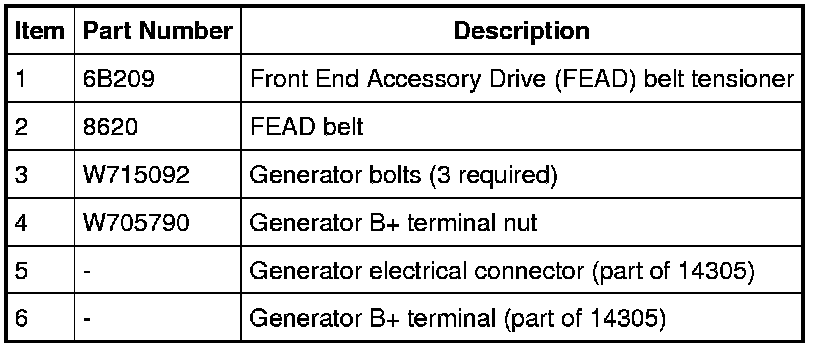

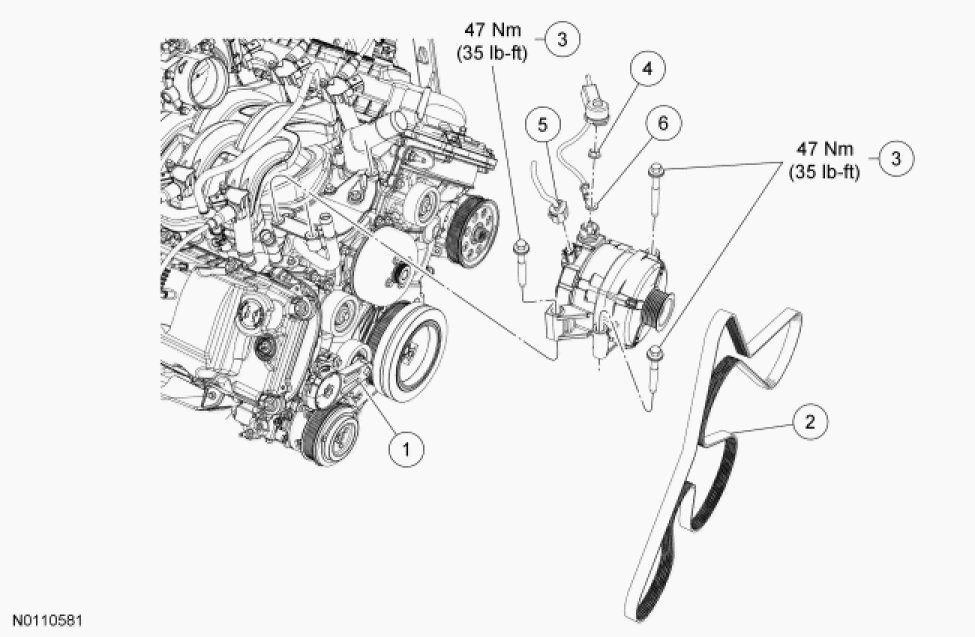

Generator - 6.2L (2V)









1. Disconnect the battery. For additional information, refer to Battery.

2. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to Fuel Delivery and Air Induction.

3. Rotate the Front End Accessory Drive (FEAD) belt tensioner clockwise and position the FEAD belt aside.

4. Disconnect the generator electrical connector.

5. Position the generator B+ protective boot aside, remove the generator B+ nut and terminal and remove the generator.
- To install, tighten to 17 Nm (150 lb-in).

6. Remove the 3 bolts and the generator.
- To install, tighten to 47 Nm (35 lb-ft).

7. To install, reverse the removal procedure.
