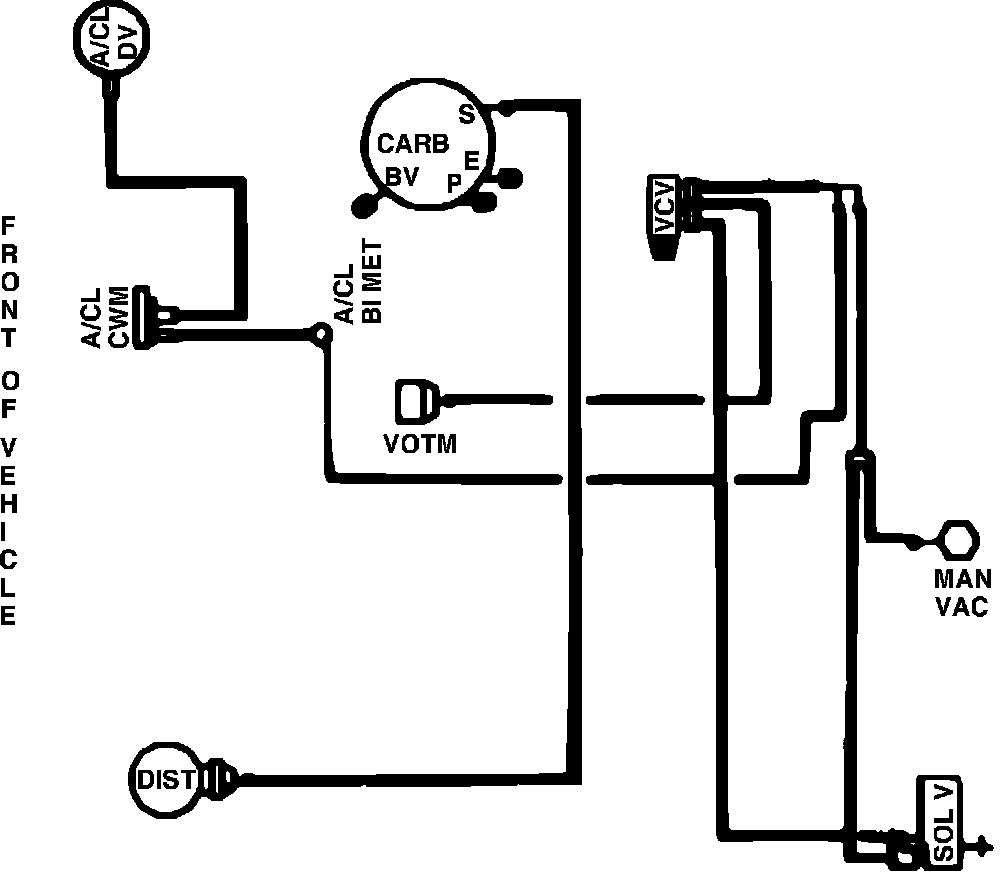

Fig. 19 Calib. Code 2-03G-R01 With A/C, Exc. High Alt.
Fig. 19 Calib. Code 2-03G-R01 With A/C, Exc. High Alt.
Vacuum hose routing:
