Home
>>
Ford
>>
1982
>>
Thunderbird V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

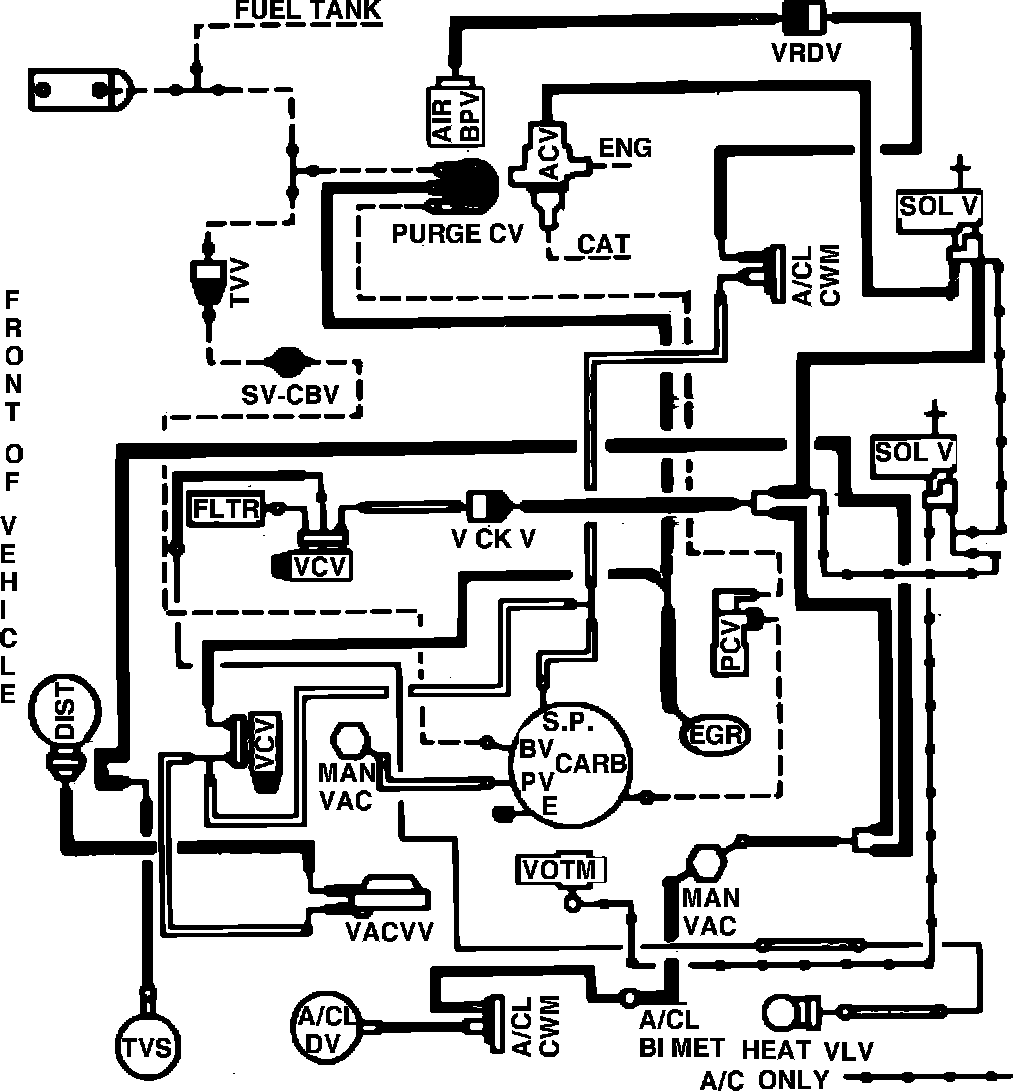

Fig. 54 Calib. Code 2-14E-R0 Federal, Exc. High Alt.
Fig. 54 Calib. Code 2-14E-R0 Federal, Exc. High Alt.
Vacuum hose routing:
