Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

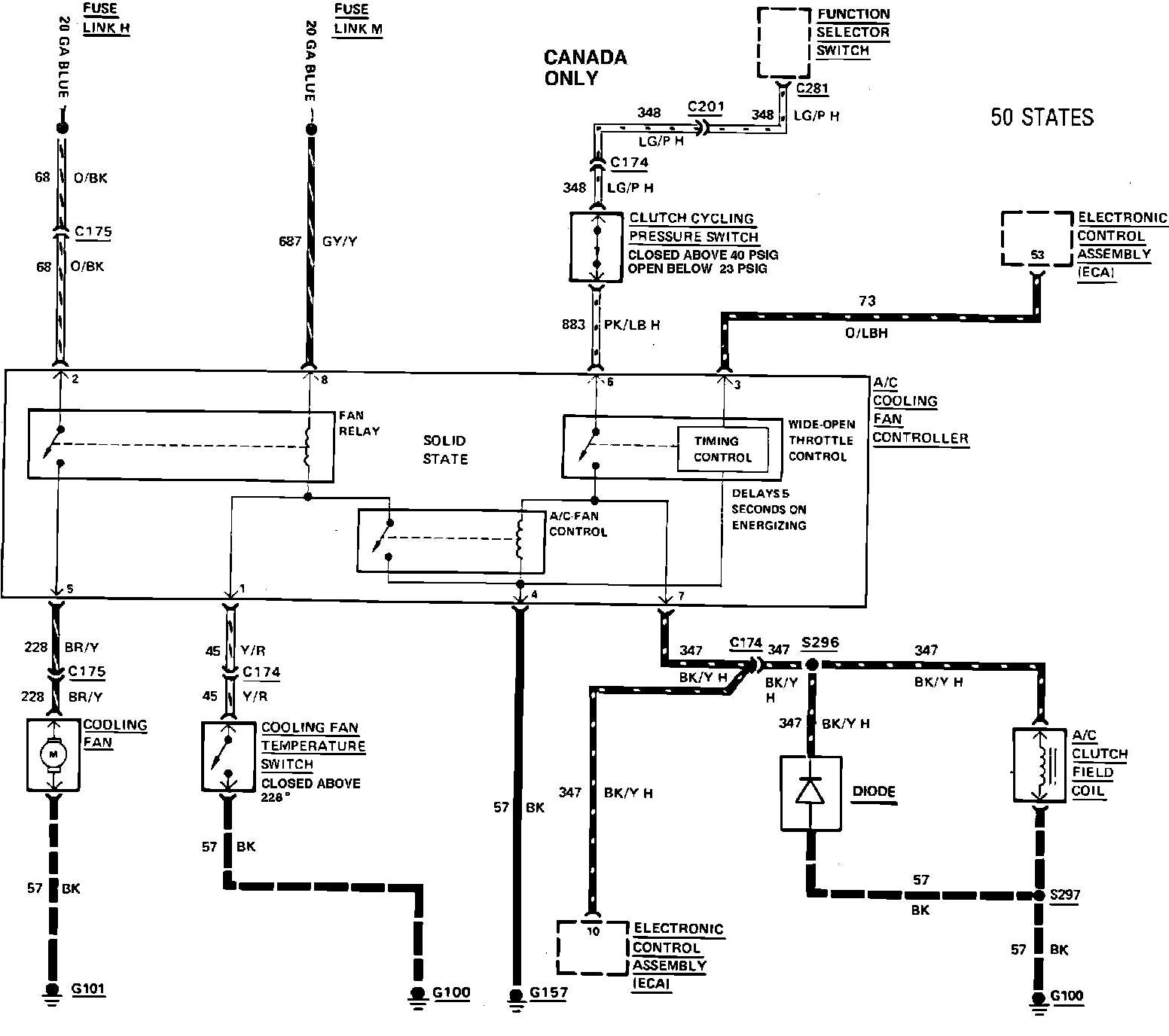

50 States - Cooling Fan Wiring Circuit. 1985 4 Cylinder Federal:

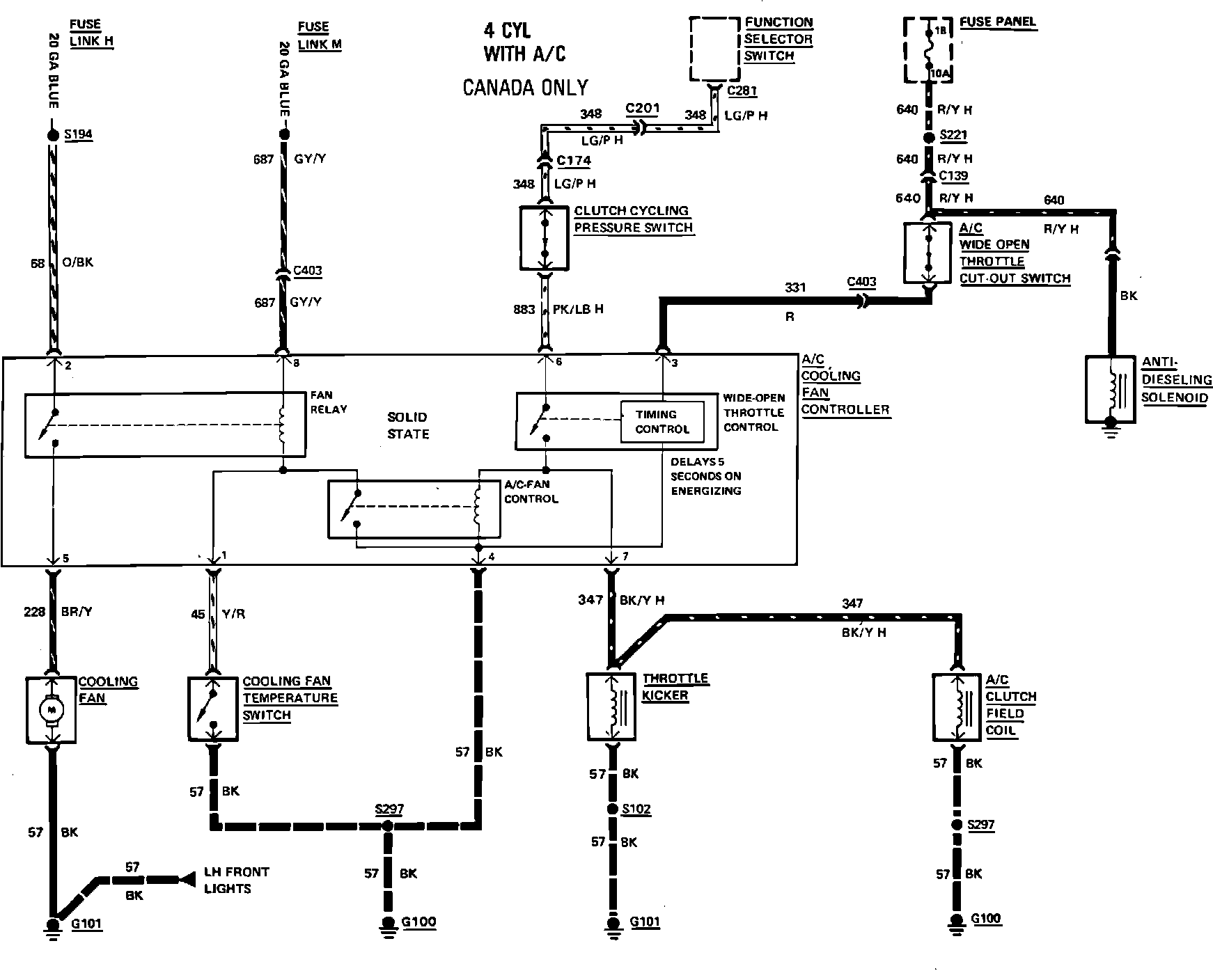

Canada - Cooling Fan Wiring Circuit. 1985 4 Cylinder Exc. Federal:
