Escort L4-122 2.0L DSL VIN H FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
System Diagram

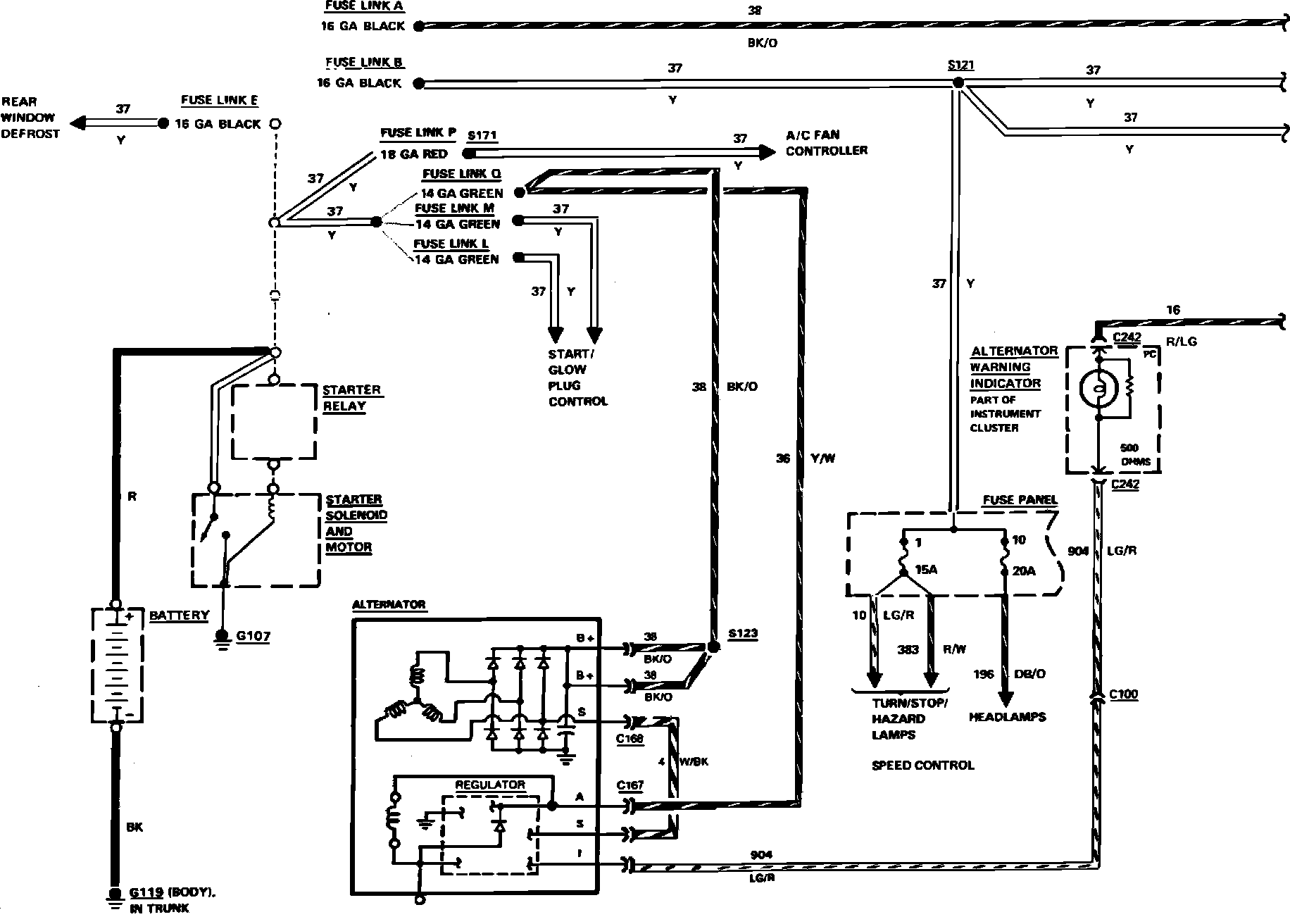

Fig. 9 Charge & Power Distribution Wiring Circuit (Part 1 of 2). Diesel Engine:

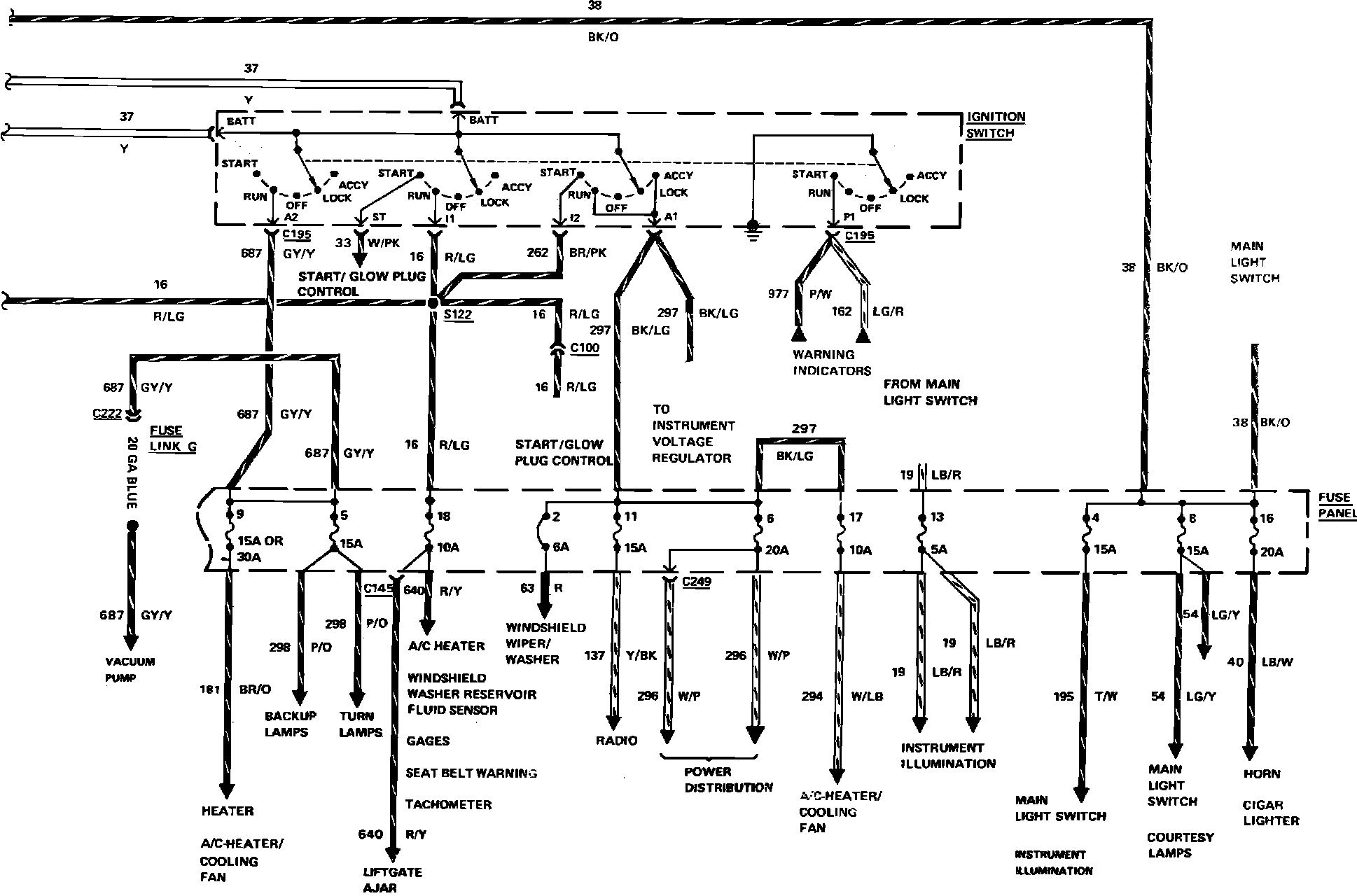

Fig. 9 Charge & Power Distribution Wiring Circuit (Part 2 of 2). Diesel Engine:
