Home >> Ford >> 1987 >> Thunderbird L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> AA Anti-Lock Brake Control Module

AA Anti-Lock Brake Control Module

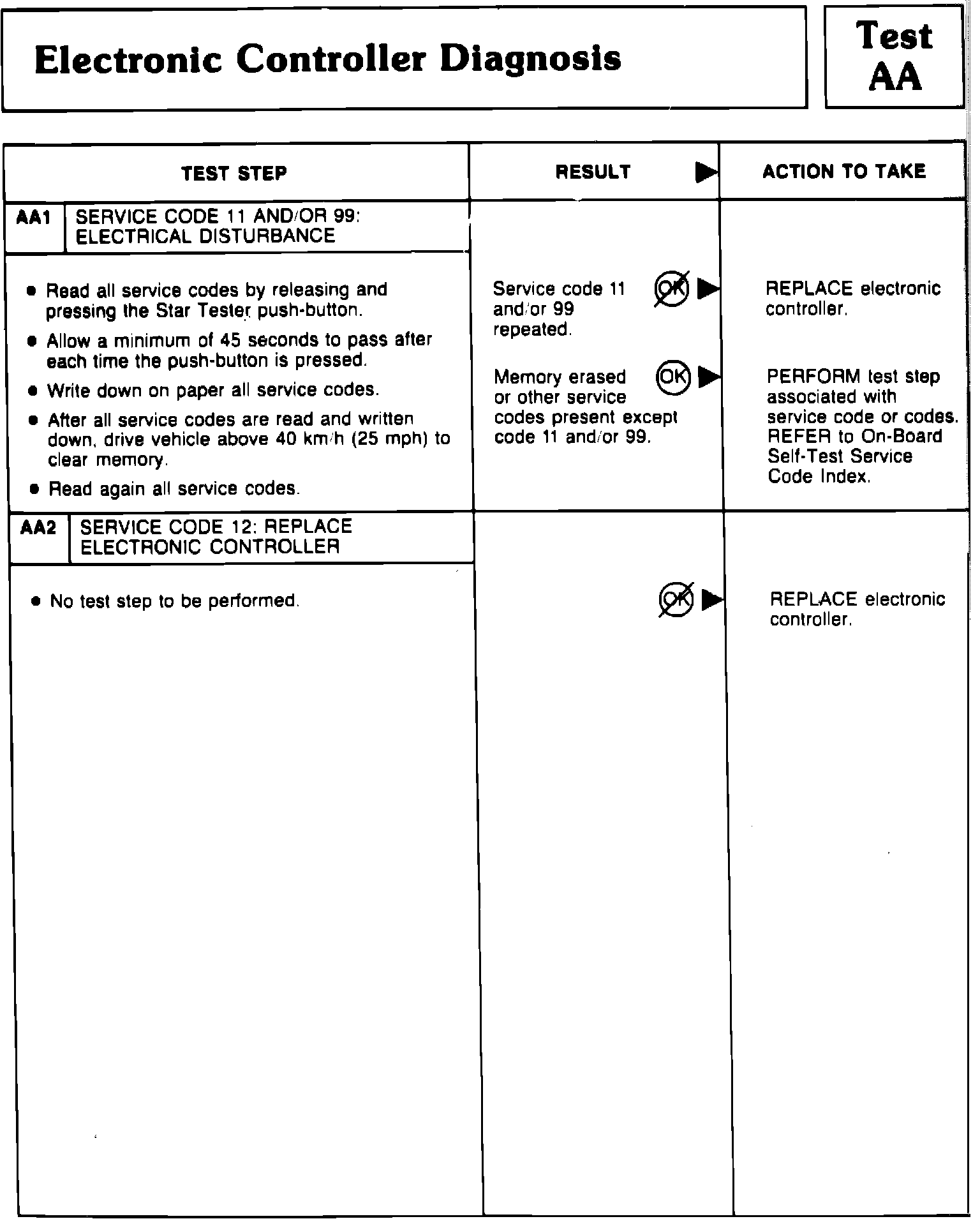

Fig. 47 Electronic controller diagnosis.:
