Engine Controls

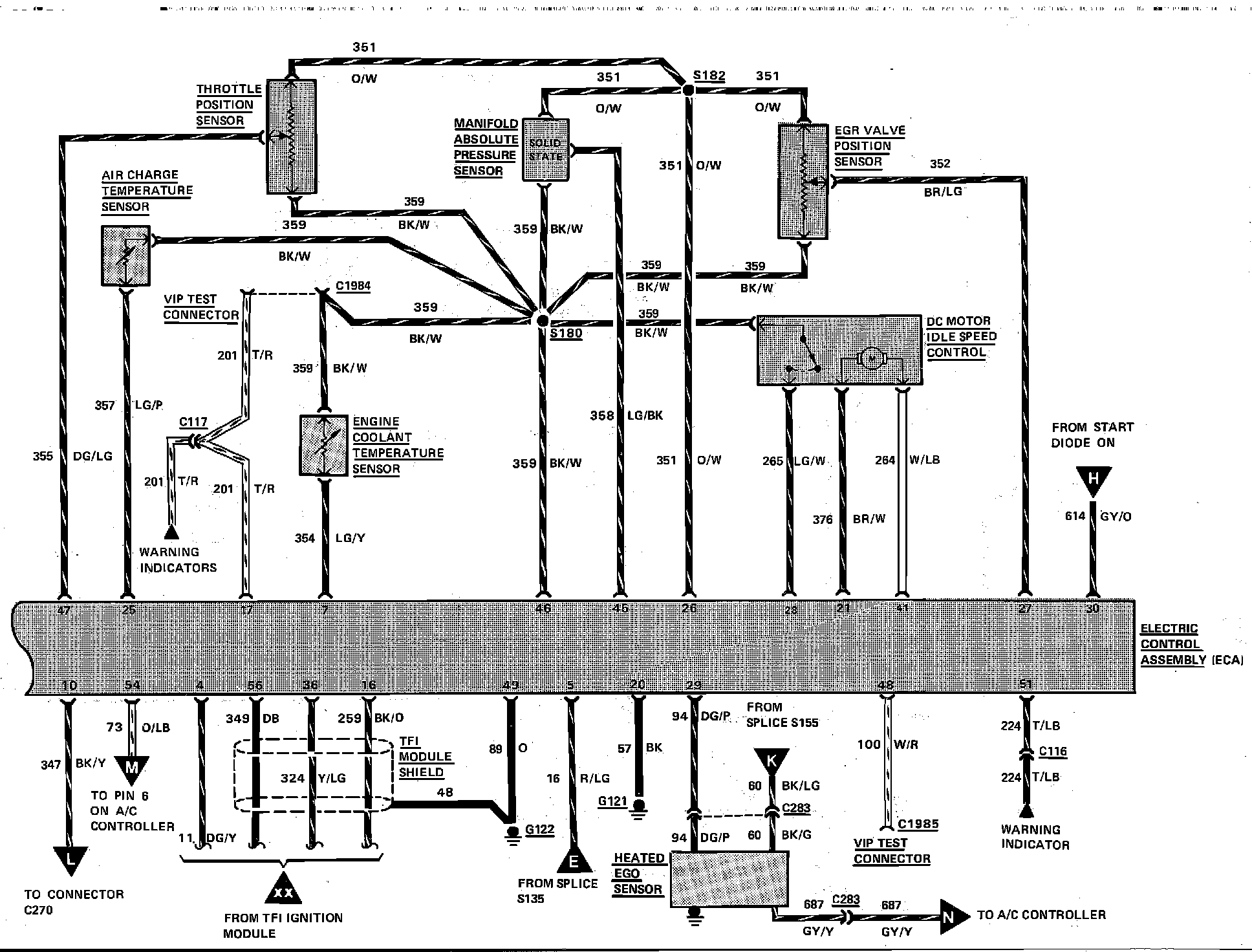

Electronic Engine Control System Wiring Circuit (Part 1 of 2) With CFI:






Electronic Engine Control System Wiring Circuit (Part 2 of 2) With CFI:

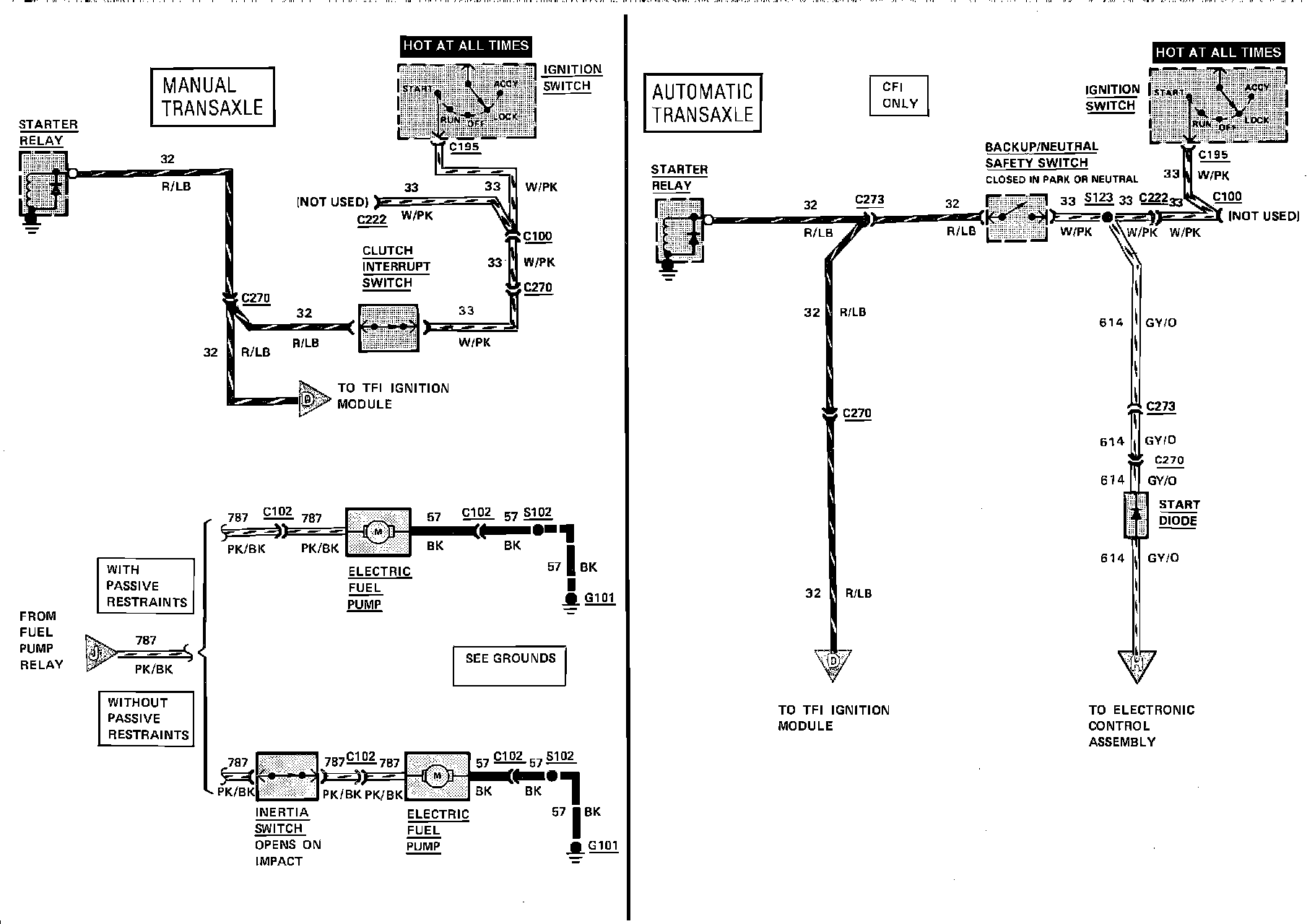

Ignition & Starter Wiring Circuit CFI:
