Power and Ground Distribution
>>
Fuse Block
>>
Locations
Fuse Block: Locations

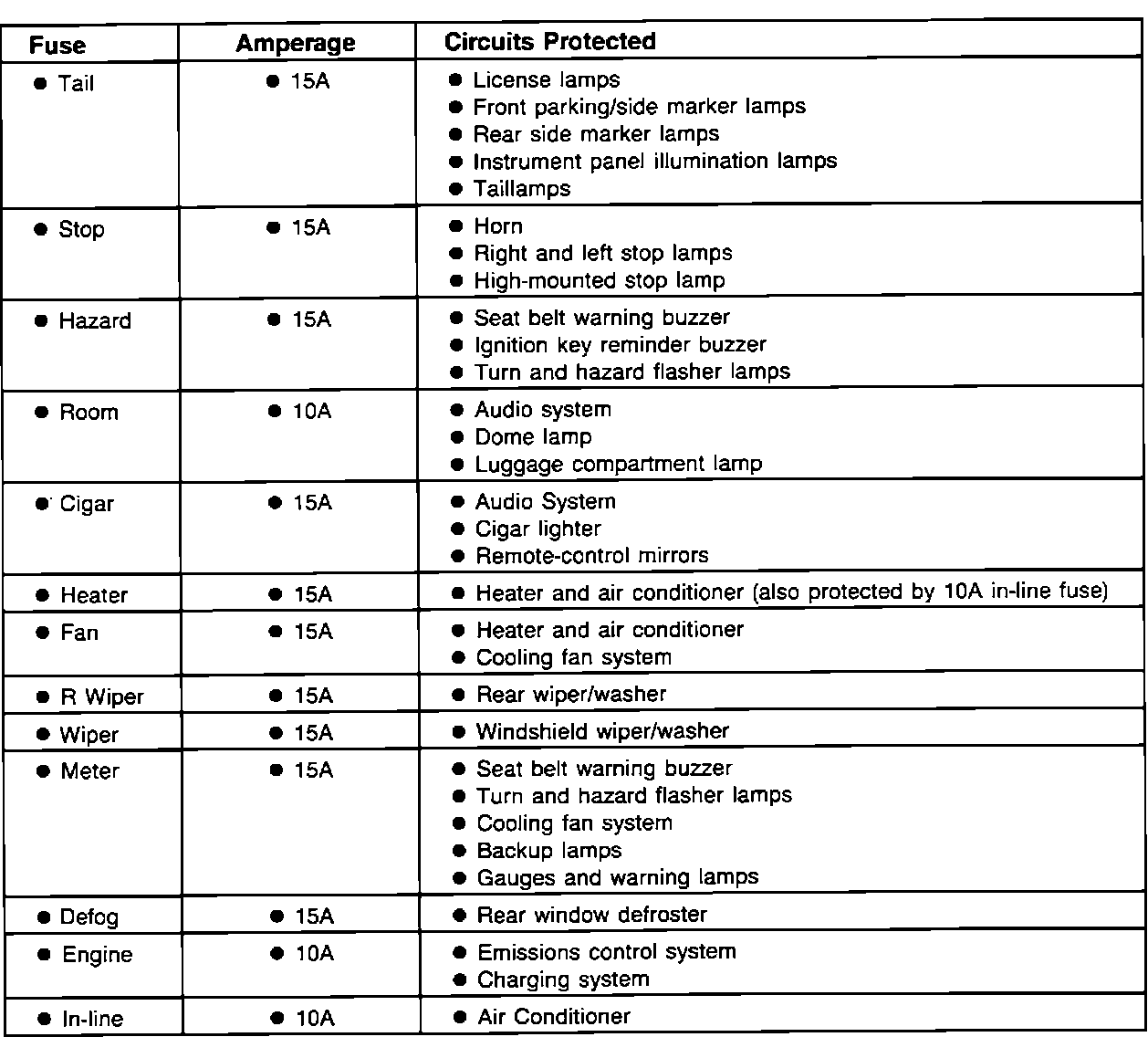

Fuse Panel Circuit Protection:

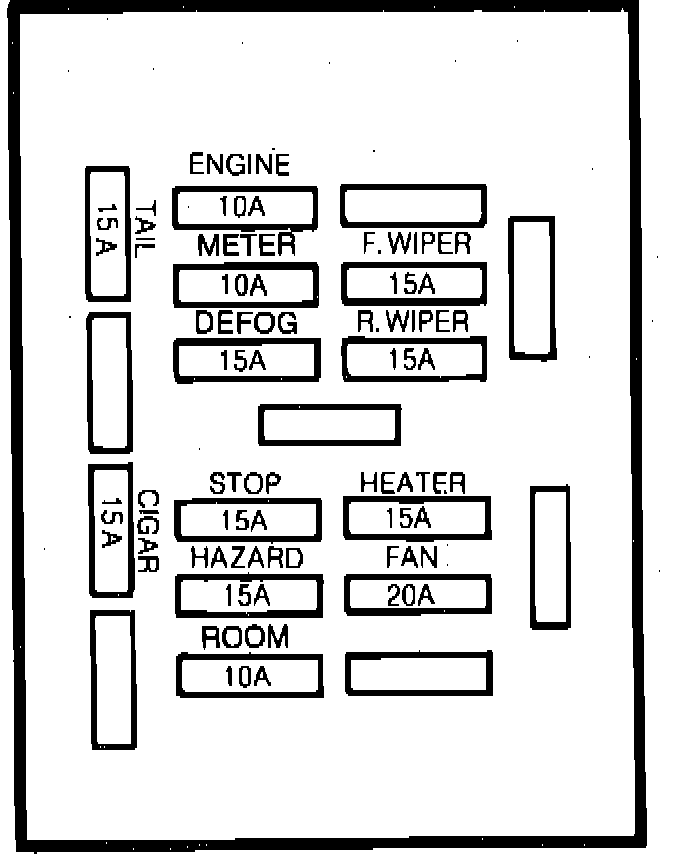

Fuse Panel:
