Oxygen Sensor: Locations

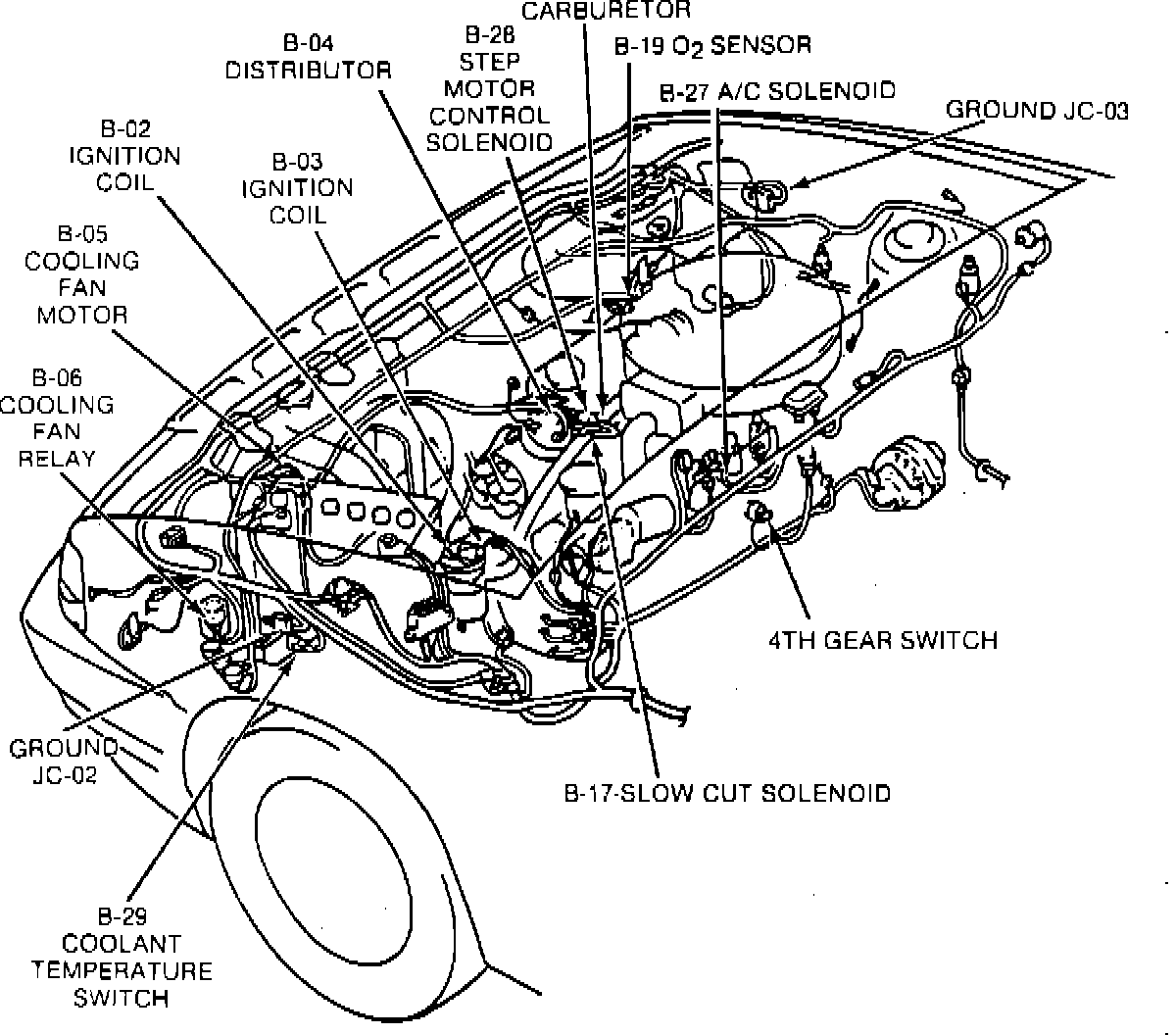

Engine Compartment Electrical Component & Connector Locations (Part 1 Of 2):
Engine Compartment Electrical Component & Connector Locations (Part 1 Of 2):
In Exhaust Manifold
