Carburetor

Carburetor Diagnosis Symptom

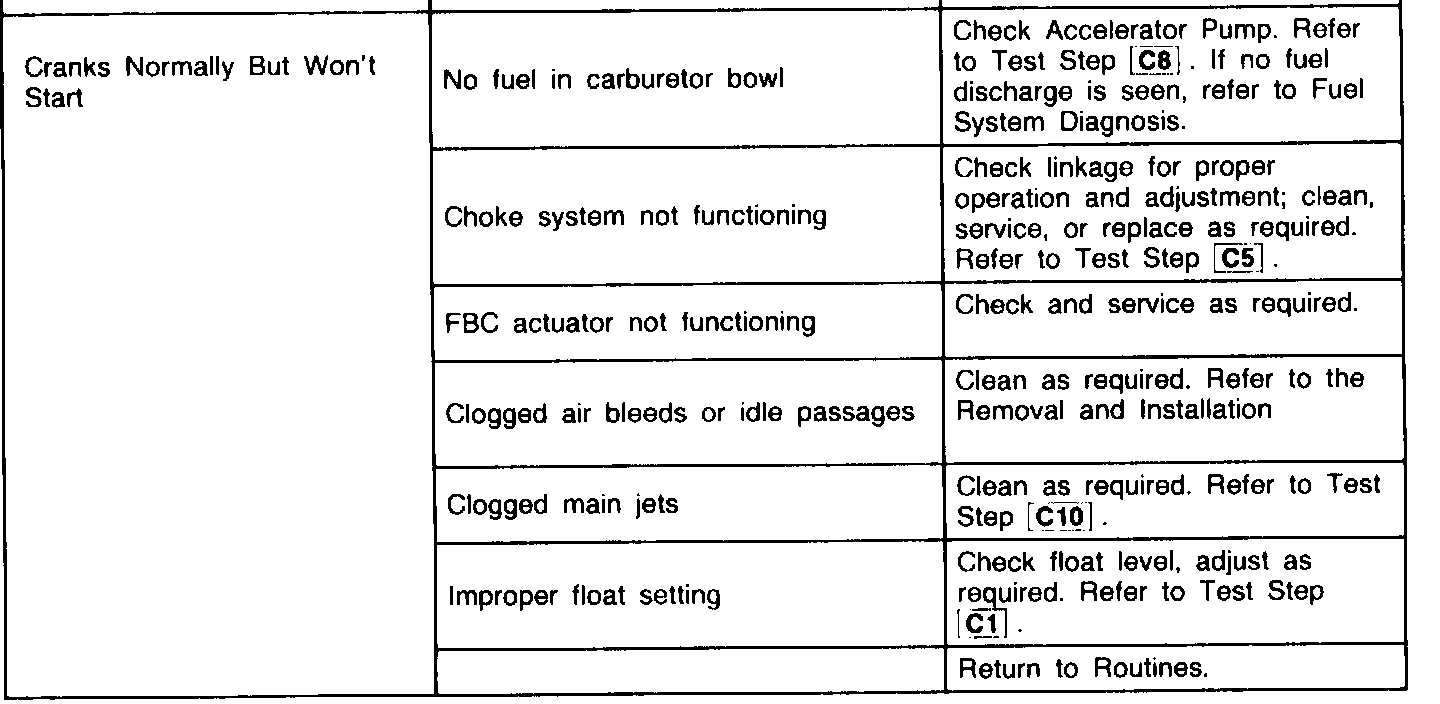

Cranks Normal But Won't Start






C-1

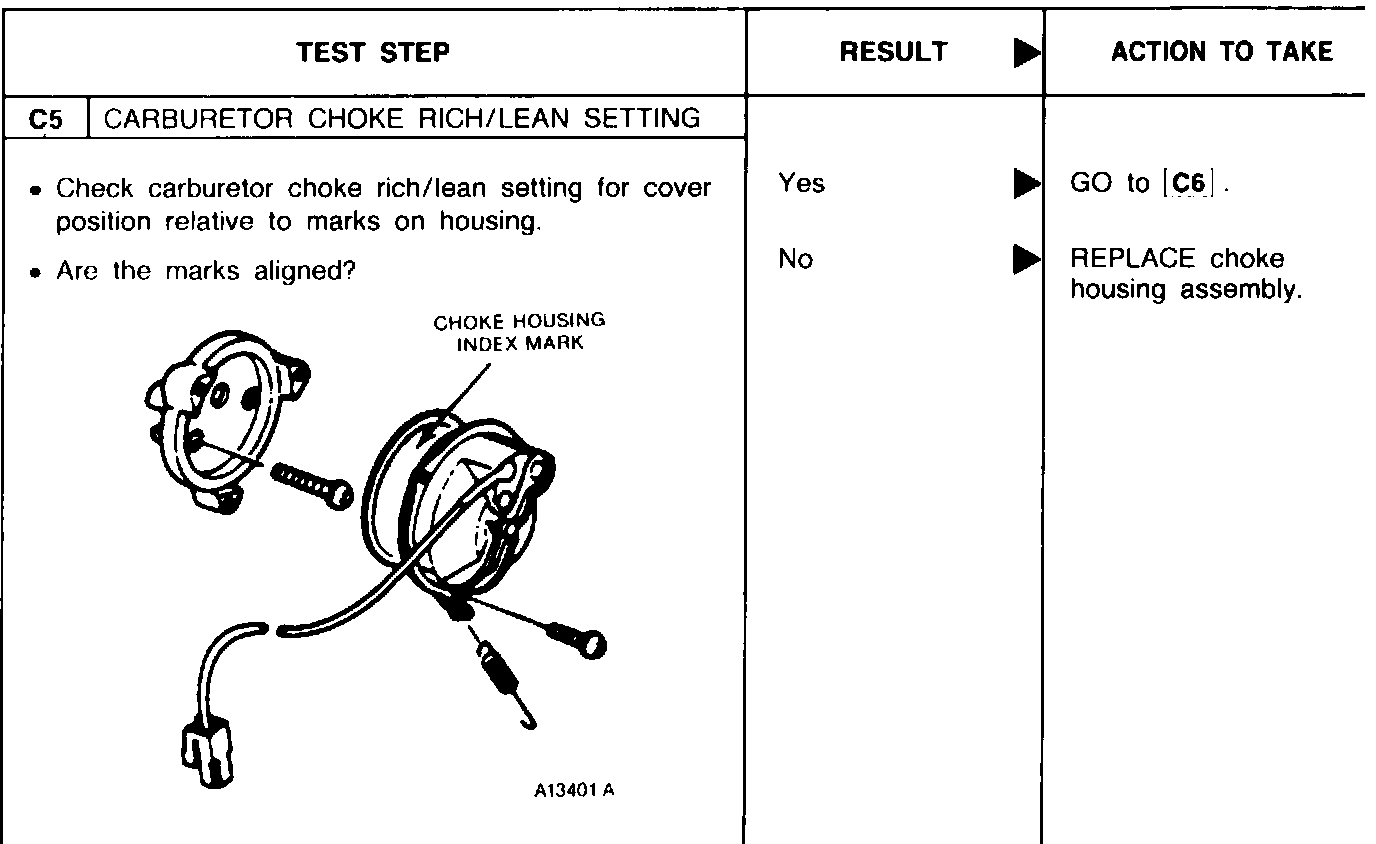

C-5






C-8






C-10
