EGR 11 - ECT Switch Function

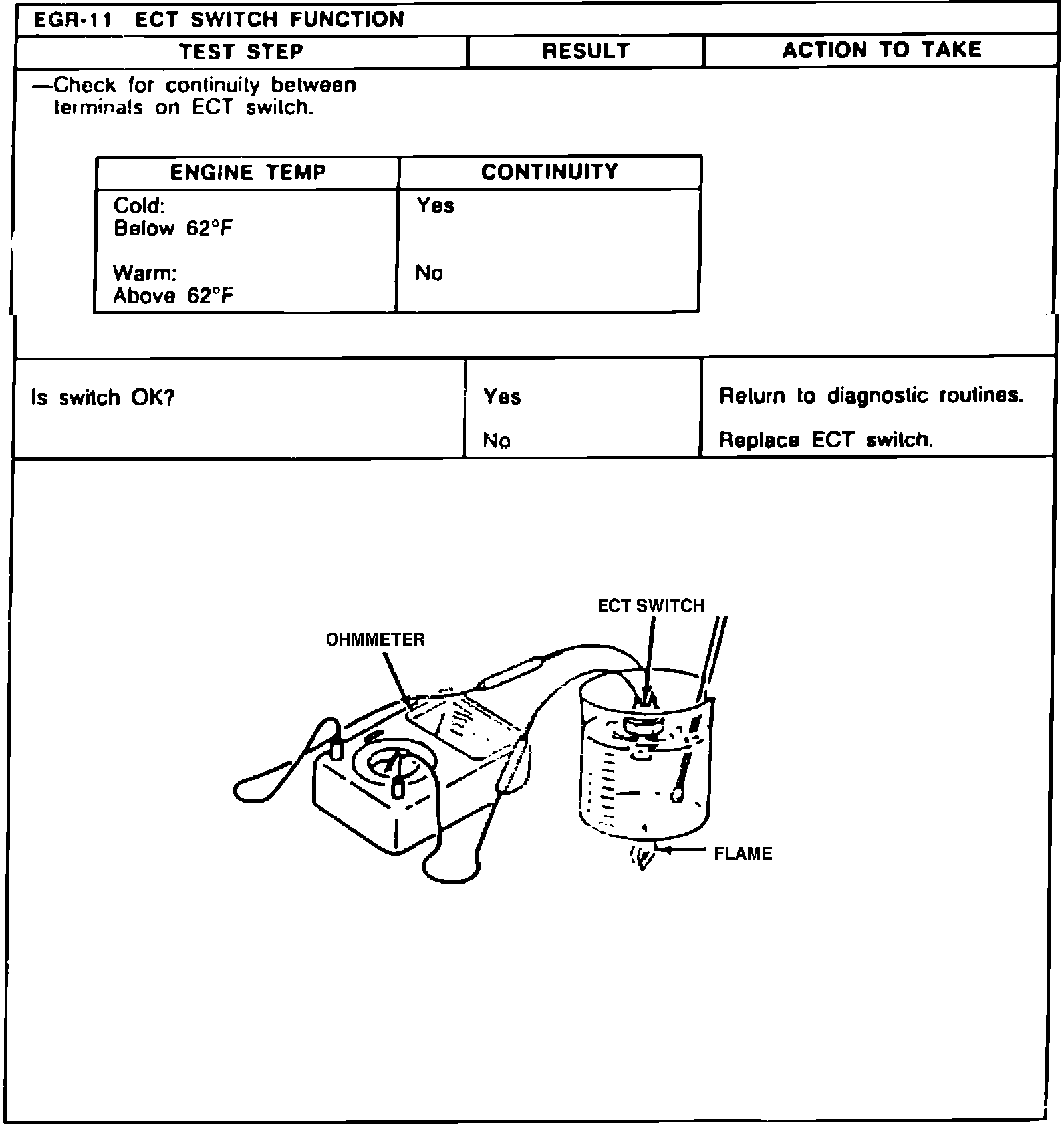

Fig. 6 Exhaust Gas Recirculation (EGR) system diagnosis (Part 11 of 11):
