Emission Control Systems: Locations

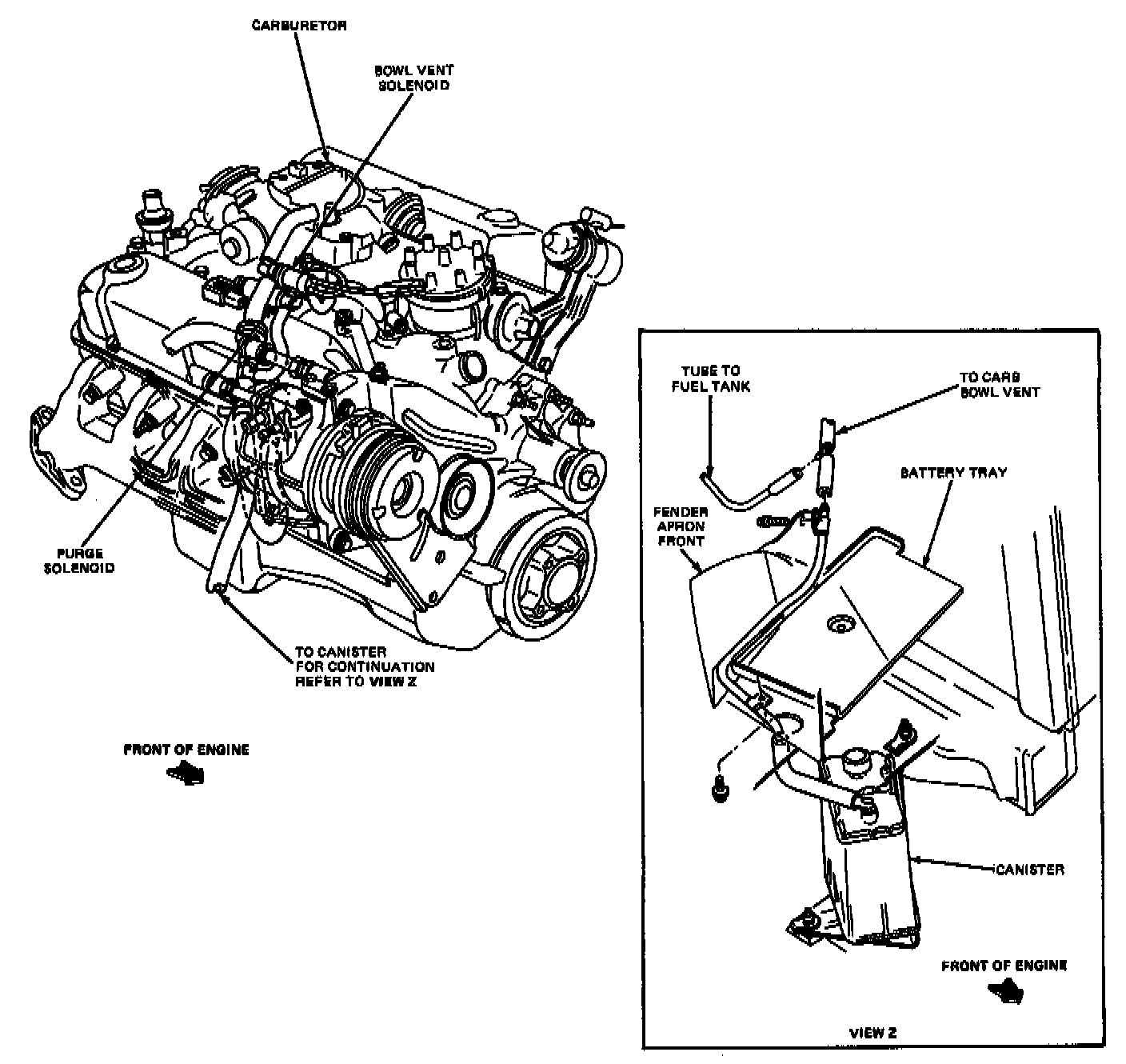

Fig. 13 Typical 5.8L 49 States Police Intercepter Package, Canadian Towing Package-Canister Venting System:
