KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB1 - KB2
KB1 - KB2

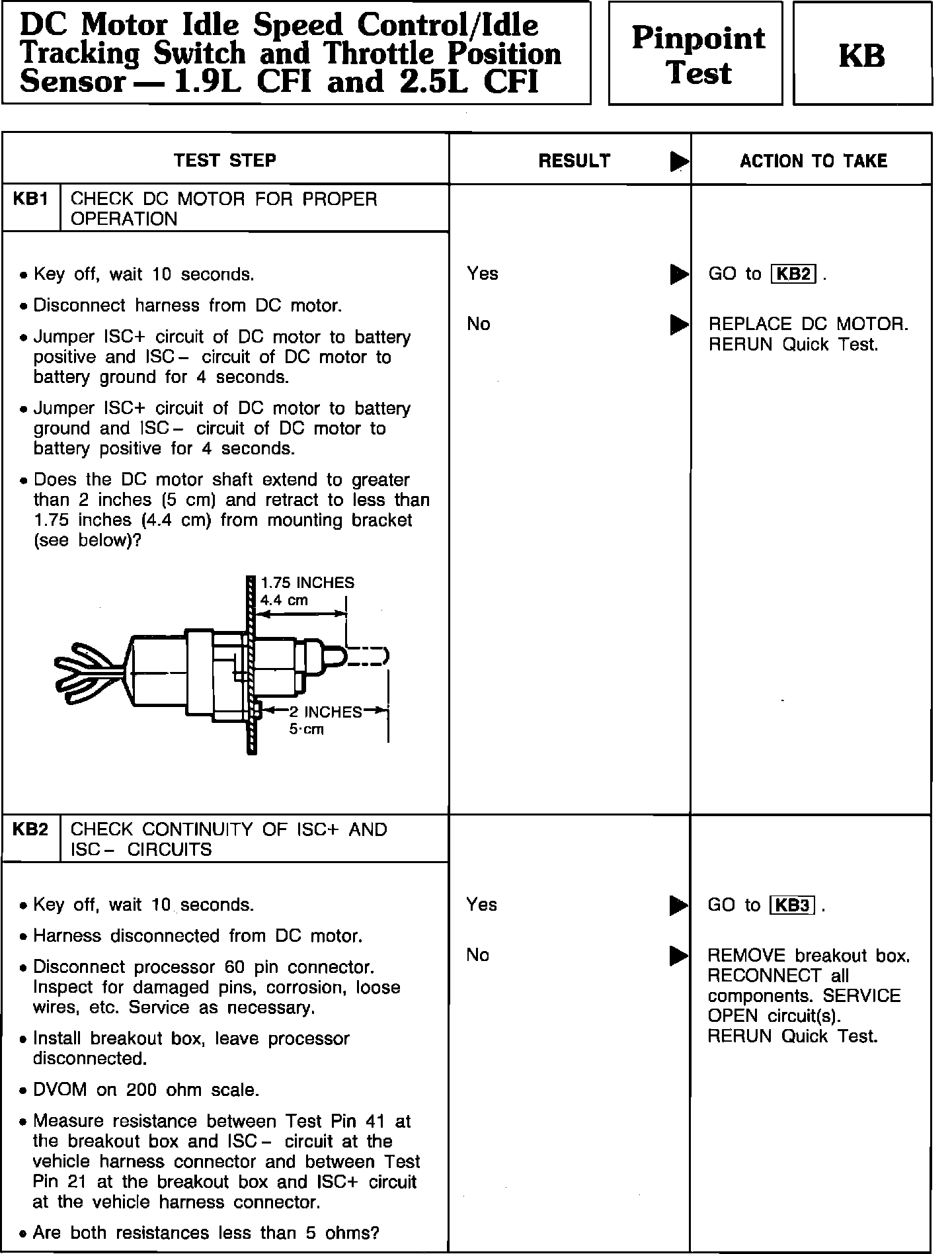

Pinpoint Test KB1 & KB2 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
