Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Testing and Inspection >> SP8 - Actuator Check (Turbo)

SP8 - Actuator Check (Turbo)

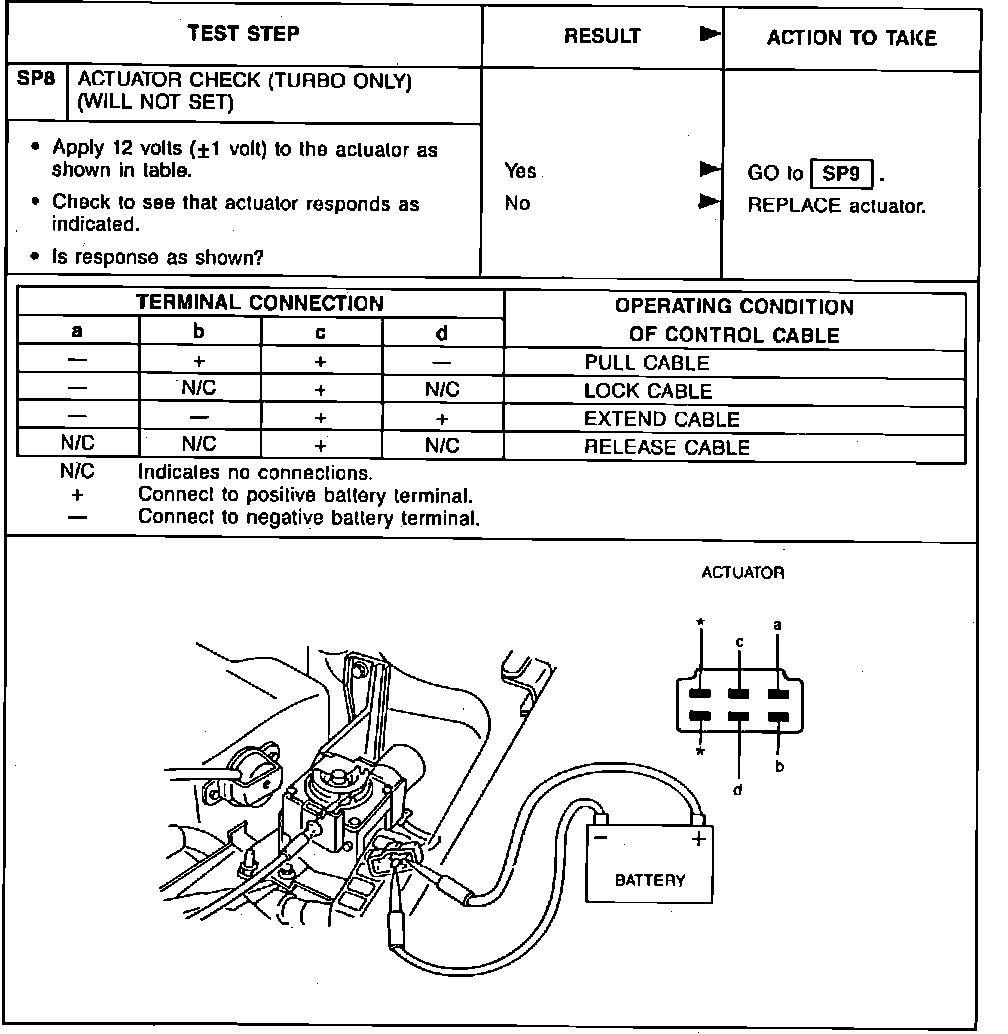

Fig. 77 Diagnosis and Testing (Part 8 Of 30):
