Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>

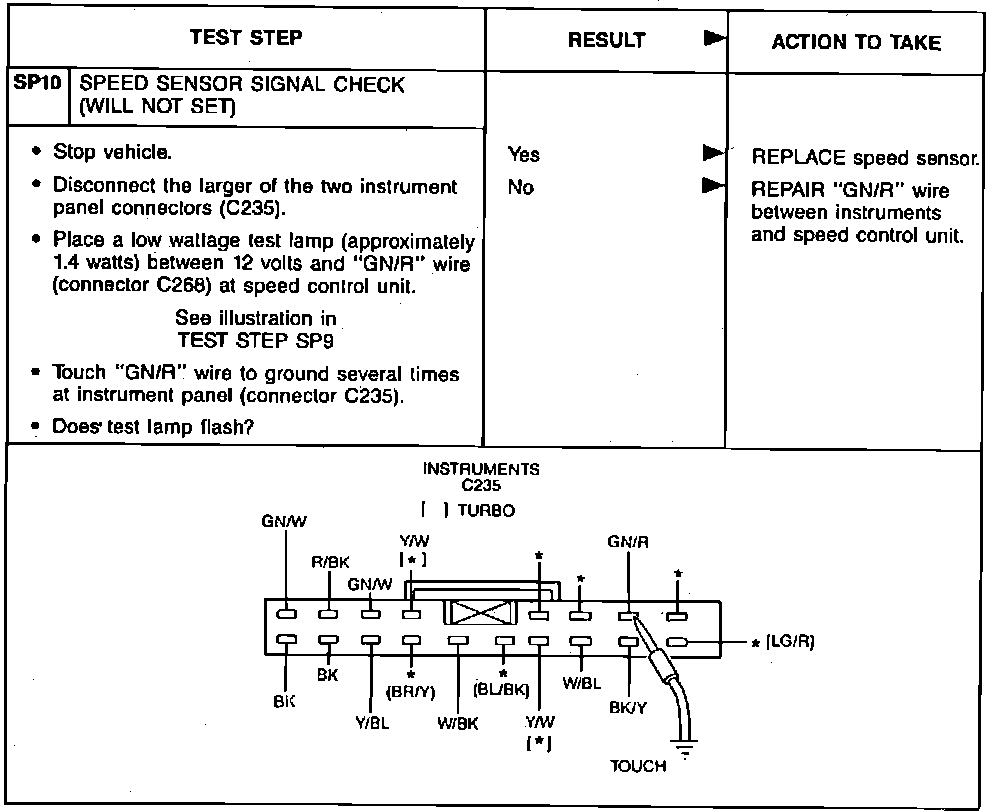

SP10: Speed Sensor Signal Check (Will Not Set)
SP10: Speed Sensor Signal Check (Will Not Set)
Fig. 77 Diagnosis and Testing (Part 10 Of 30):
