SP12: Speed Control Supply Check (Will Not Set)
SP12: Speed Control Supply Check (Will Not Set)

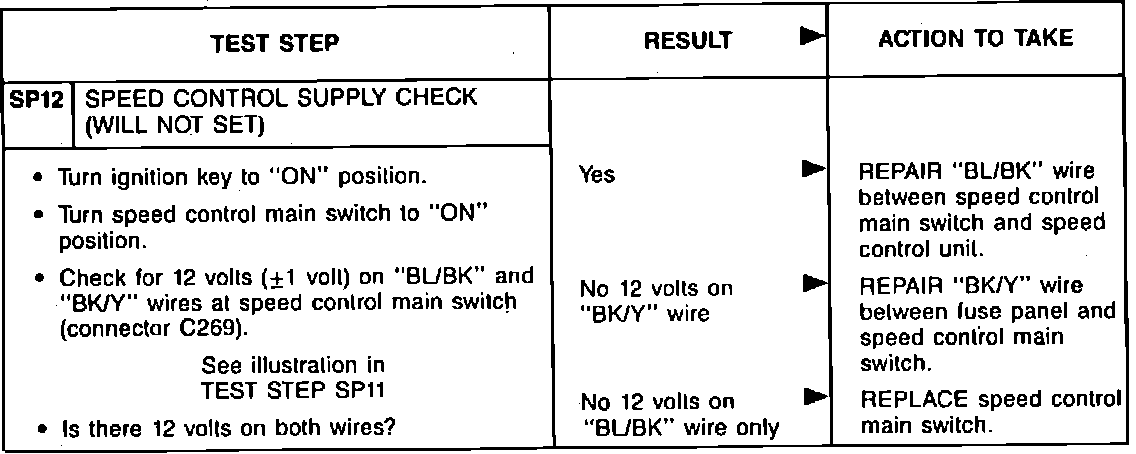

Fig. 77 Diagnosis and Testing (Part 12 Of 30):
