Home
>>
Ford
>>
1989
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
SP17: Stop Switch Check (Will Not Set)
SP17: Stop Switch Check (Will Not Set)

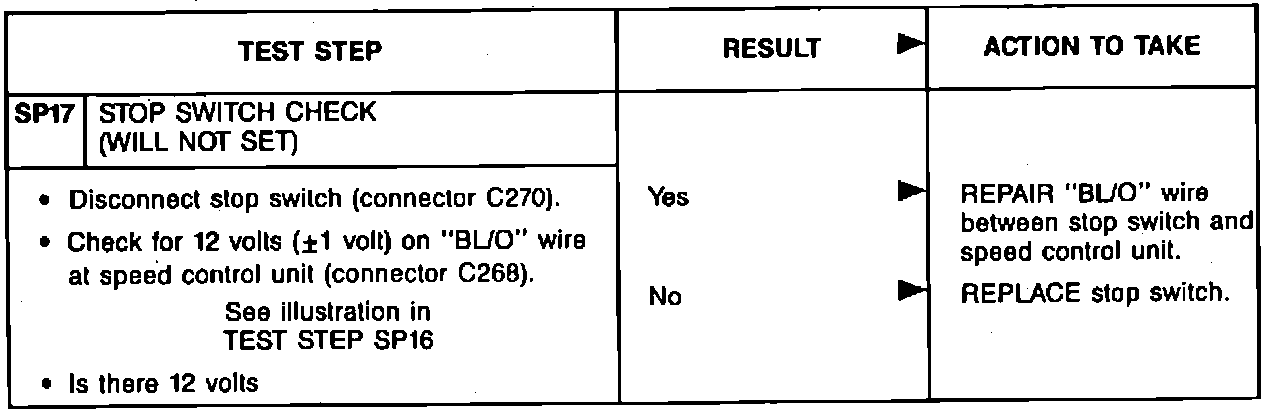

Fig. 77 Diagnosis and Testing (Part 17 Of 30):
