Cruise Control
>>
Testing and Inspection
>>
SP21: Stop Switch Check (Will Not Engage)
SP21: Stop Switch Check (Will Not Engage)

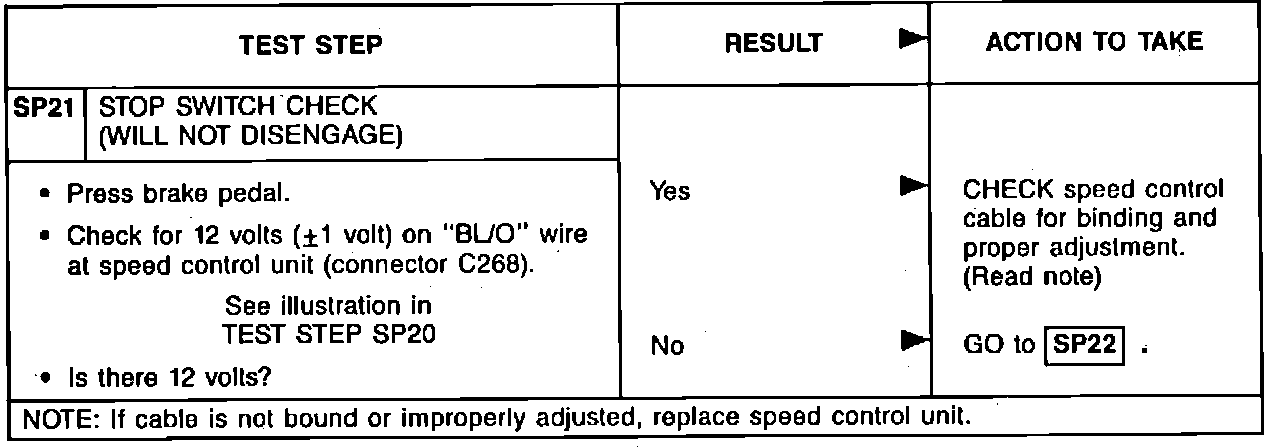

Fig. 77 Diagnosis and Testing (Part 21 Of 30):
