Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
SP22: Stop Switch Check (Will Not Disengage)
SP22: Stop Switch Check (Will Not Disengage)

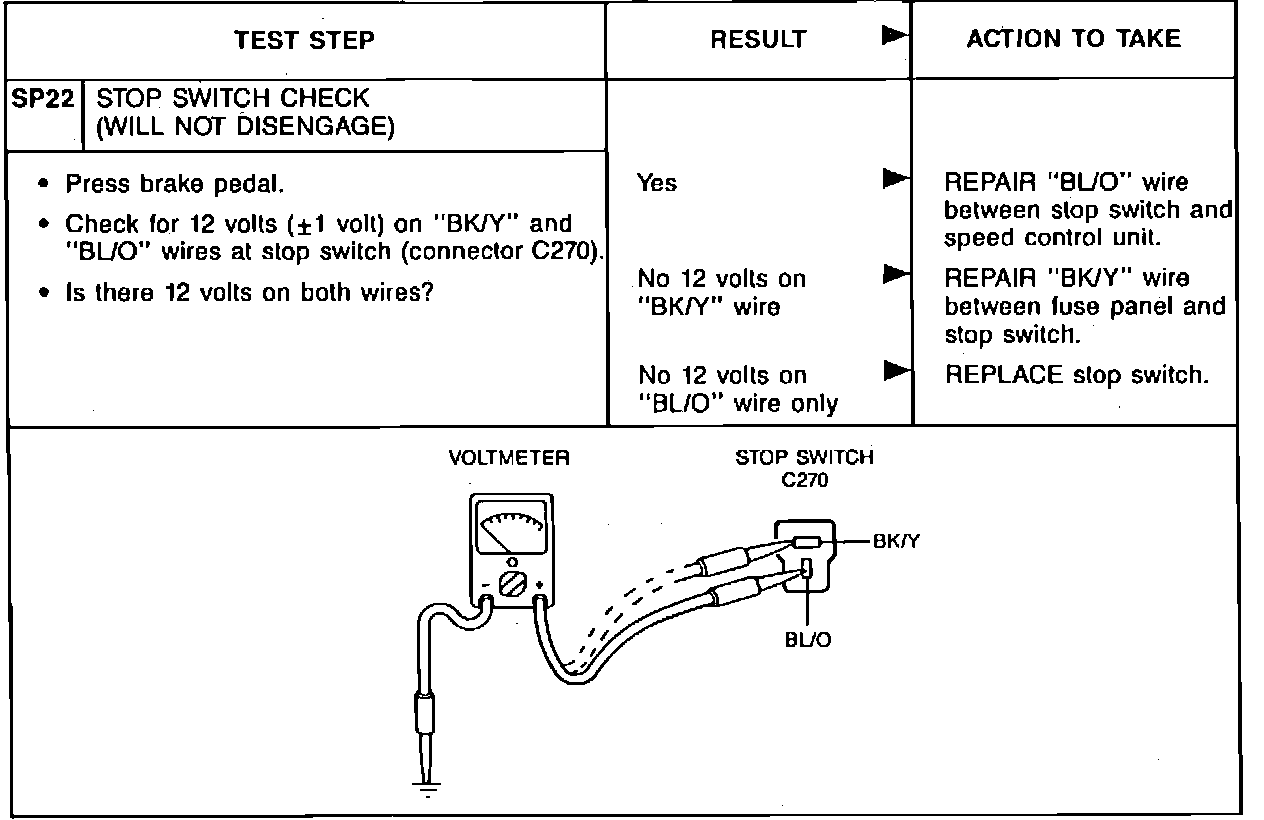

Fig. 77 Diagnosis and Testing (Part 22 Of 30):
