SP28: Actuator Check (Non-Turbo)
SP28: Actuator Check (Non-Turbo)

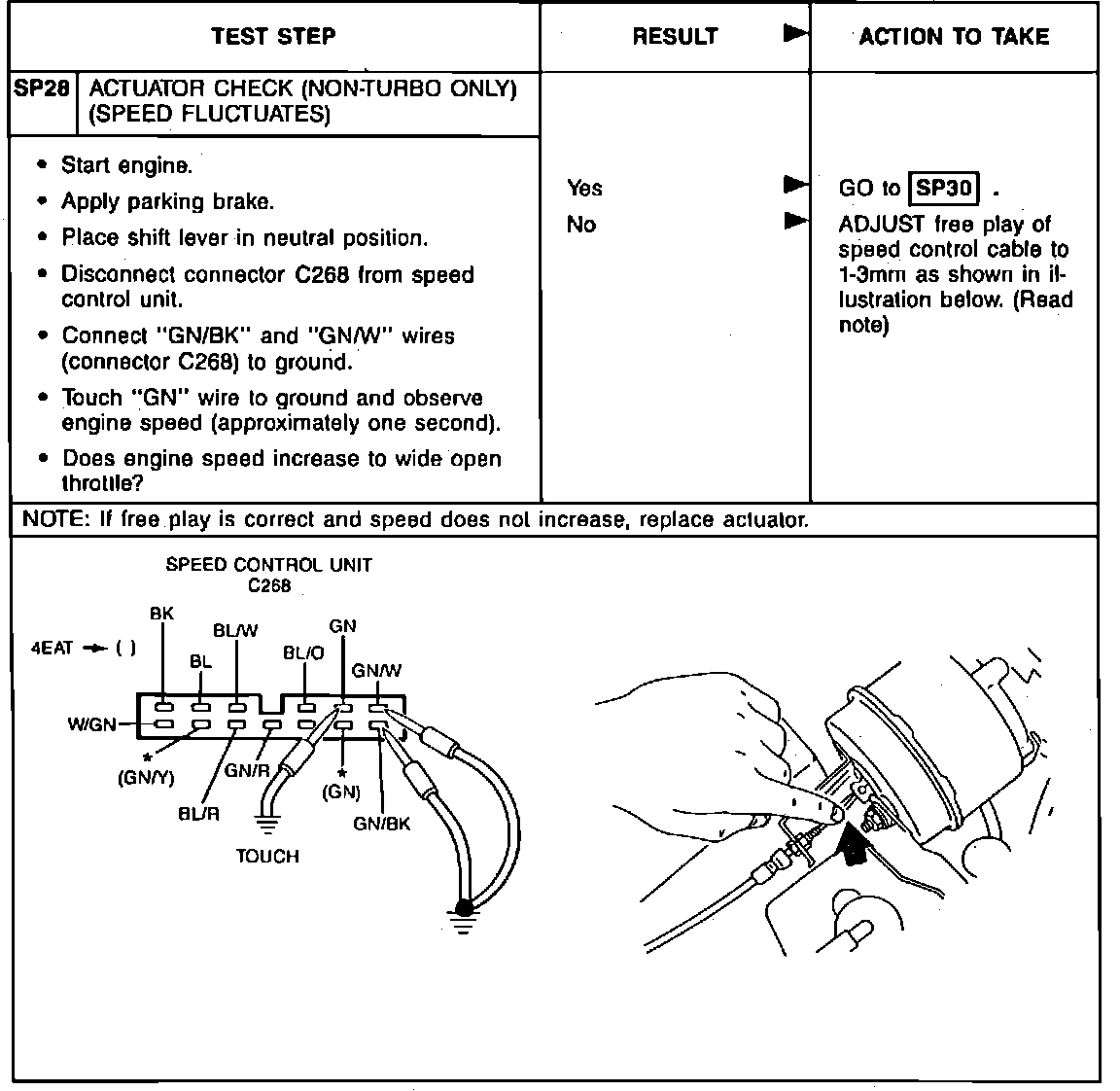

Fig. 77 Diagnosis and Testing (Part 28 Of 30):
