SP9: Speed Signal Check (Will Not Set)
SP9: Speed Signal Check (Will Not Set)

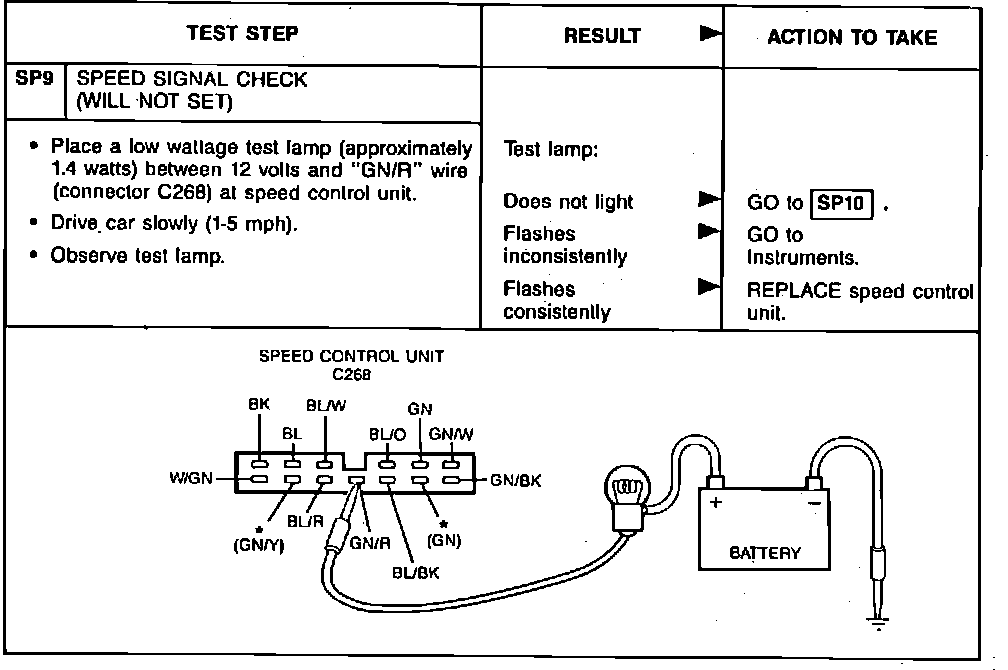

Fig. 77 Diagnosis and Testing (Part 9 Of 30):
