A3: Step 4 Check For Air In System
A3: Step 4 Check For Air In System

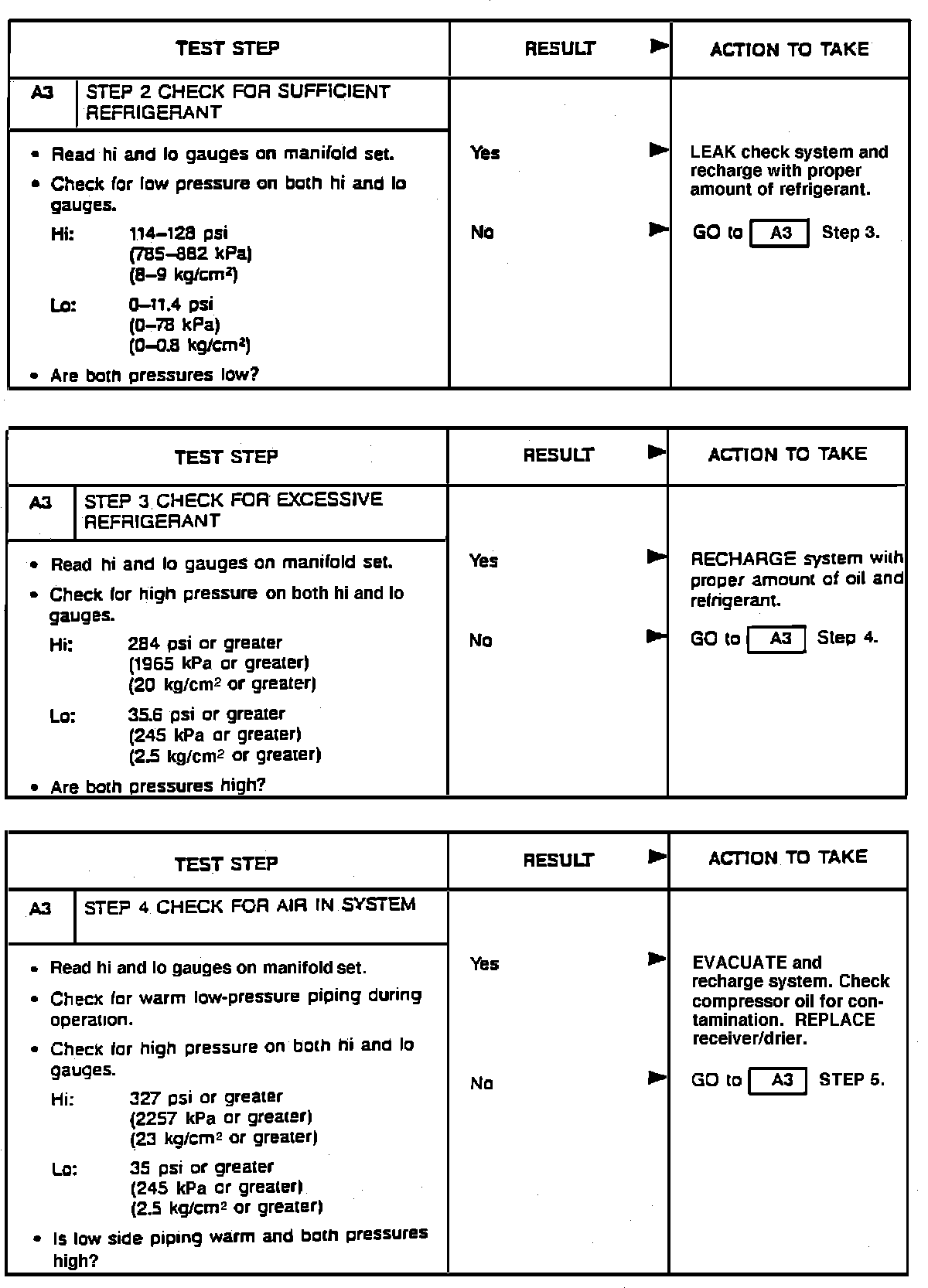

Fig. 3c Insufficient A/C Cooling Diagnosis:
