Ford
>>
1989
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution
>>
Main Fuse Panel
Main Fuse Panel

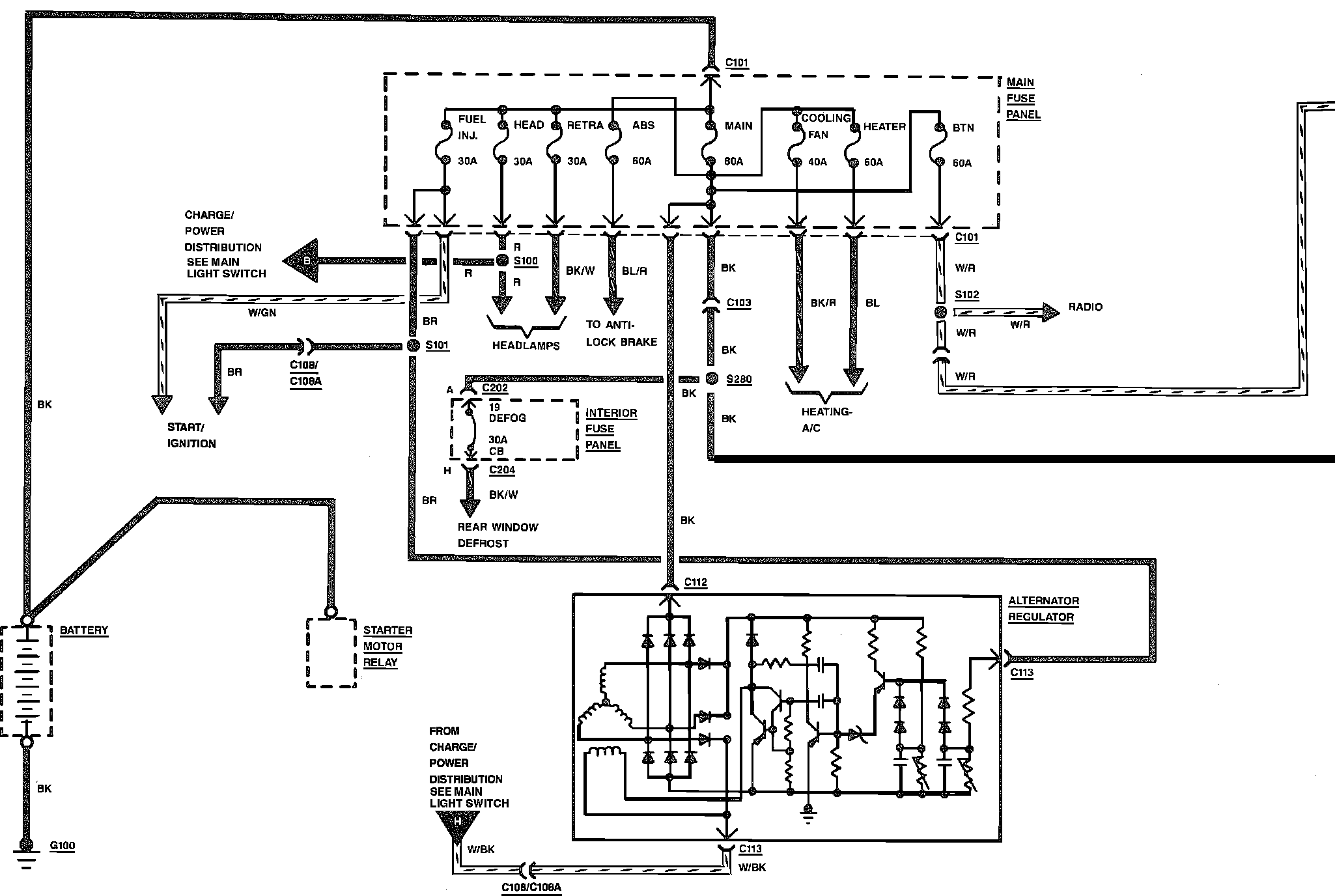

x](CCharge & Power Distribution Wiring Circuit:
