Quick Test 5.0C - Switch Monitor Test
Quick Test 5.0C - Switch Monitor Test
1.
Key ON Engine OFF.

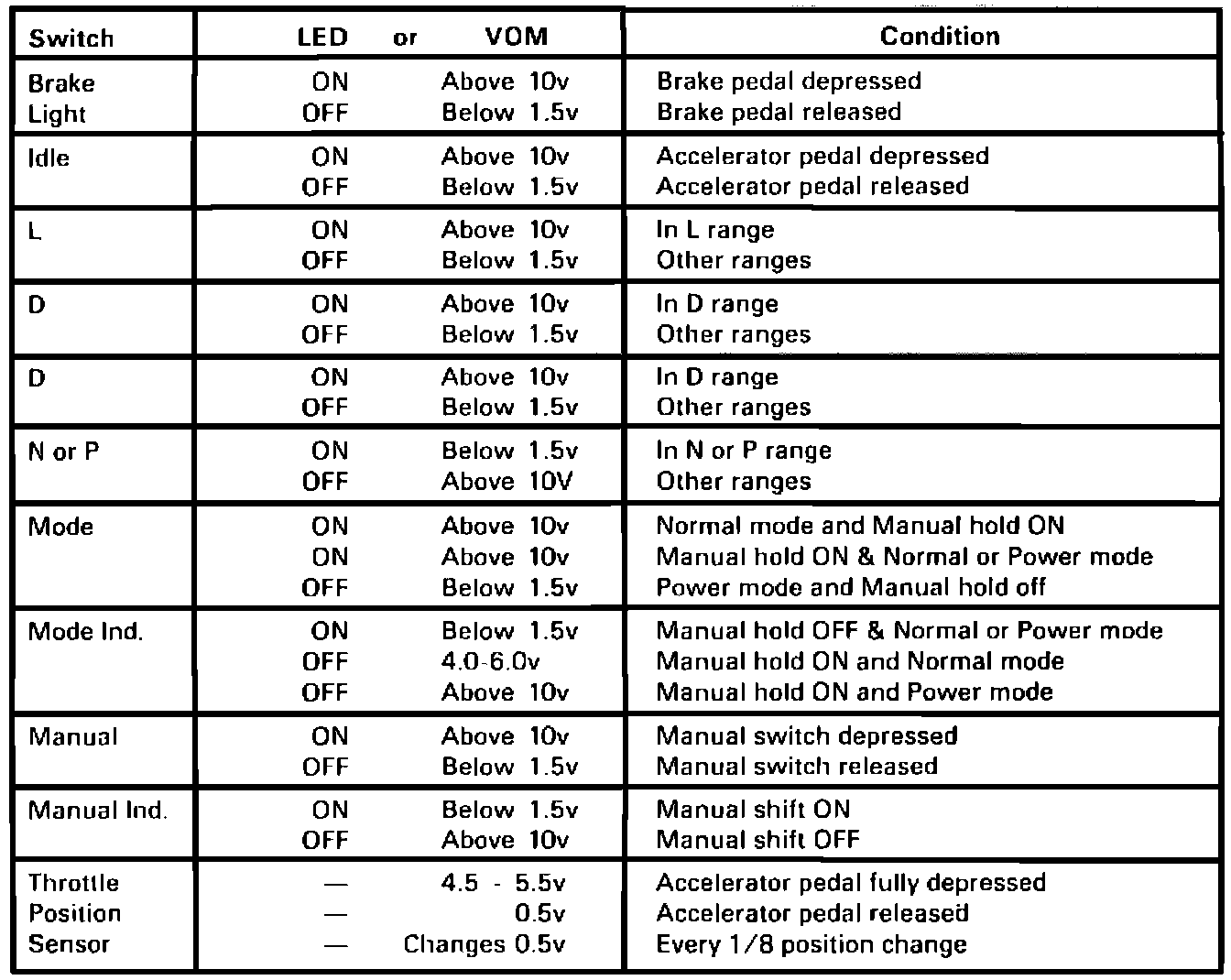

Switch Monitor Test Chart A:
2.
Check each switch under conditions specified in Chart A.
NOTE:
These conditions should also be verified during engine running testing.
3.
Go to
Part 5.OD
.
