Test 3 - DIS Module, Harness & Sensor
>>
Steps 1 Through 6
Steps 1 Through 6

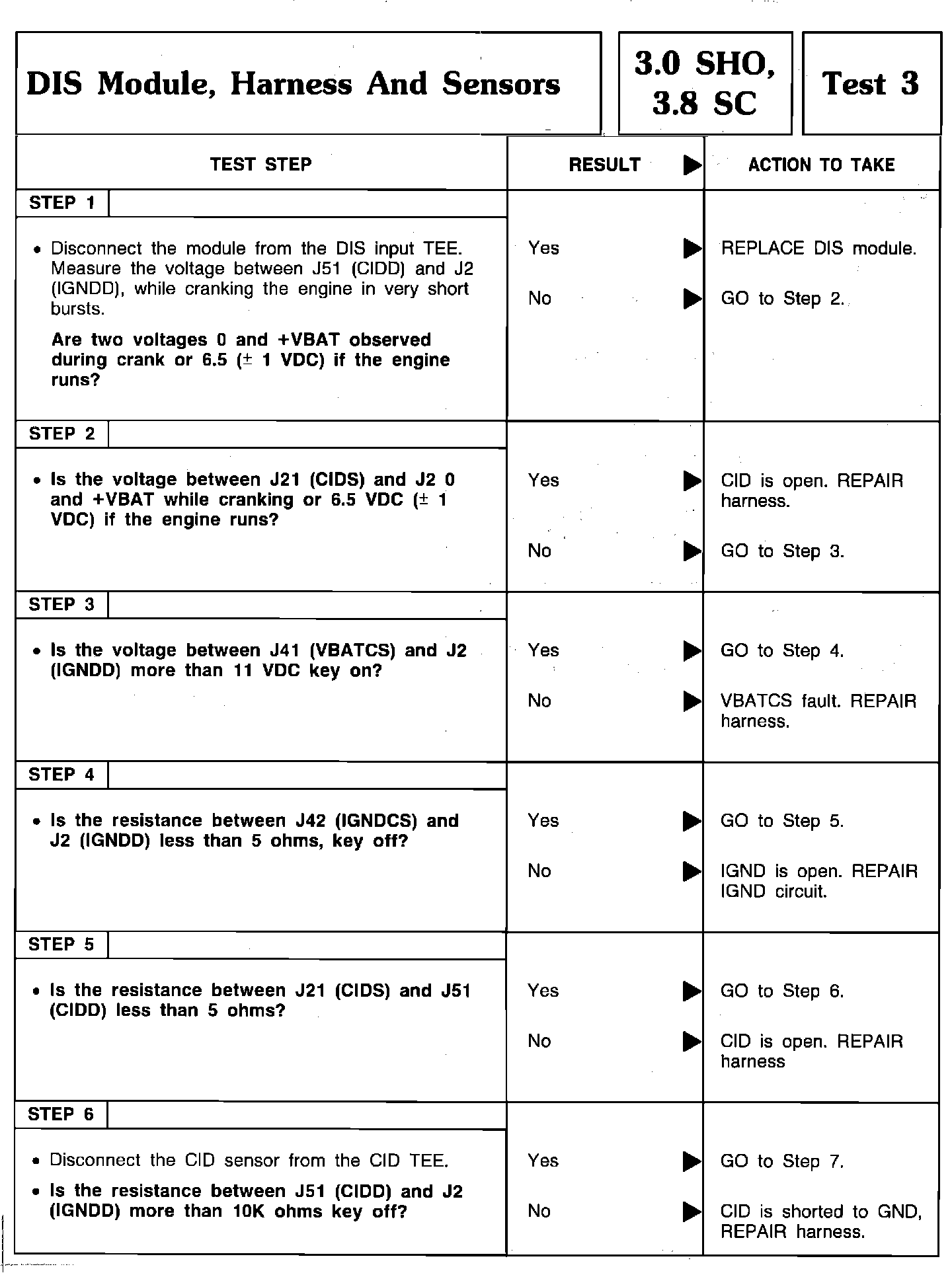

DIS Module, Harness & Sensors Steps 1 thru 6:
