Radiator Cooling Fan Control Module: Testing and Inspection

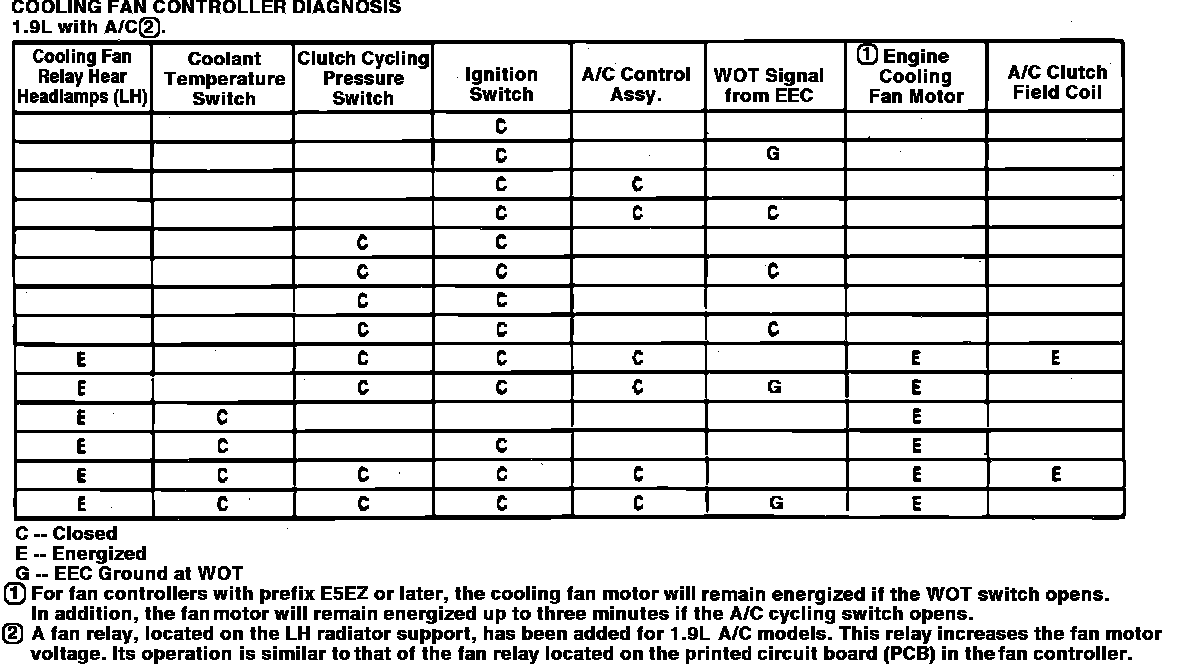

Fig. 12a Cooling Fan Controller Diagnosis:
