Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Festiva L4-81 1.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

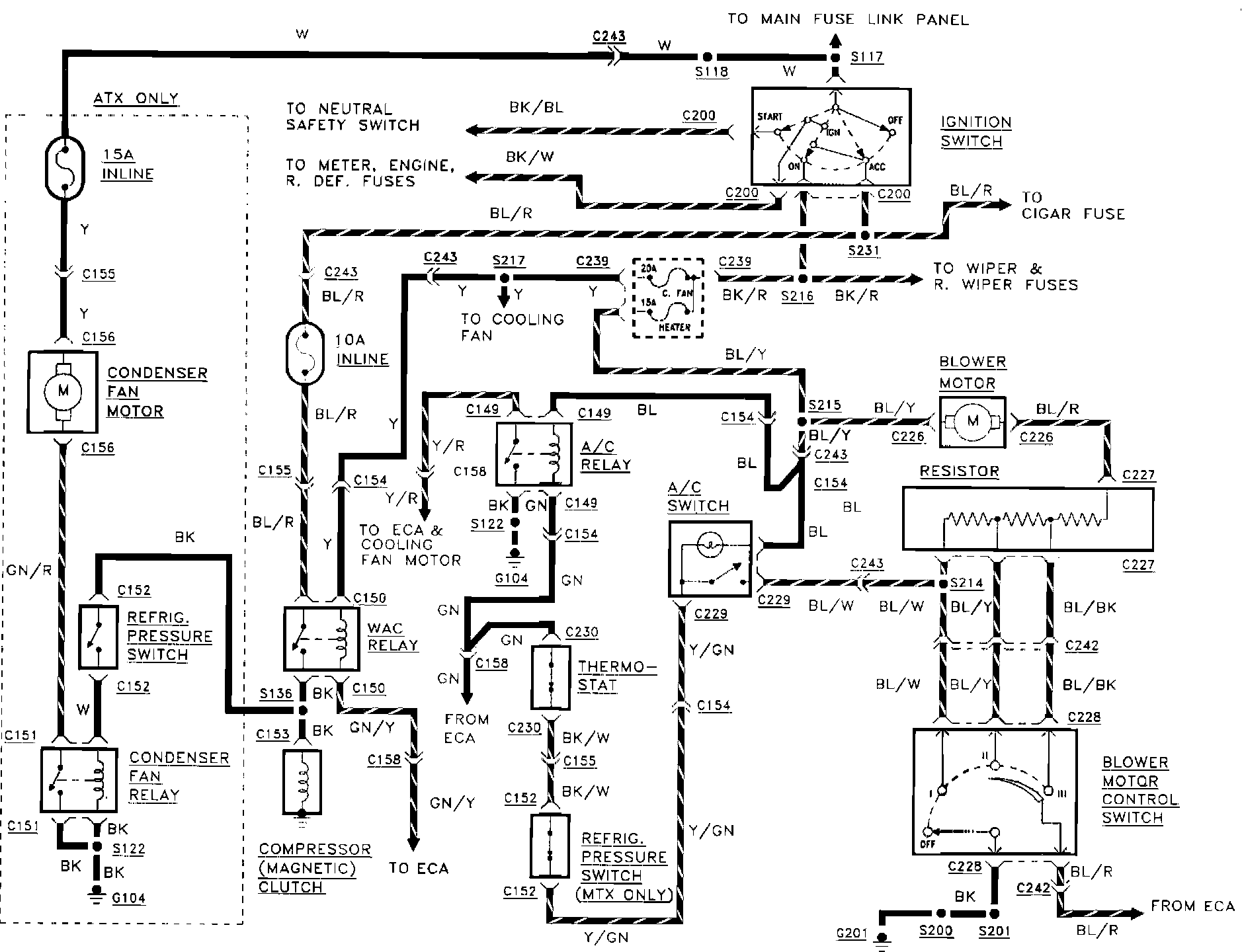

Air Conditioning & Heater:

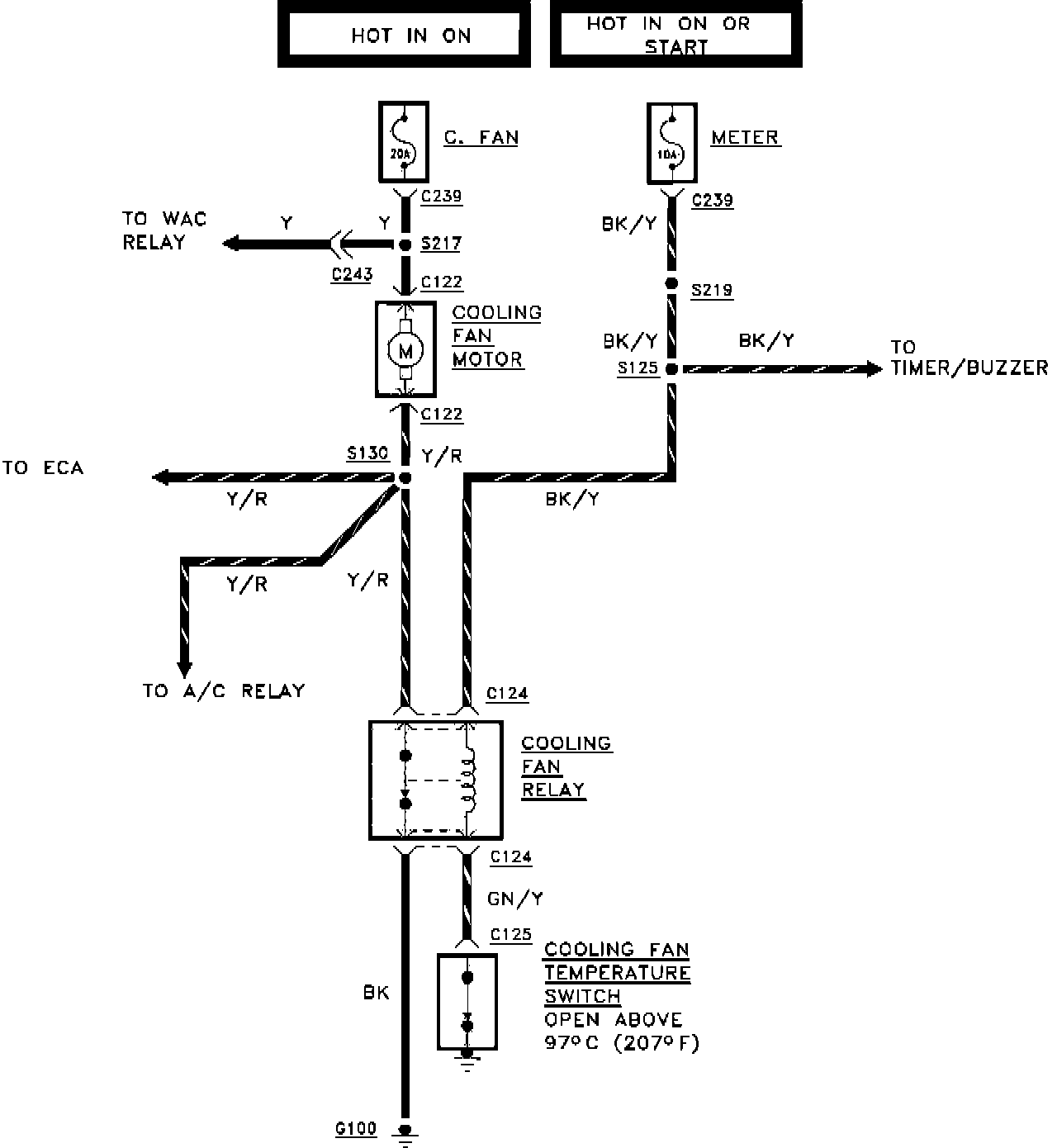

Cooling Fan:
