Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
Diagnostic Trouble Code Tests and Associated Procedures

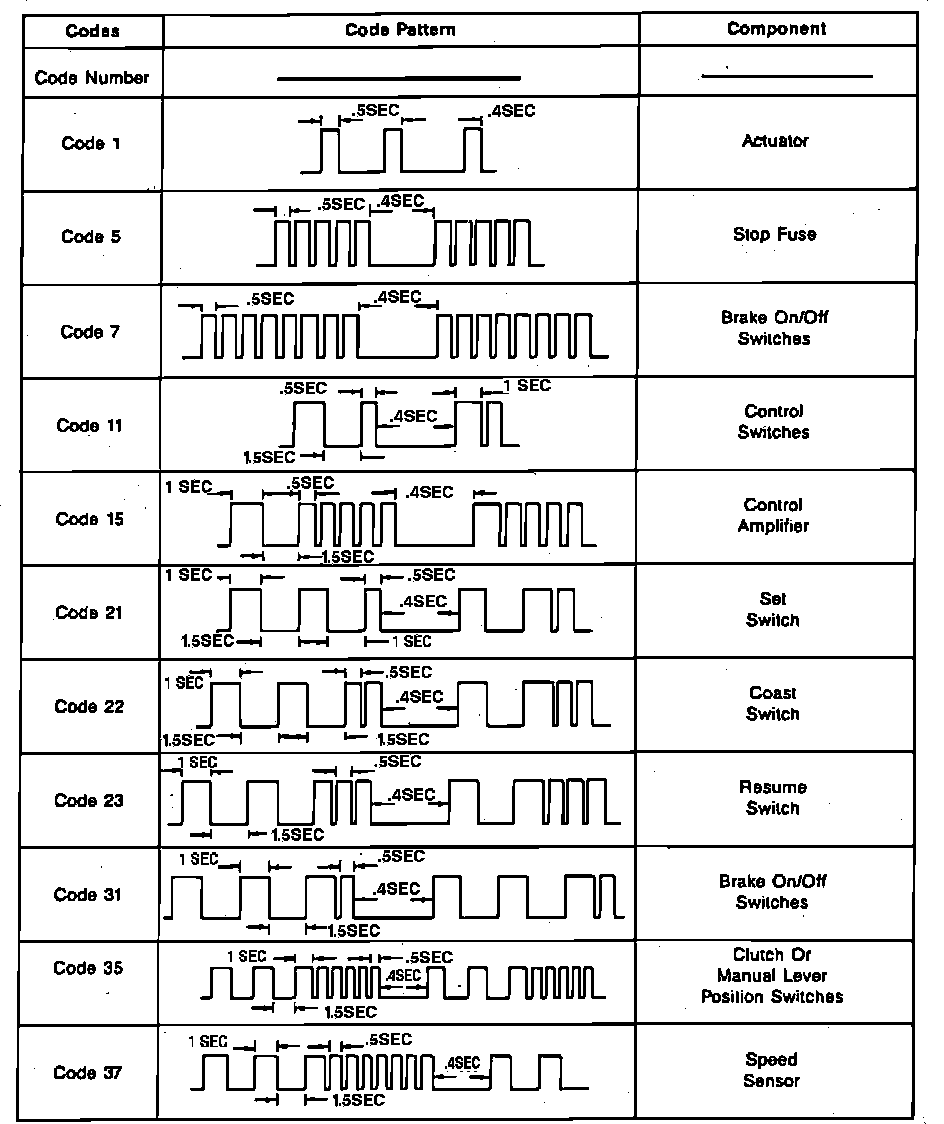

Fig. 78 Diagnosis and Testing:
