SCG - Solenoid Controlled By Ground
>>

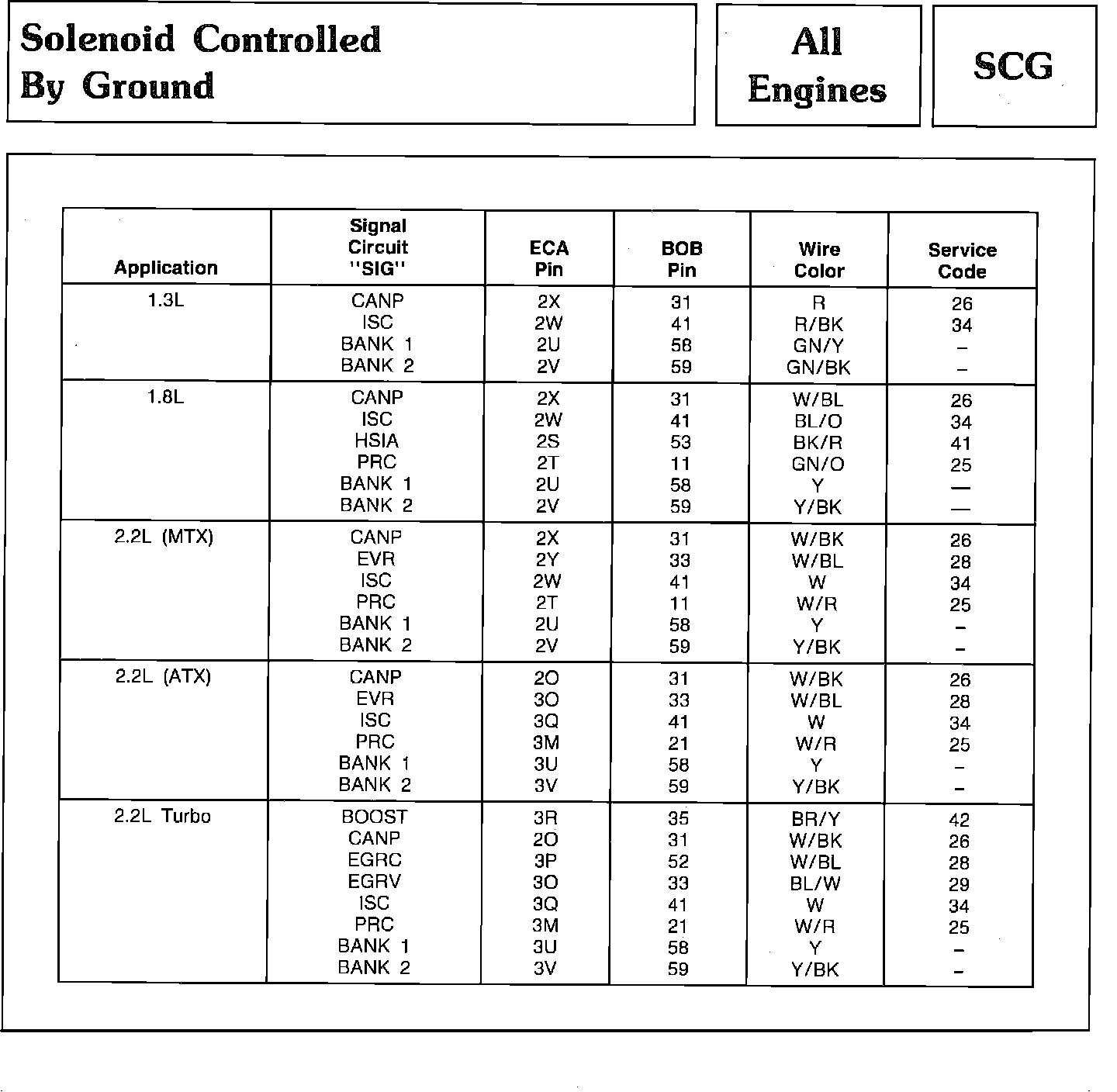

SCG - Test Chart
SCG - Test Chart
Pinpoint Test SCG - Solenoid Controlled By Ground:
