Automatic

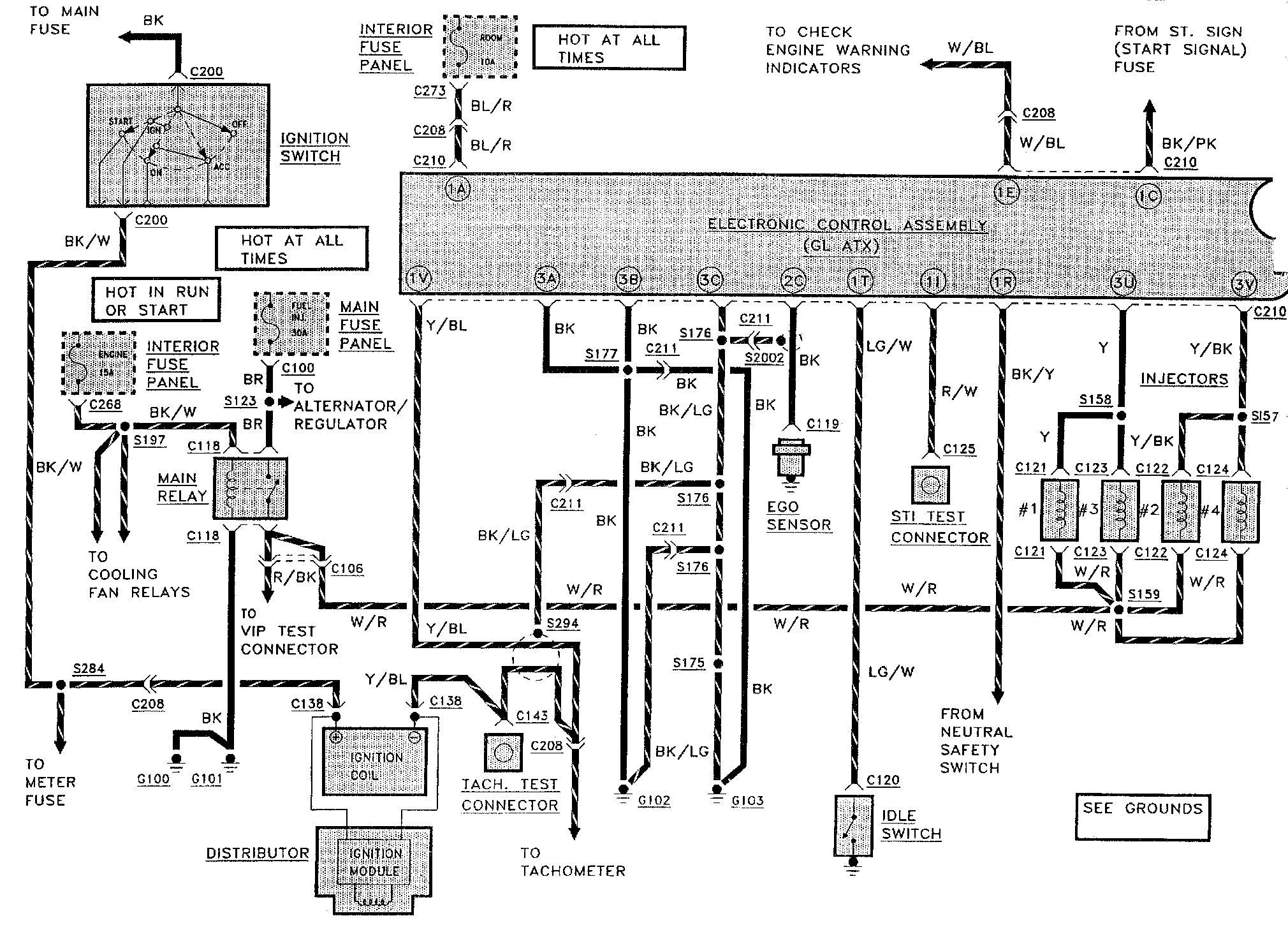

Engine Controls - GL W/Automatic Transmission:

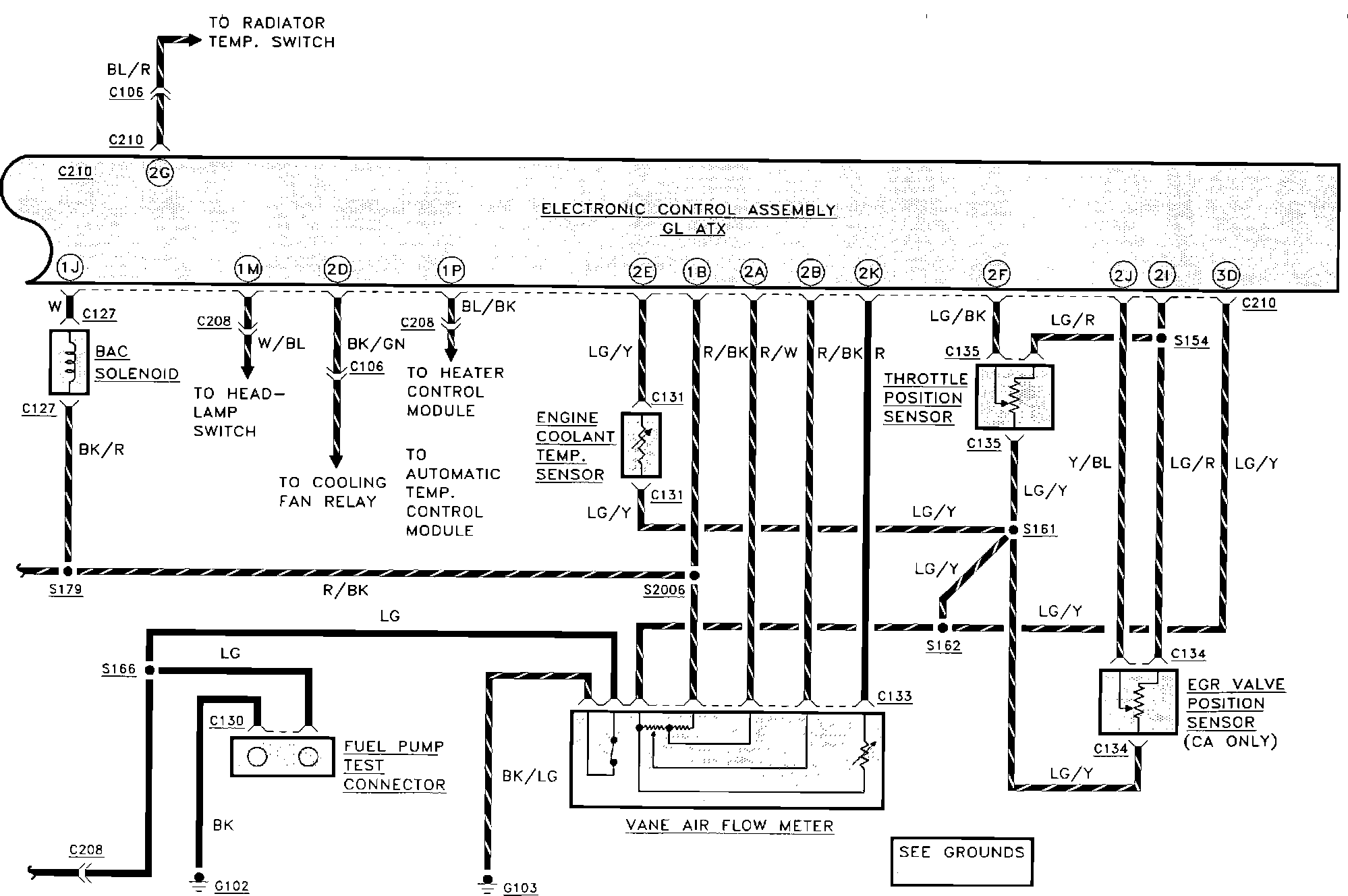

Engine Controls - GL W/Automatic Transmission:

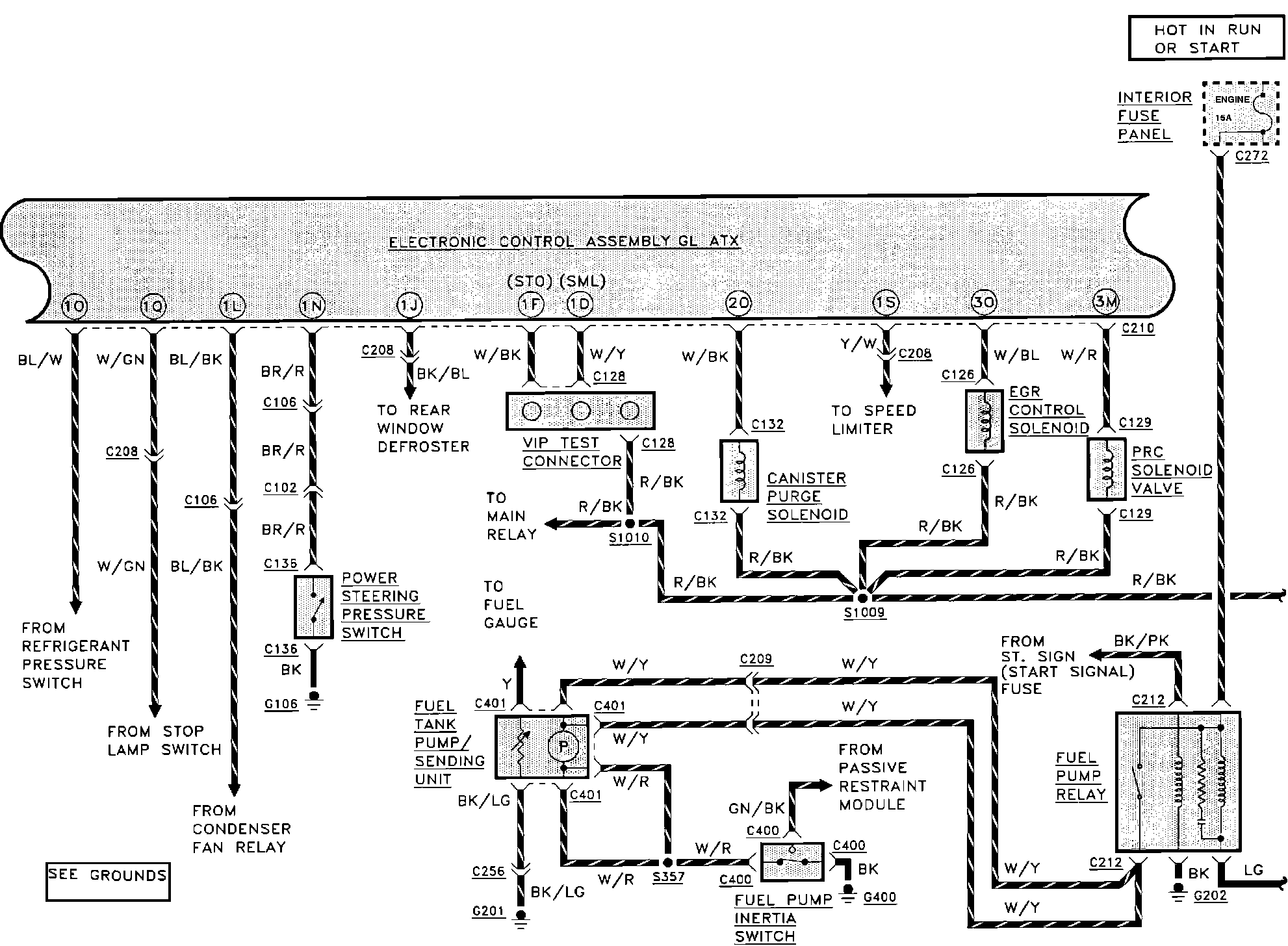

Engine Controls - GL W/Automatic Transmission:
