Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
U4 - U7
U4 - U7

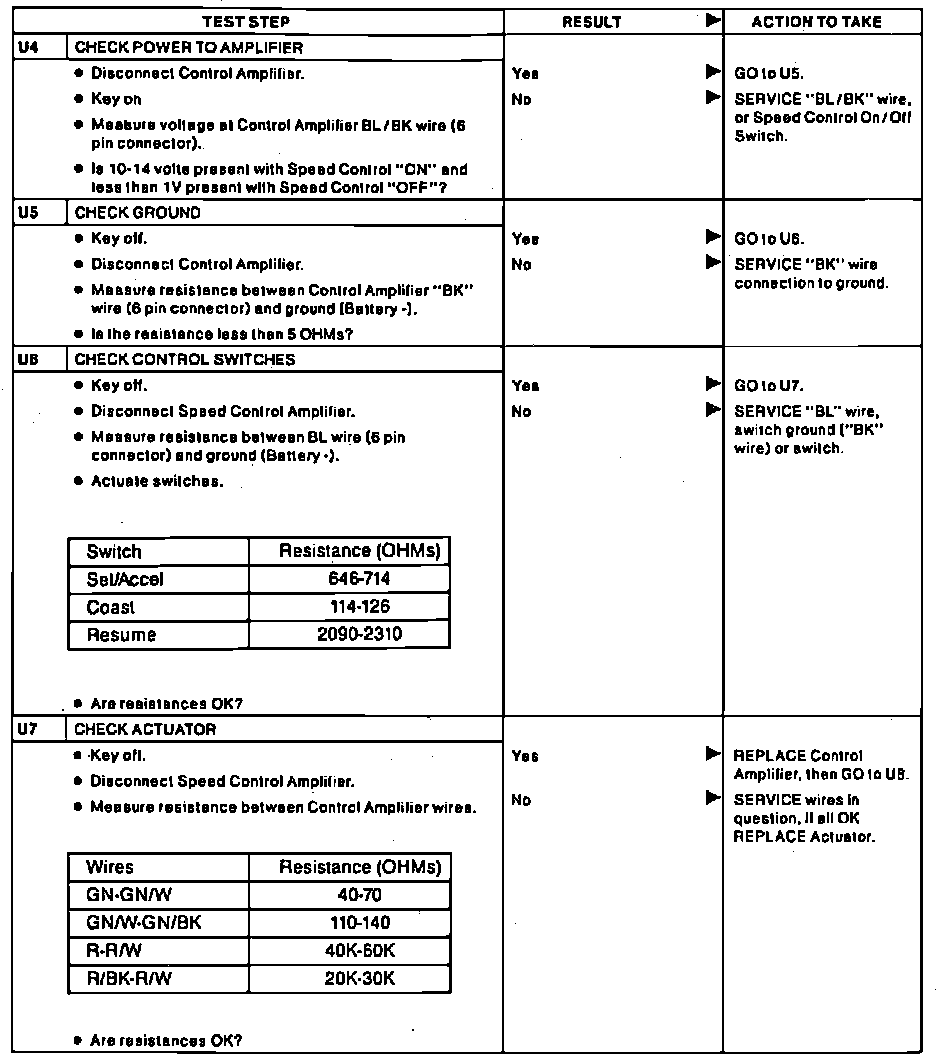

Fig. 79 Diagnosis and Testing (Part 3 Of 4):
