Wiper Motor Timer
>>
Interval Wiper System
Interval Wiper System

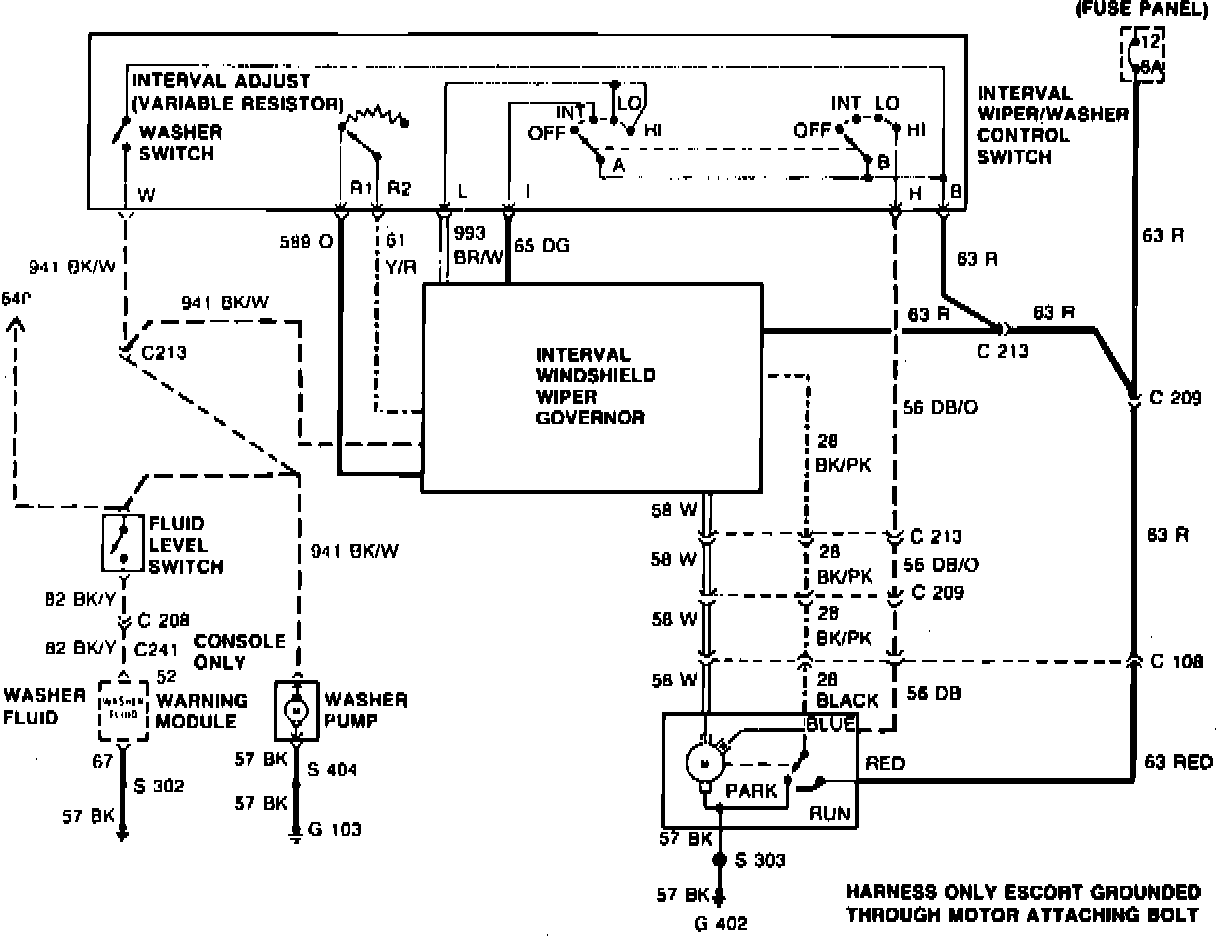

Fig. 2 Wiper System Wiring Schematic (Interval):
