Radiator Cooling Fan Control Module: Testing and Inspection

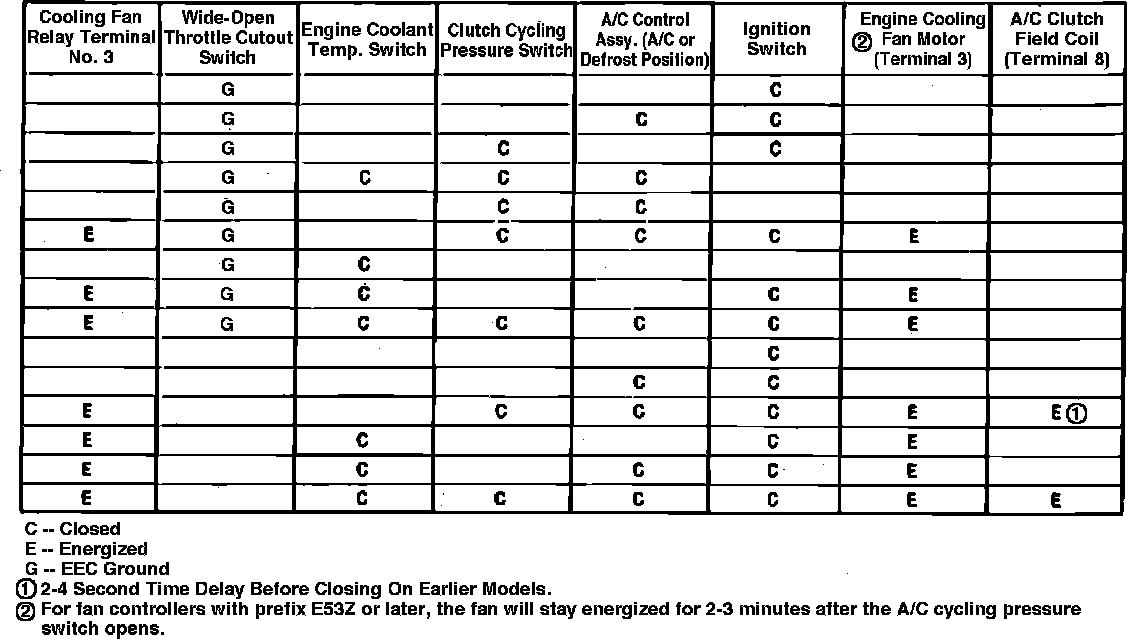

Fig. 13a Cooling Fan Controller Diagnosis:
