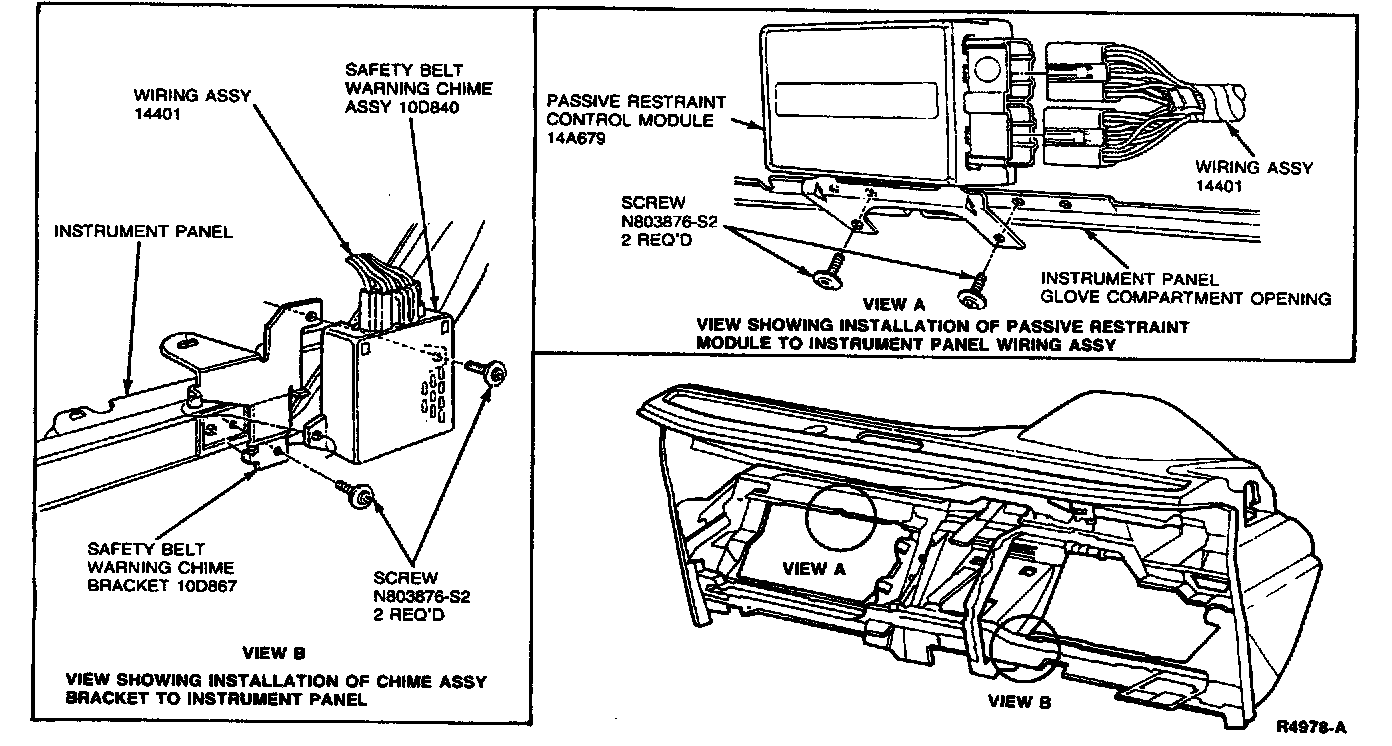

Seat Belt Control Module: Service and Repair





1. Open glove compartment door.
2. Remove two module mounting bracket screws.
3. Disconnect module connectors and slide module off bracket.
4. To install, reverse Steps 1, 2, and 3.
