Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse Panel
>>

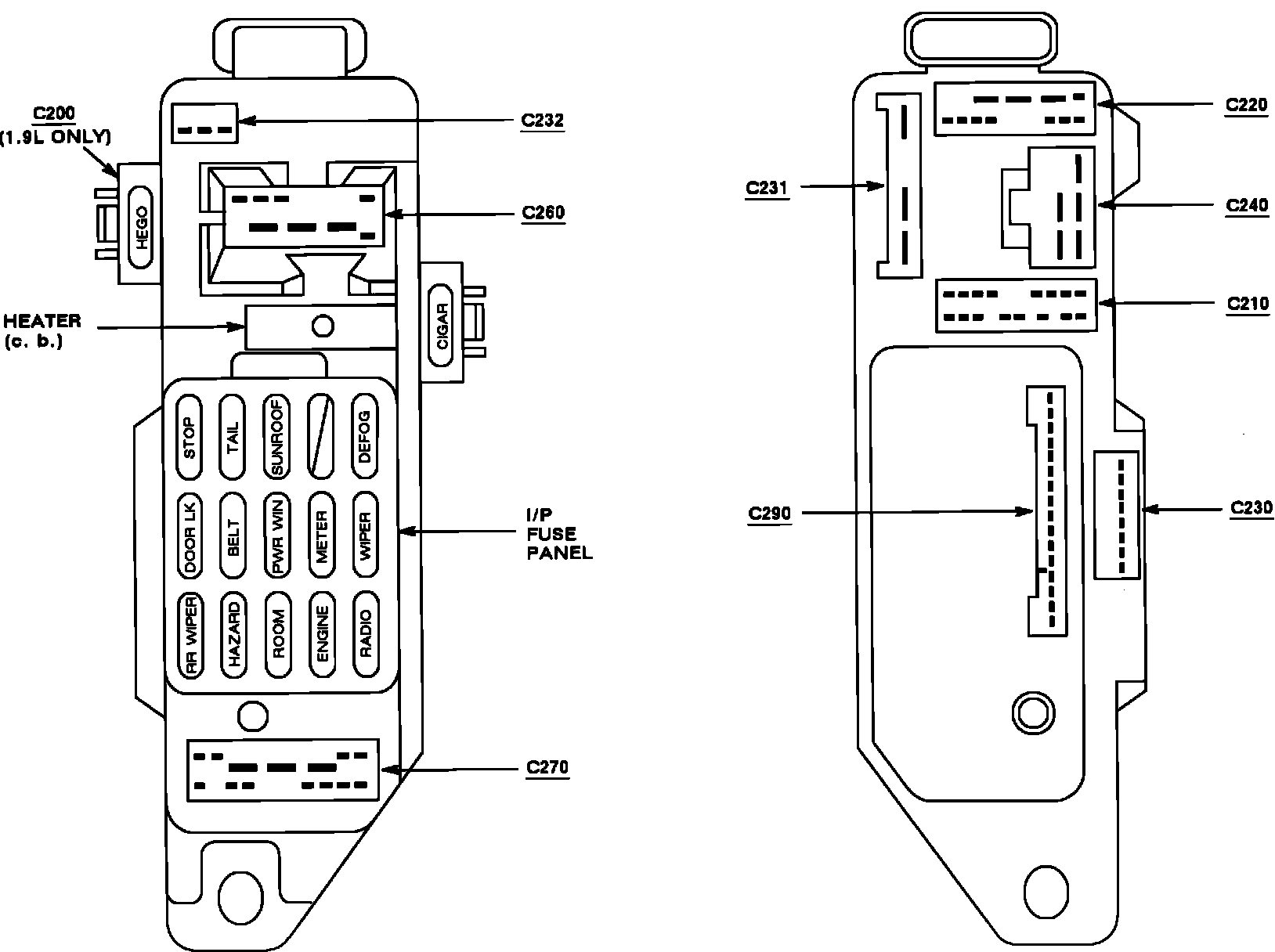

Instrument Panel Fuse Box
Instrument Panel Fuse Box

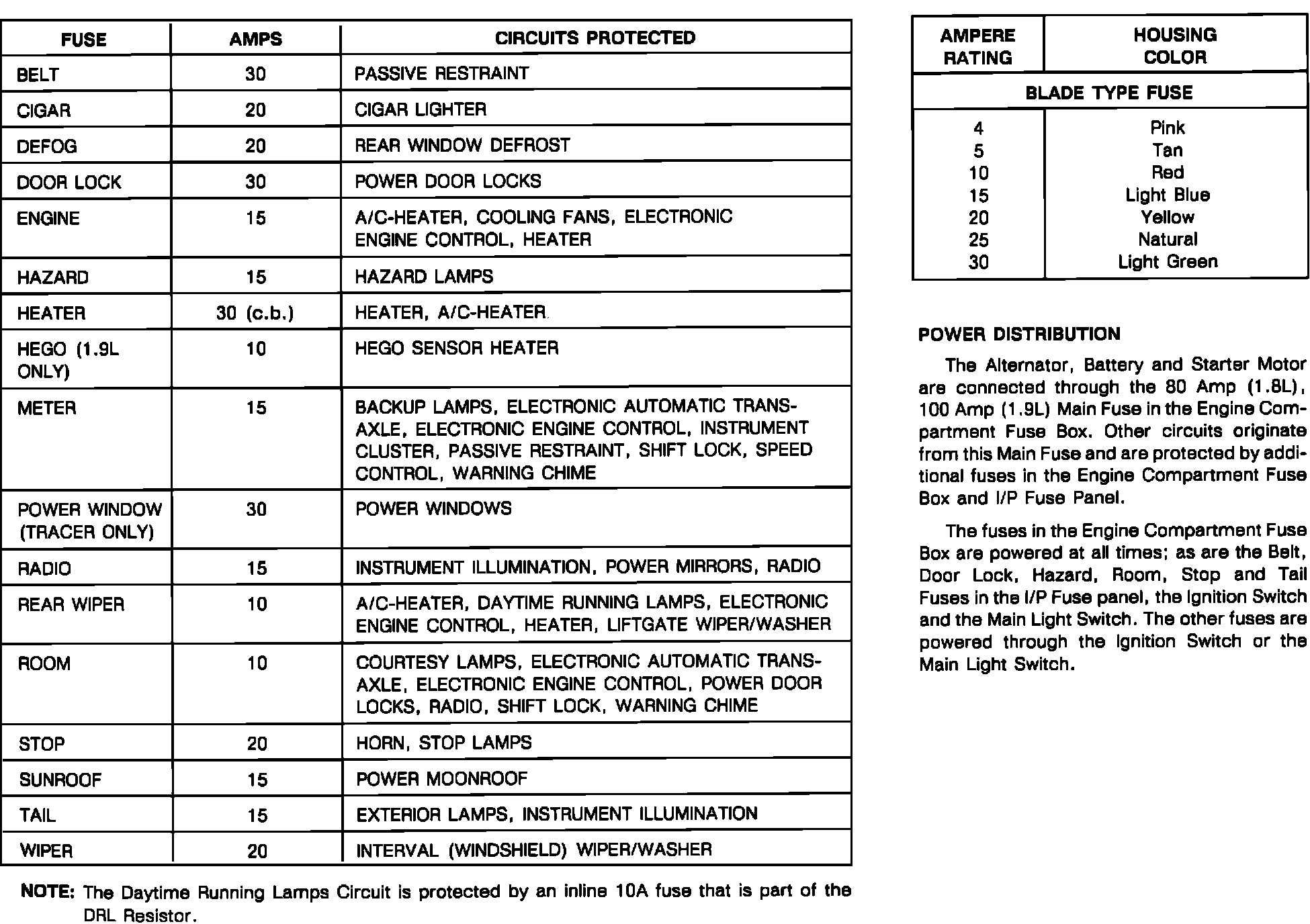

Instrument Panel Fuse box:
Instrument Panel Fuse box:
