A/T External Controls - Manual Revision

Article No.
91-14B-28

Date
July 22, 1991

SHOP MANUAL - 1991 - SECTION 07-05 - AUTOMATIC TRANSAXLE EXTERNAL CONTROLS - DIAGNOSTIC INFORMATION REVISED



FORD: 1991 ESCORT

LINCOLN-MERCURY: 1991 TRACER


ISSUE:
Automatic Transaxle External Controls Section 07-05 of the 1991 Escort/Tracer Shop Manual has been revised. Pages 07-05-5 and 6 are affected.

ACTION:
Refer to the pages in this TSB article for the updated information.



NOTE:
Refer to the 1991 Service Manual for complete diagnostic information.

OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
590000

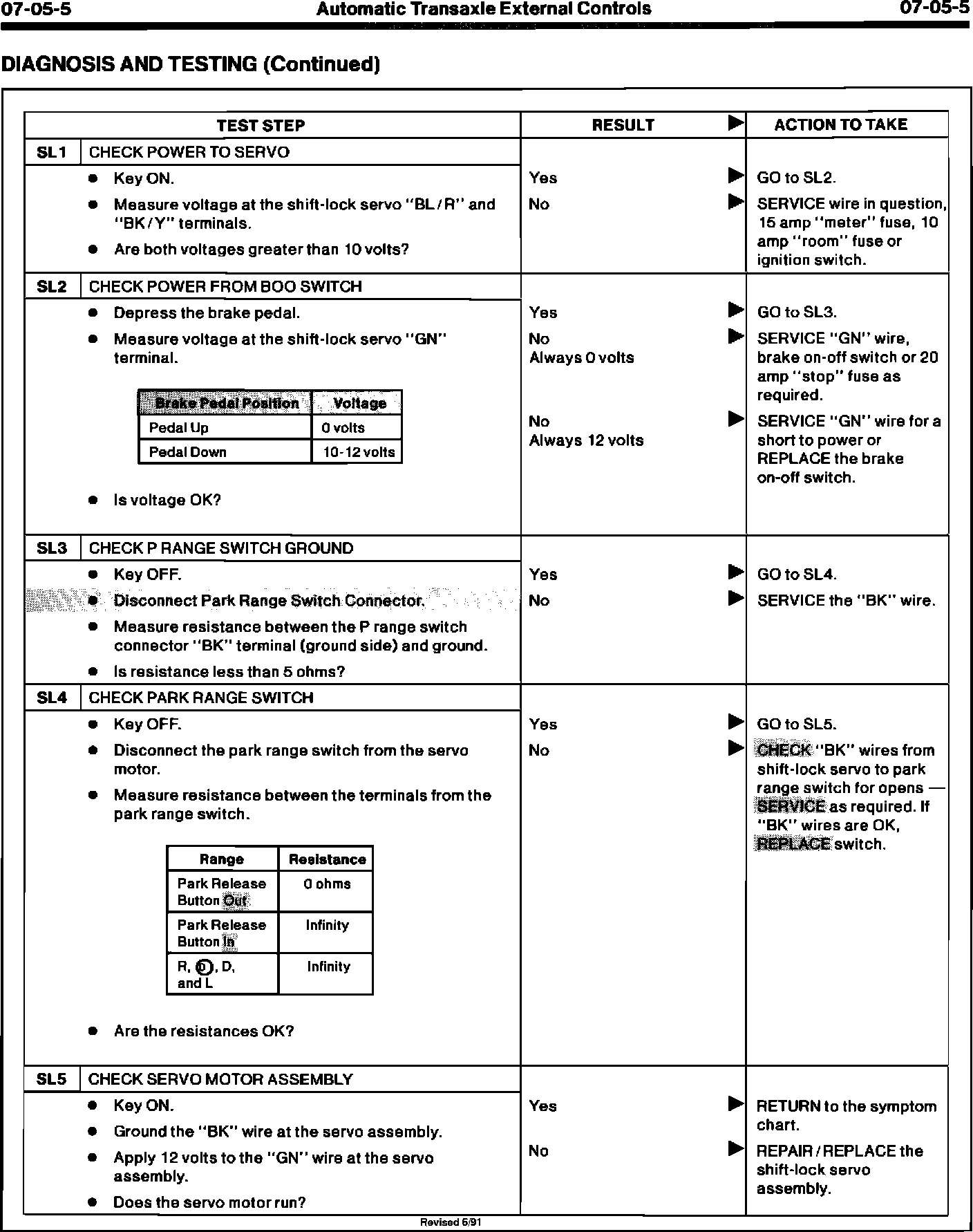

07-05-5 TEST STEP SL1 thru 5
