Home >> Ford >> 1991 >> LTD Wagon V8-351 5.8L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Locations

Cruise Control Servo: Locations

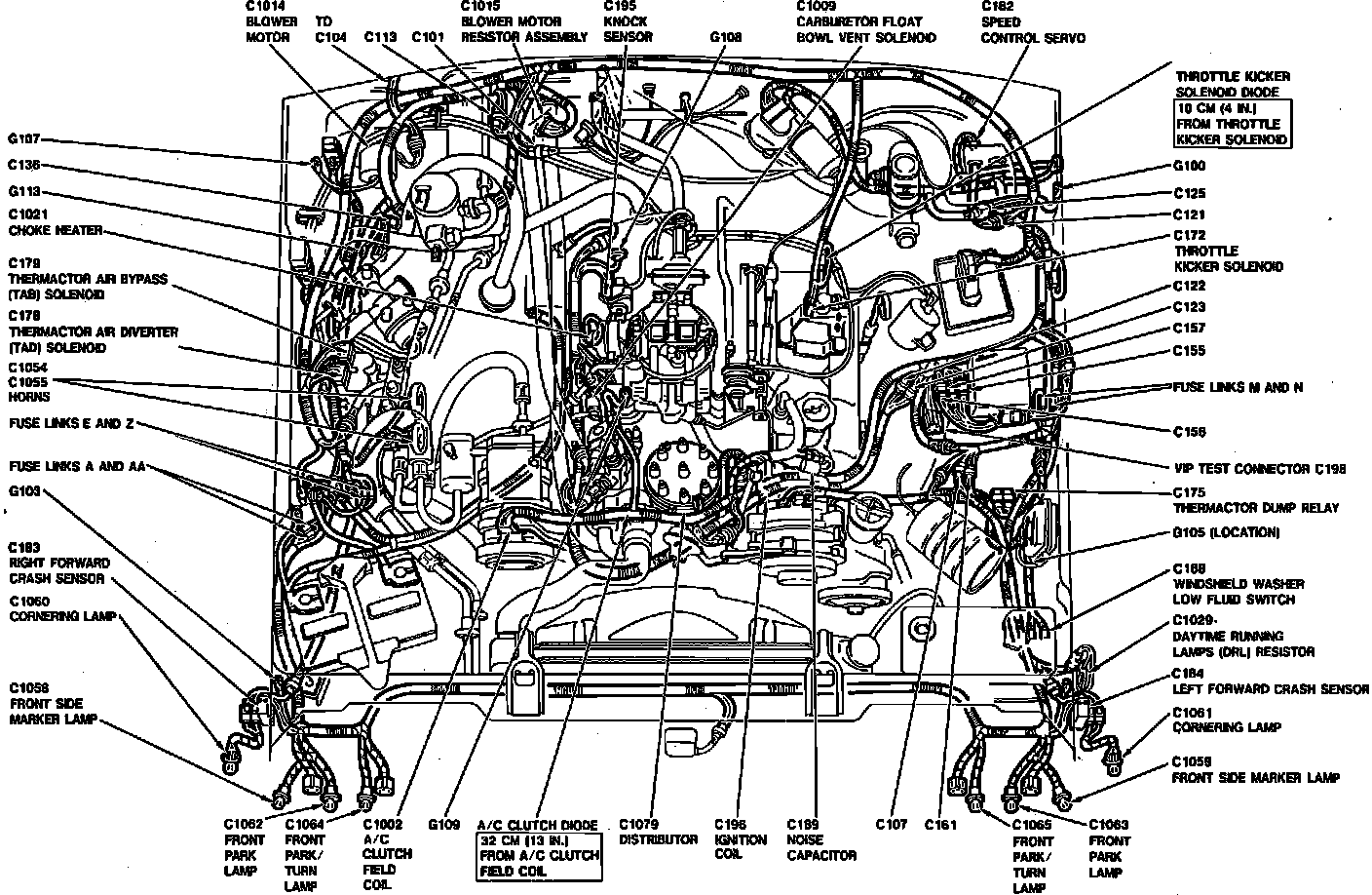

Engine Compartment.:




Rear LH Corner Of Engine Compartment

Applicable to: 1991 5.8L/V8-351
