Terminal Pinout Identification
Terminal Pinout Identification

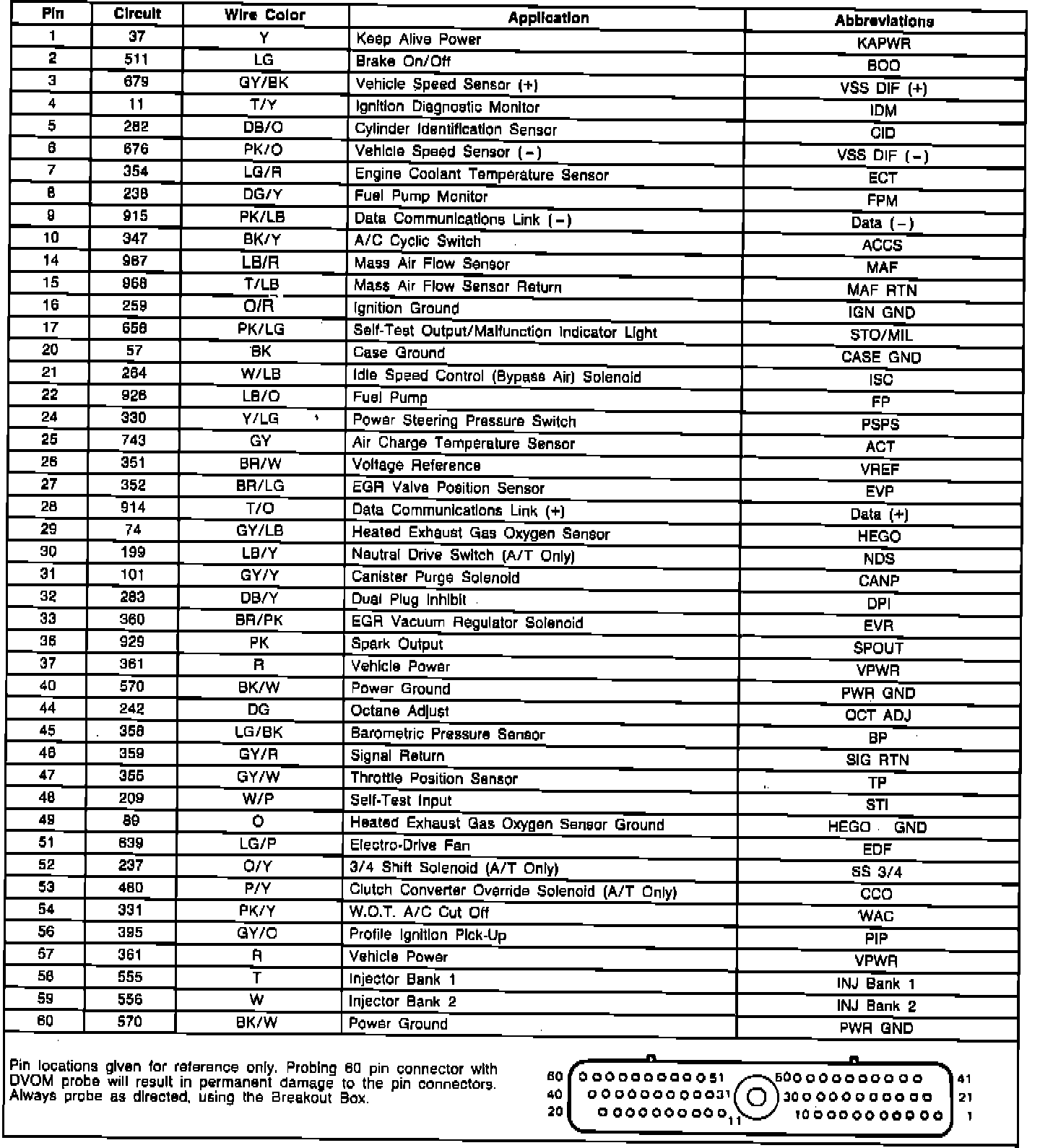

Electronic Control Assembly (ECA) Connector Pinout:
