Engine Compartment View

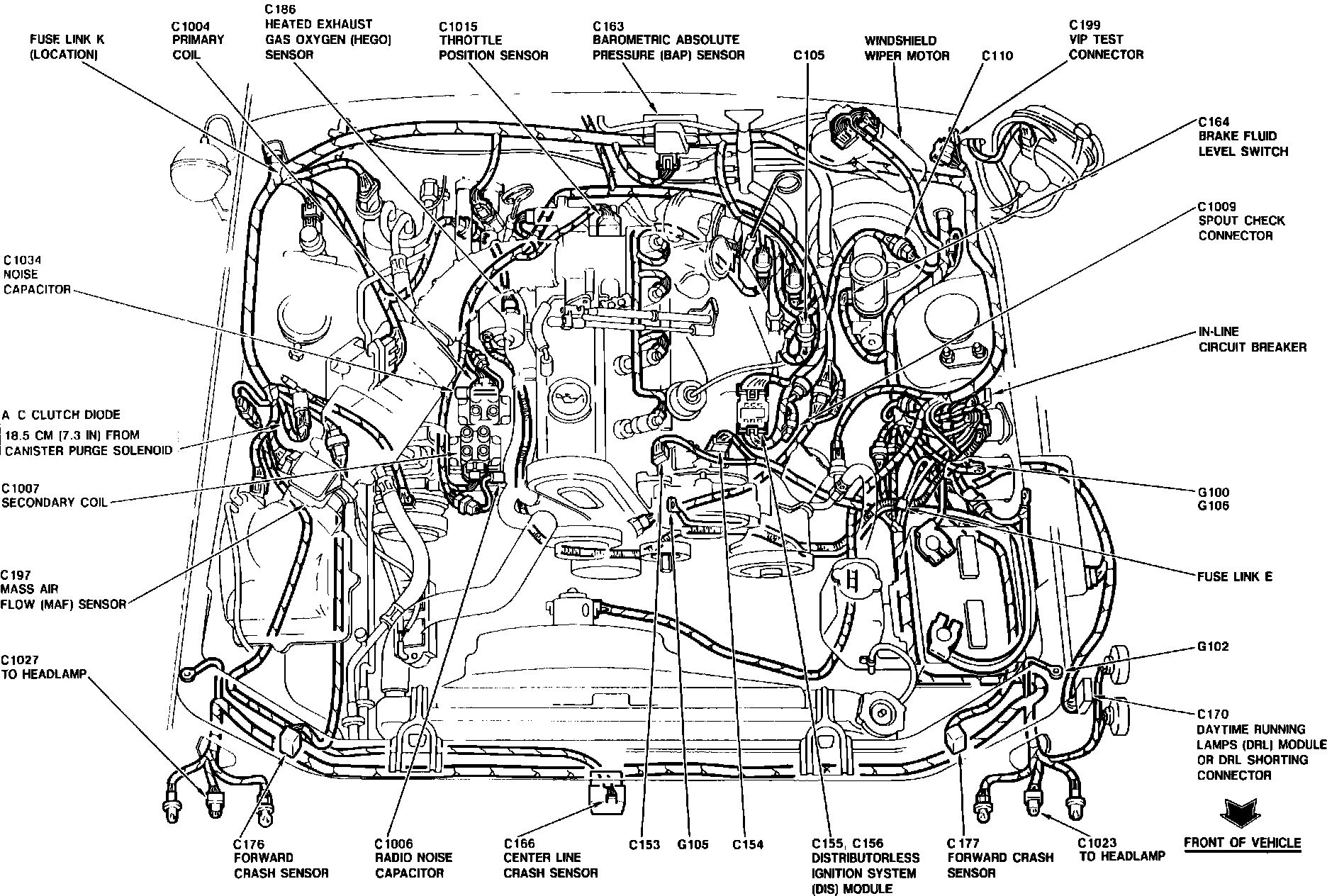

Engine Compartment Components:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH DIODE
BAROMETRIC ABSOLUTE PRESSURE SENSOR
BRAKE FLUID LEVEL SWITCH
CENTER LINE CRASH SENSOR
DAYTIME RUNNING LAMPS (DRL) MODULE
DISTRIBUTORLESS IGNITION SYSTEM (DIS) MODULE
DRL SHORTING CONNECTOR
FORWARD CRASH SENSOR
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
MASS AIR FLOW SENSOR
NOISE CAPACITOR
PRIMARY COIL
RADIO NOISE CAPACITOR
SECONDARY COIL
SPOUT CHECK CONNECTOR
THROTTLE POSITION SENSOR
VIP (DIAGNOSTIC) CONNECTOR

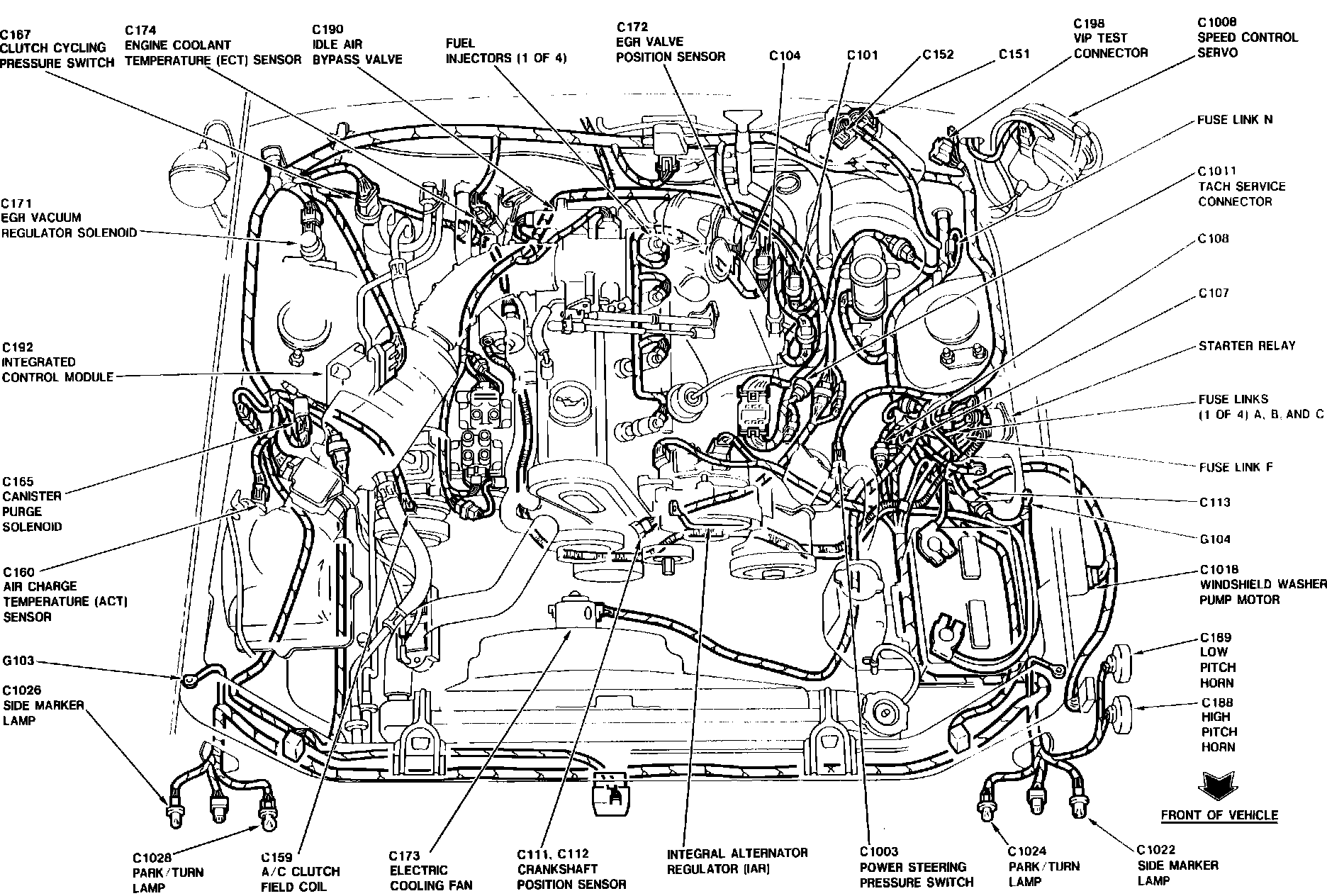

Engine Compartment Components:

AIR CHARGE TEMPERATURE (ACT) SENSOR
CANISTER PURGE SOLENOID
CLUTCH CYCLING PRESSURE SWITCH
CRANKSHAFT POSITION SENSOR
EGR VACUUM REGULATOR SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
IDLE AIR BYPASS VALVE
INTEGRAL ALTERNATOR REGULATOR
INTEGRATED RELAY CONTROL MODULE
POWER STEERING PRESSURE SWITCH
TACH SERVICE CONNECTOR
VIP (DIAGNOSTIC) CONNECTOR
