Home >> Ford >> 1991 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

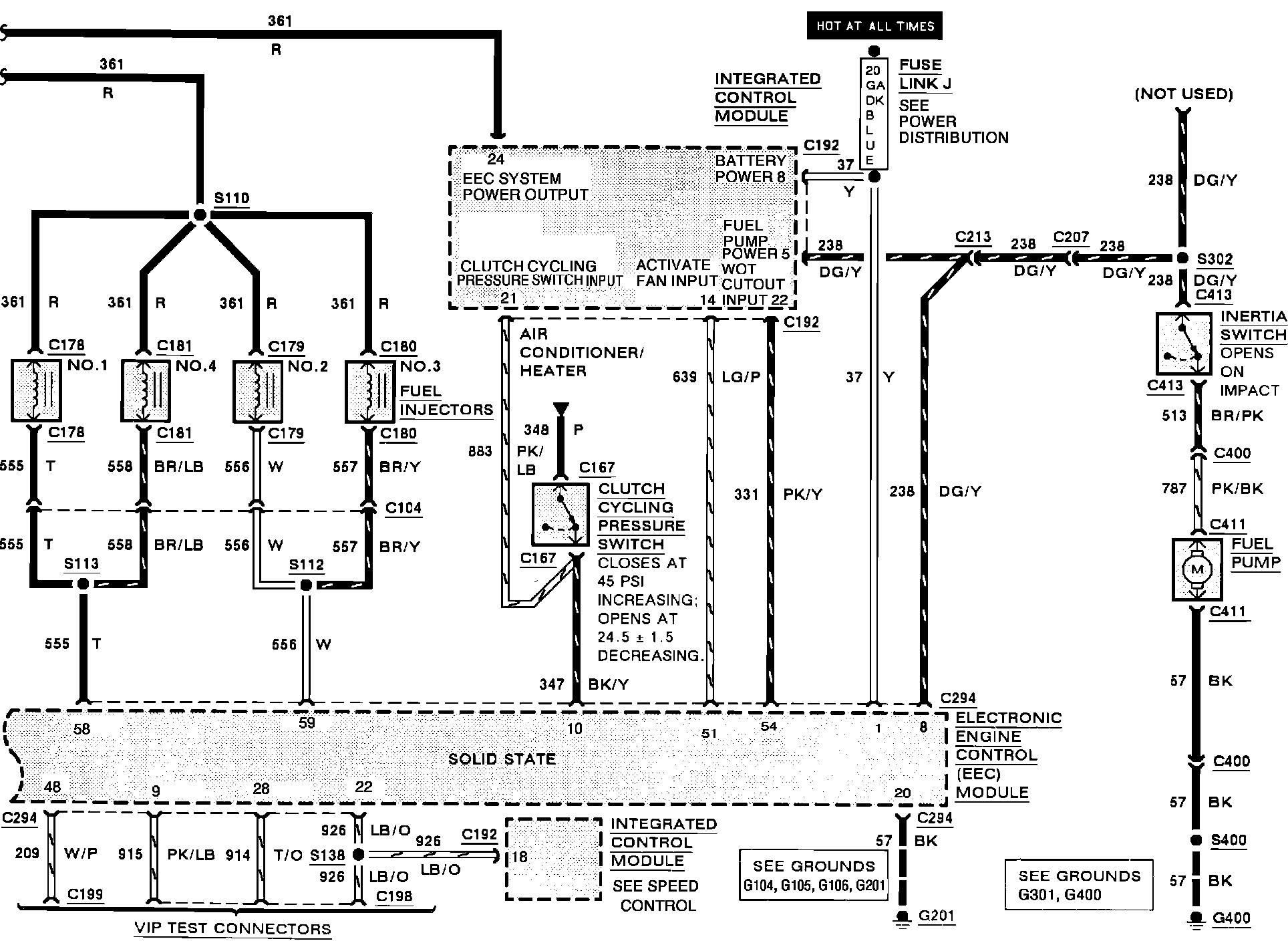

Electronic Engine Control (2.3L EFI):

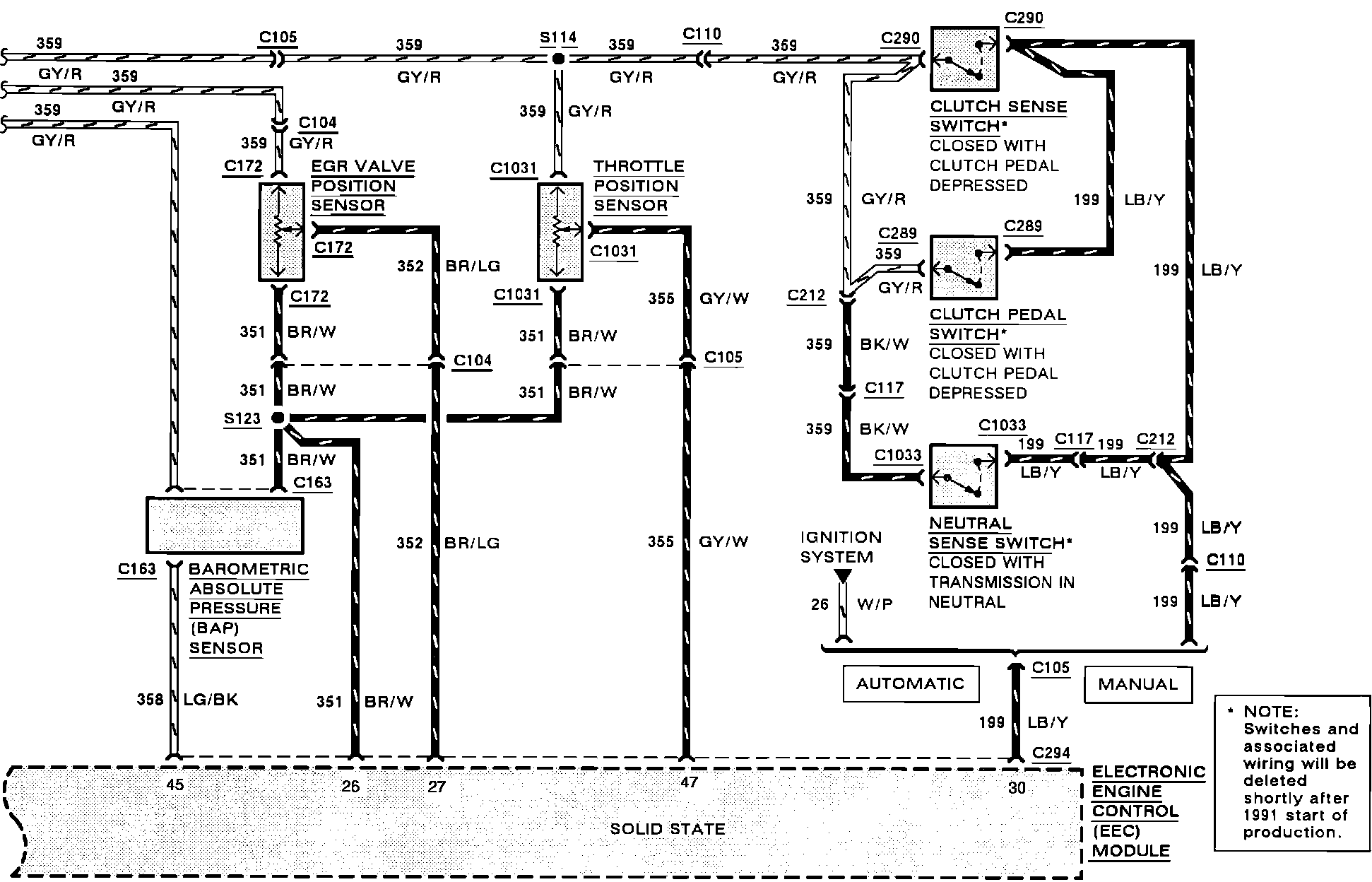

Electronic Engine Control (2.3L EFI):






Electronic Engine Control (2.3L EFI):






Electronic Engine Control (2.3L EFI):
