Test D - Continuous Memory Code 224
>>

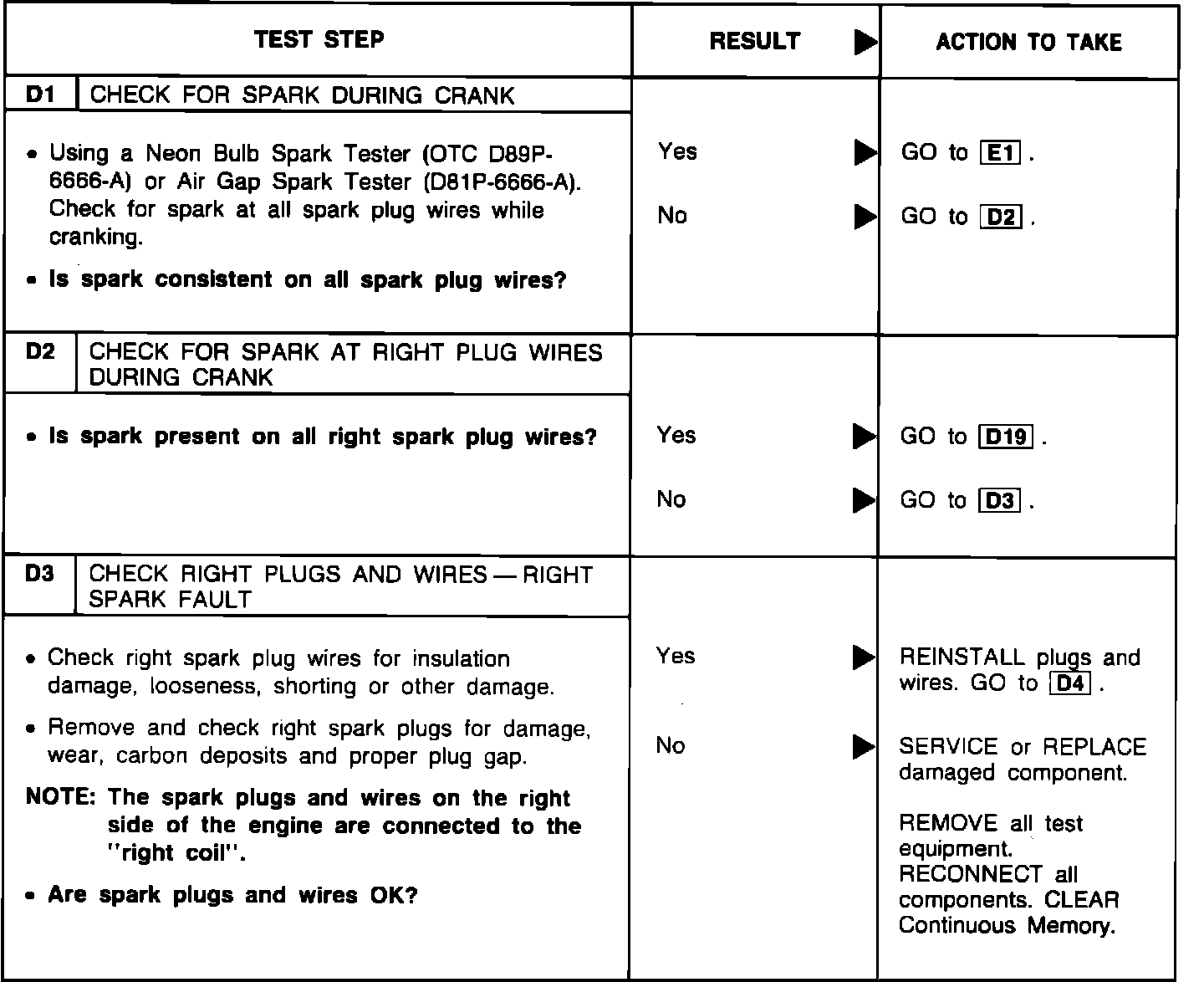

Steps D1 Thru D3
Steps D1 Thru D3
Distributorless Ignition System Pinpoint Test:
