Test D - Continuous Memory Code 224
>>
Steps D4 Thru D6
Steps D4 Thru D6

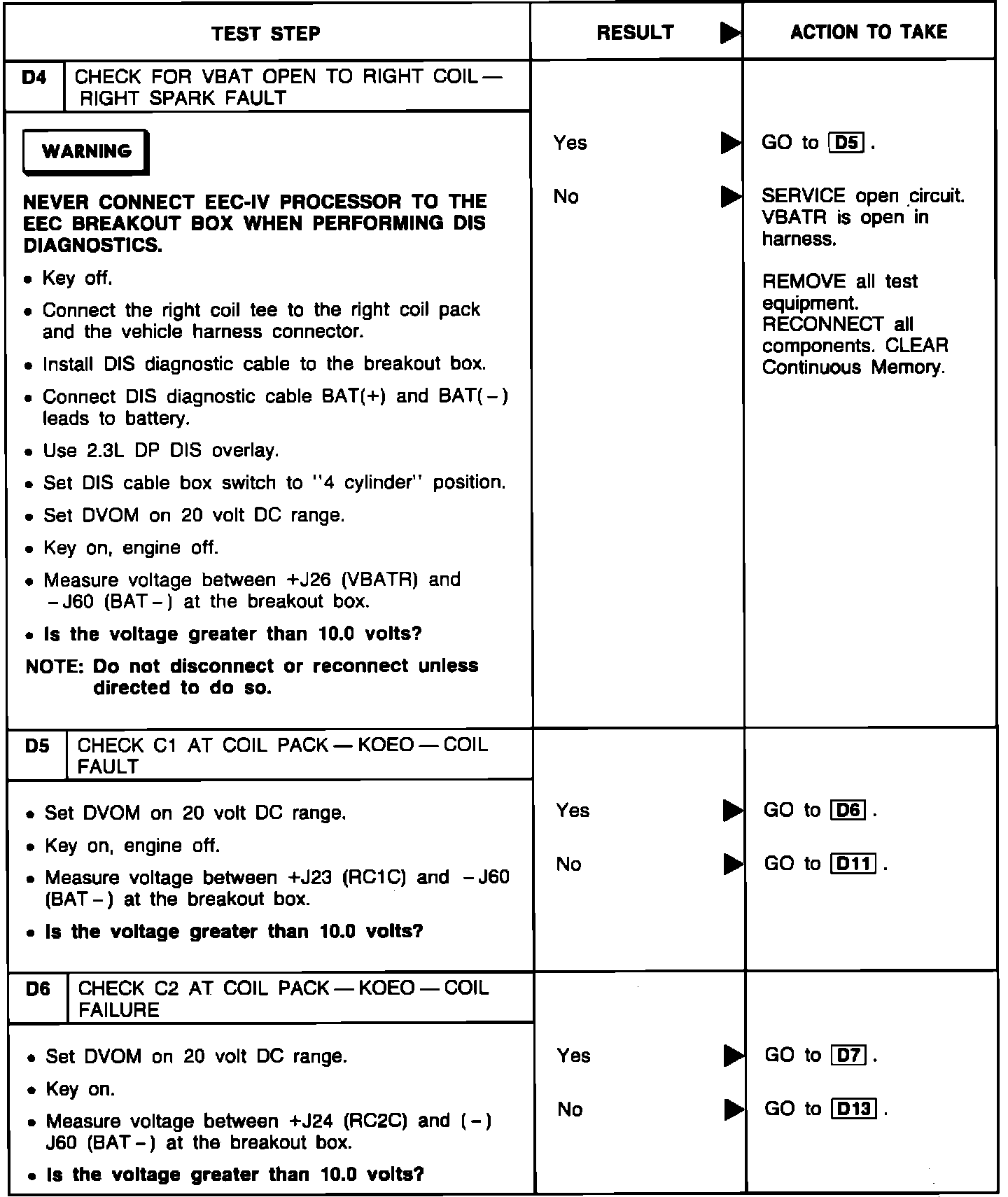

Distributorless Ignition System Pinpoint Test:
