Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1991
>>
Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
With Automatic Transmission
With Automatic Transmission

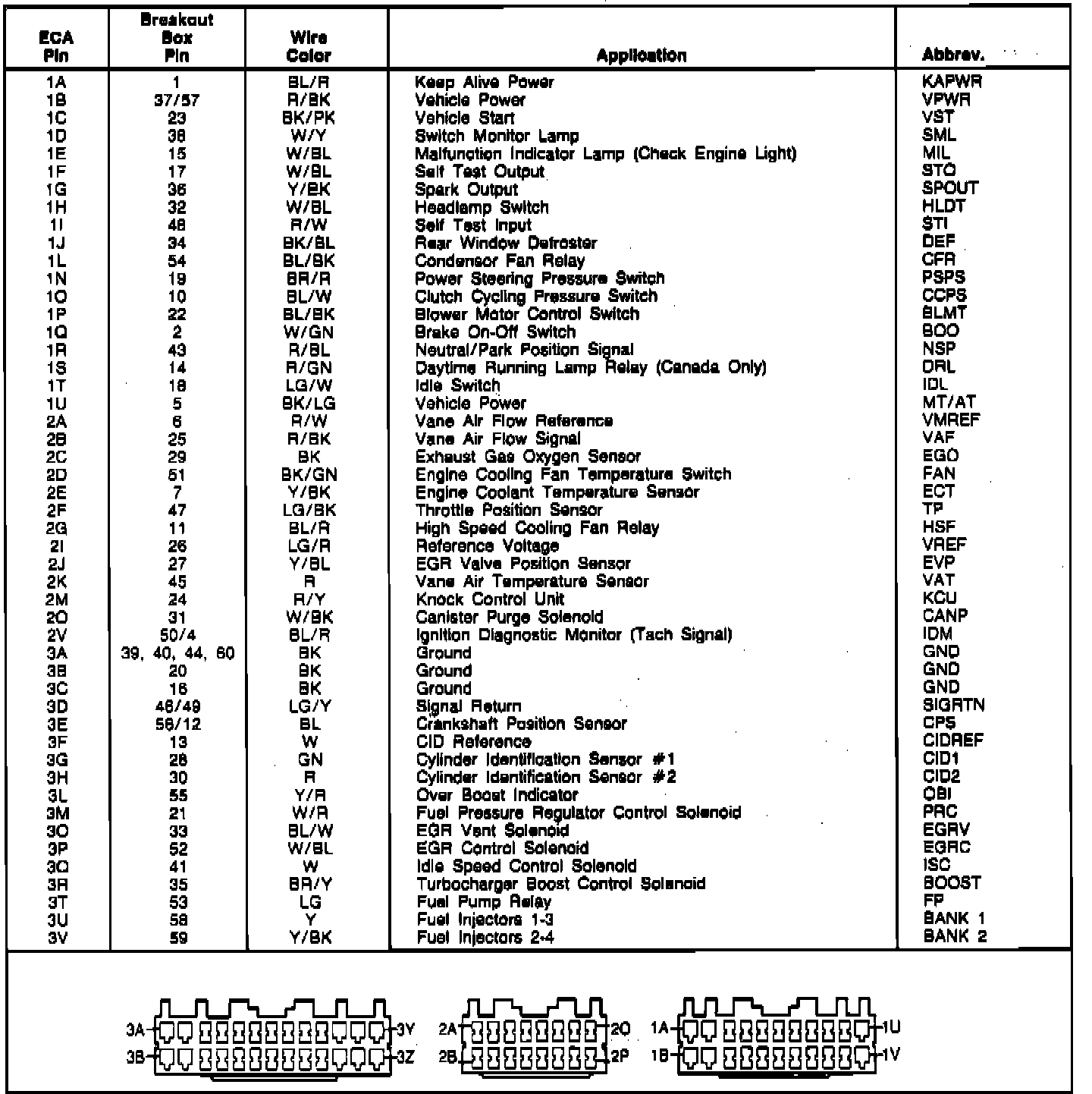

Electronic Control Assembly (ECA) Connector Pin Identification Turbo (ATX):
