Home
>>
Ford
>>
1991
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
System Diagram

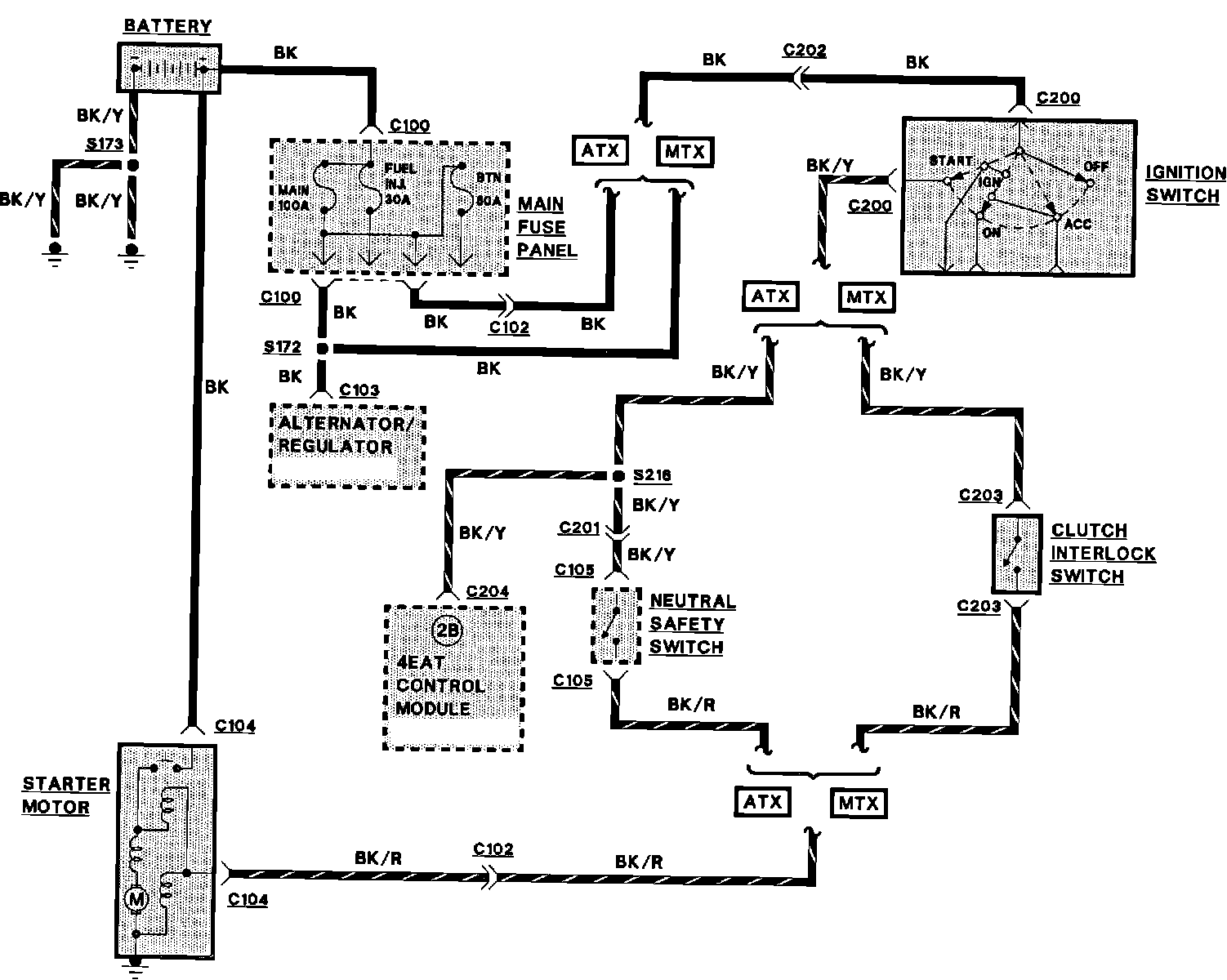

Starting System (GL):

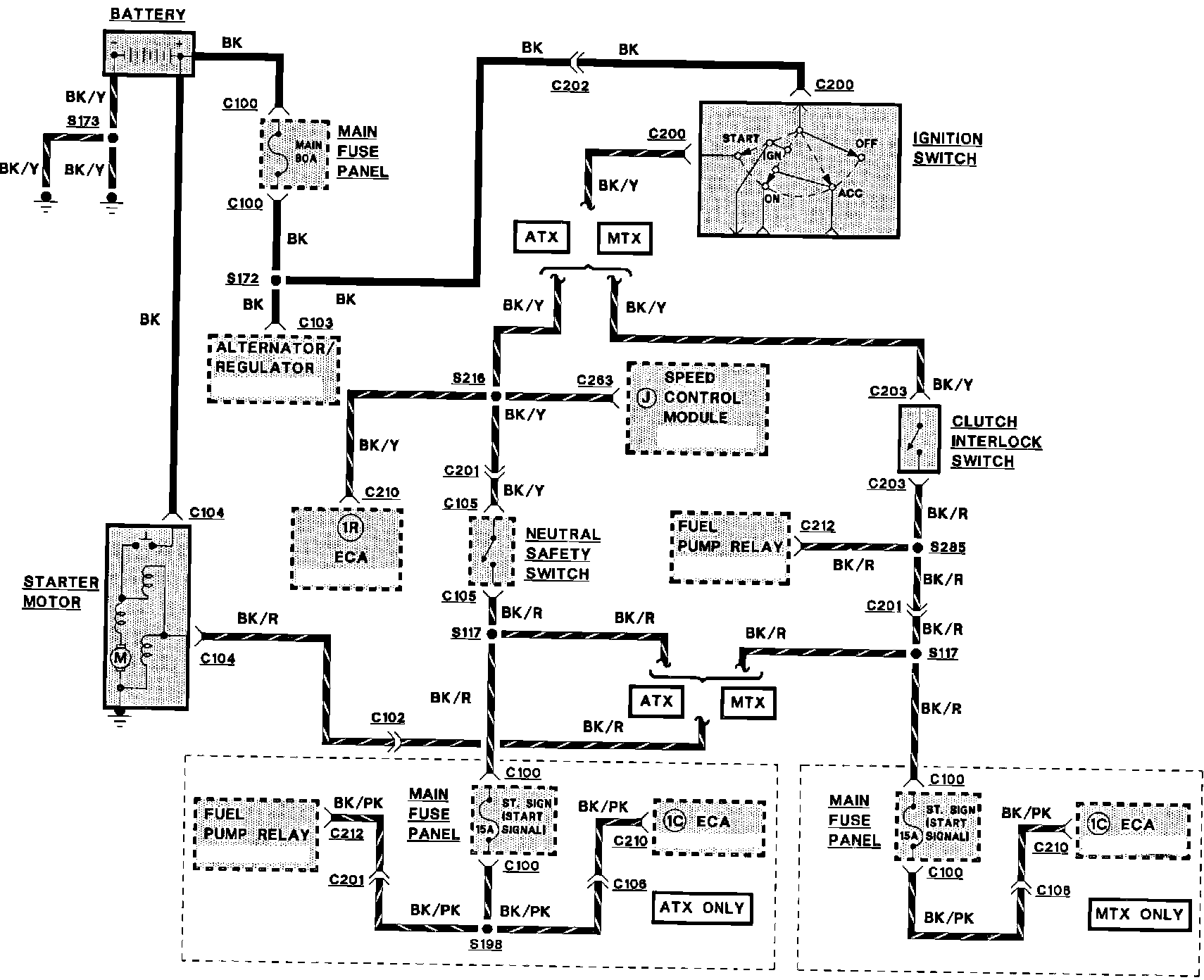

Starting System (LX):
