Home >> Ford >> 1991 >> Probe L4-133 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> LX

LX

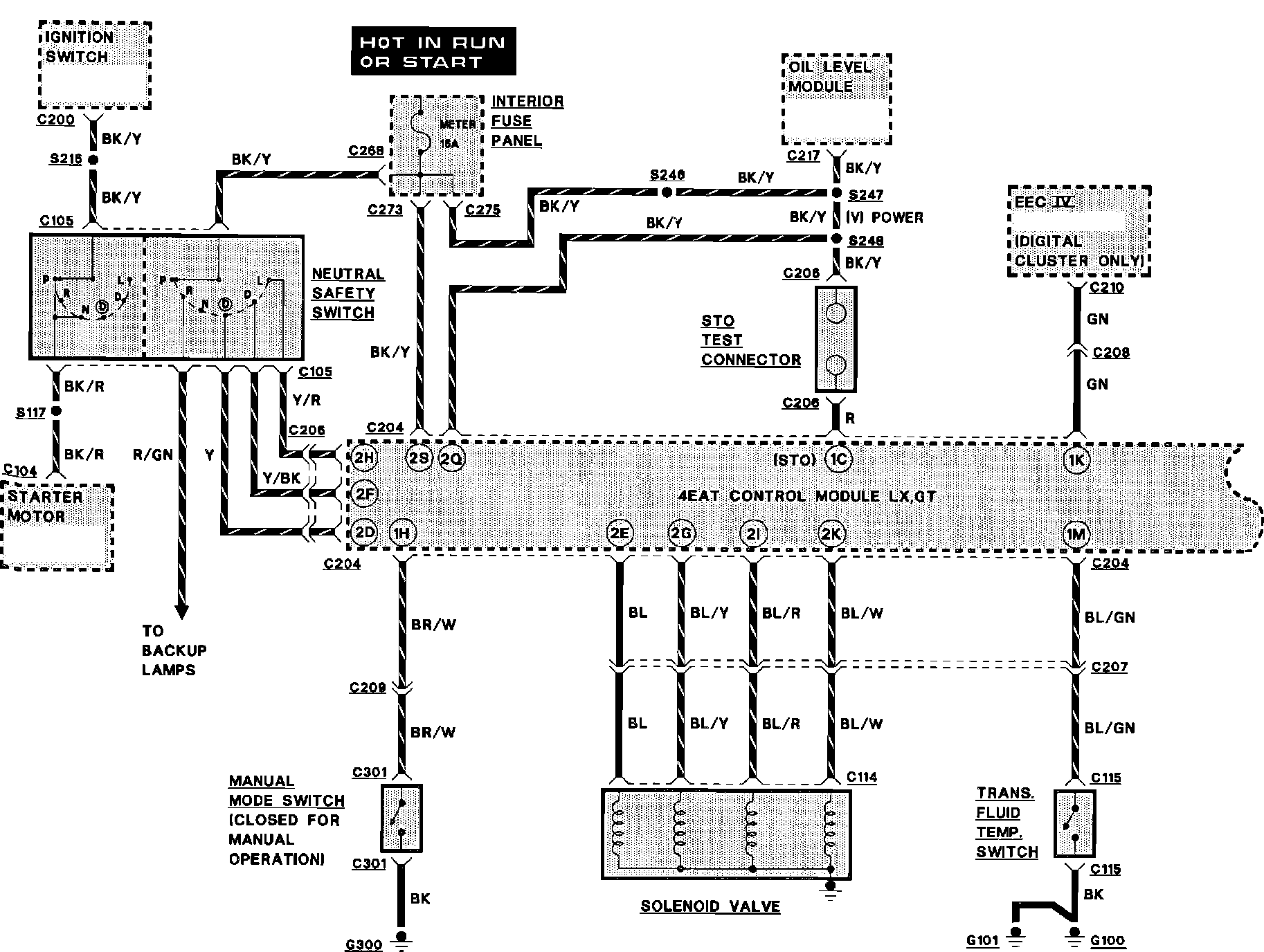

Transmission Controls (GT, LX):

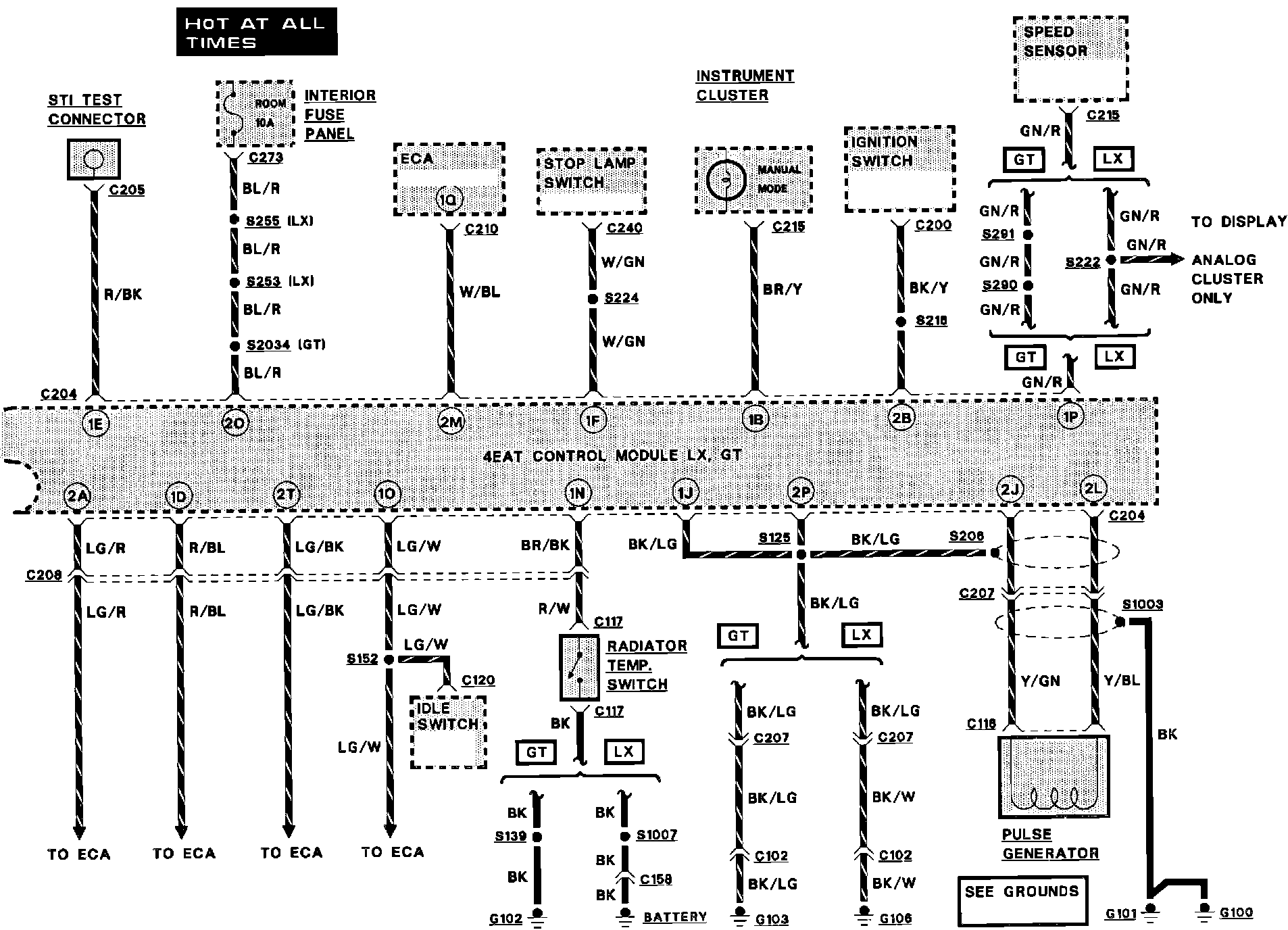

Transmission Controls (GT, LX):
