Engine Control Systems - Diagnosis Revision
>>
EEC Pinpoint Test - All Engines
>>
Vehicle Power - All Engines
>>

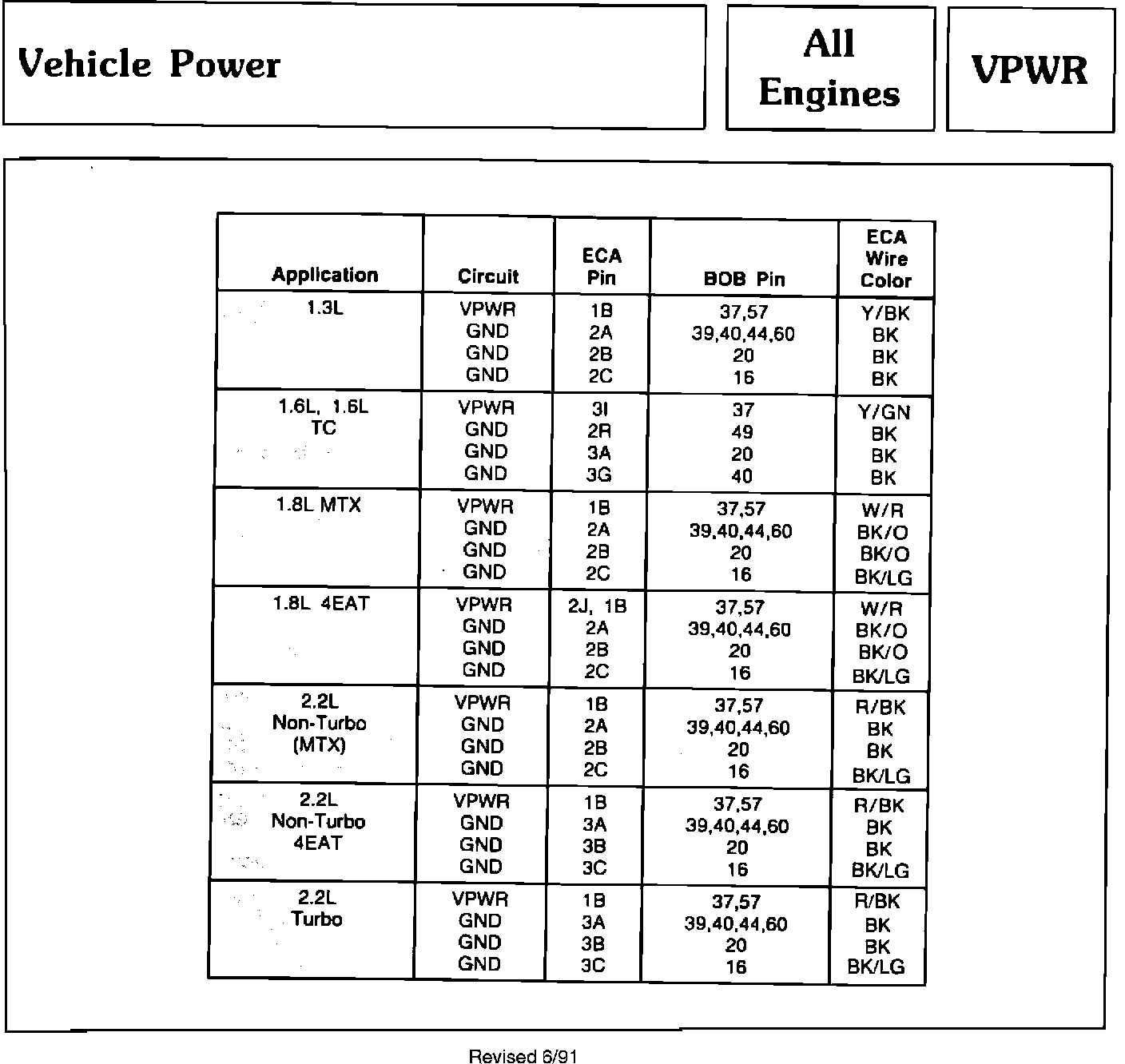

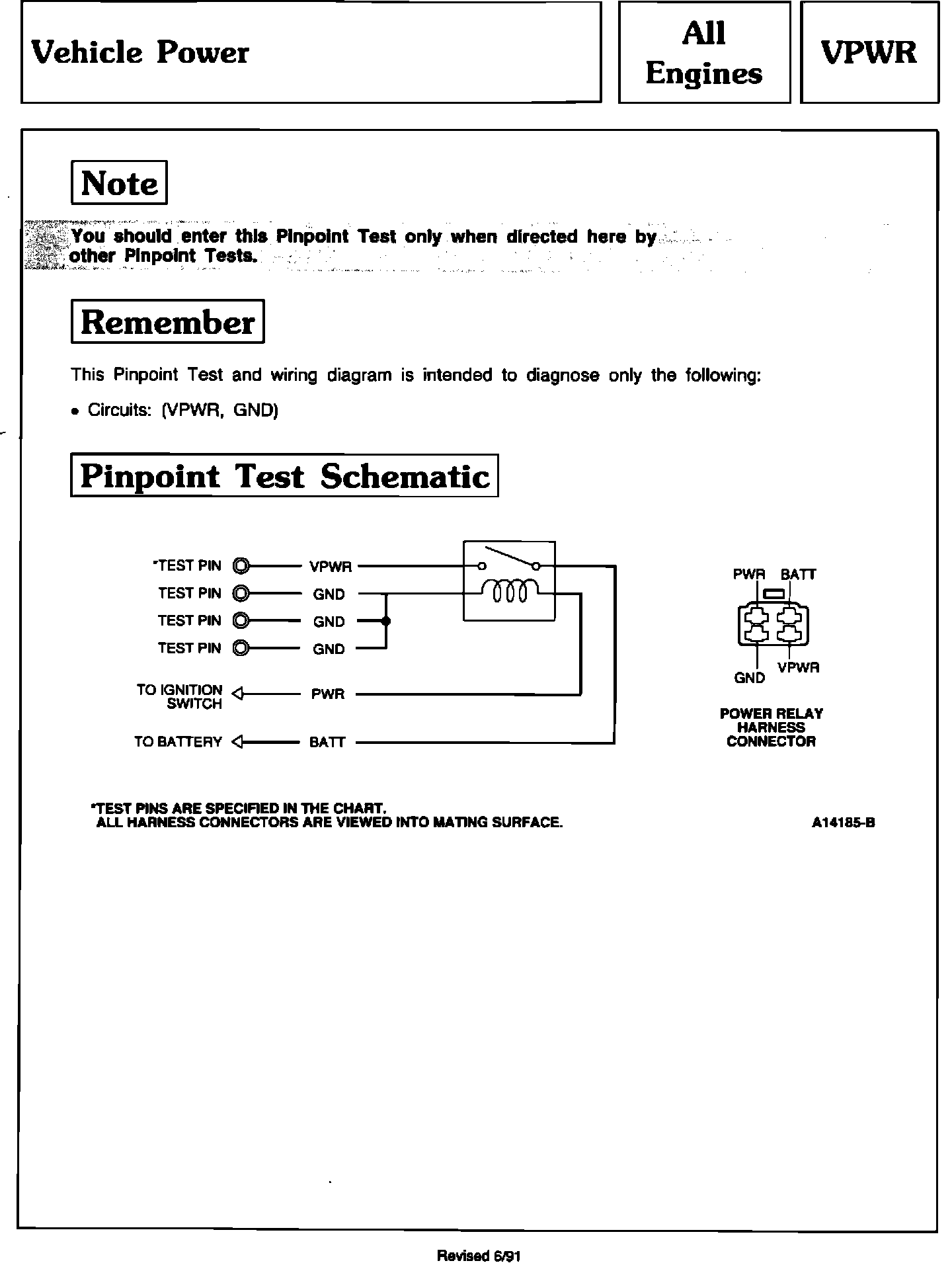

Note, Pinpoint Test Schematic, Connector Pin I.D.
Note, Pinpoint Test Schematic, Connector Pin I.D.
