Home >> Ford >> 1991 >> Tempo AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values (Includes PIDs) >> Diagnostic Reference Values >> Automatic Transmission >> VIN S

VIN S

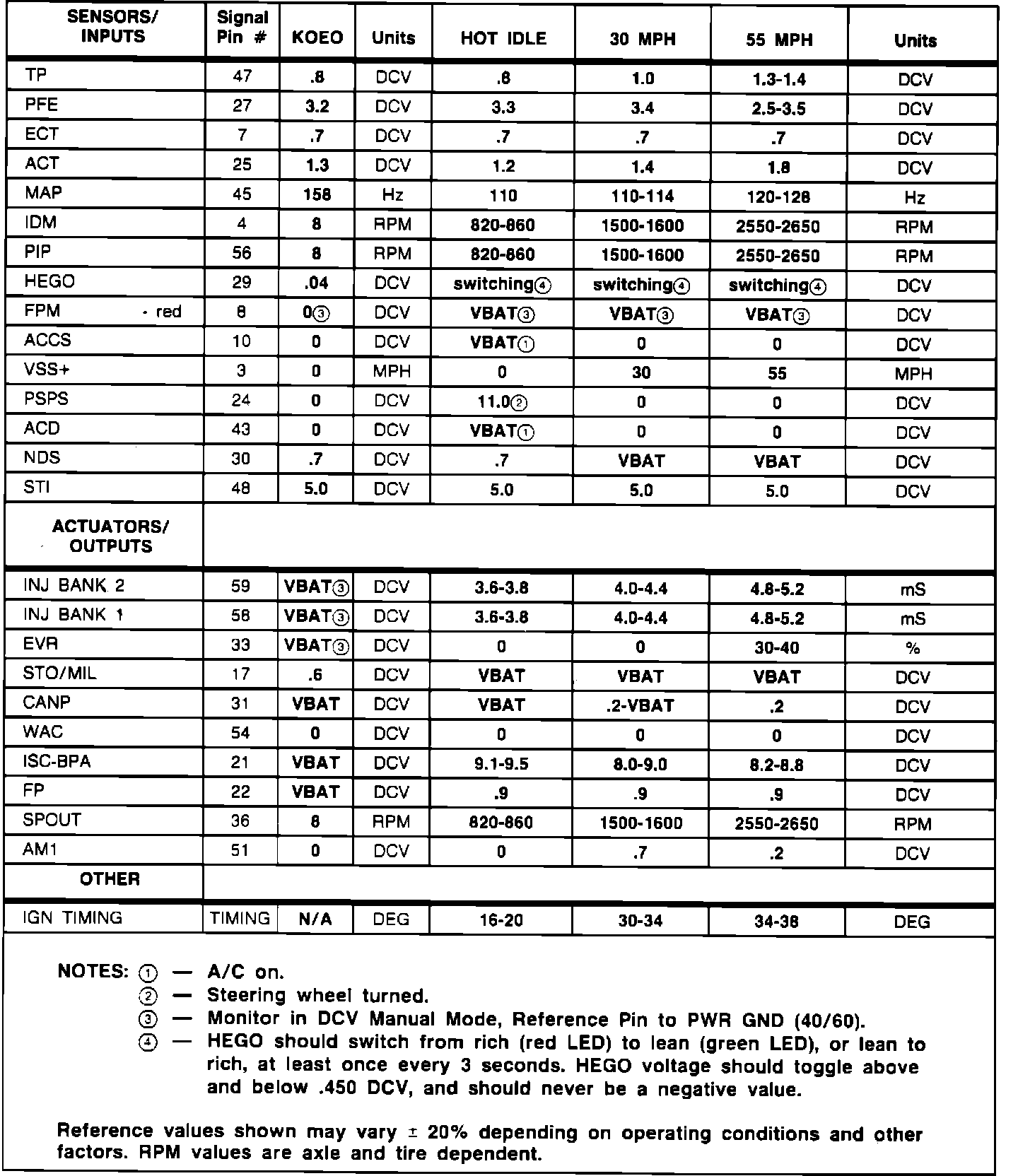

Diagnostic Reference Values:
